Vibratory Screening Machine

Product description

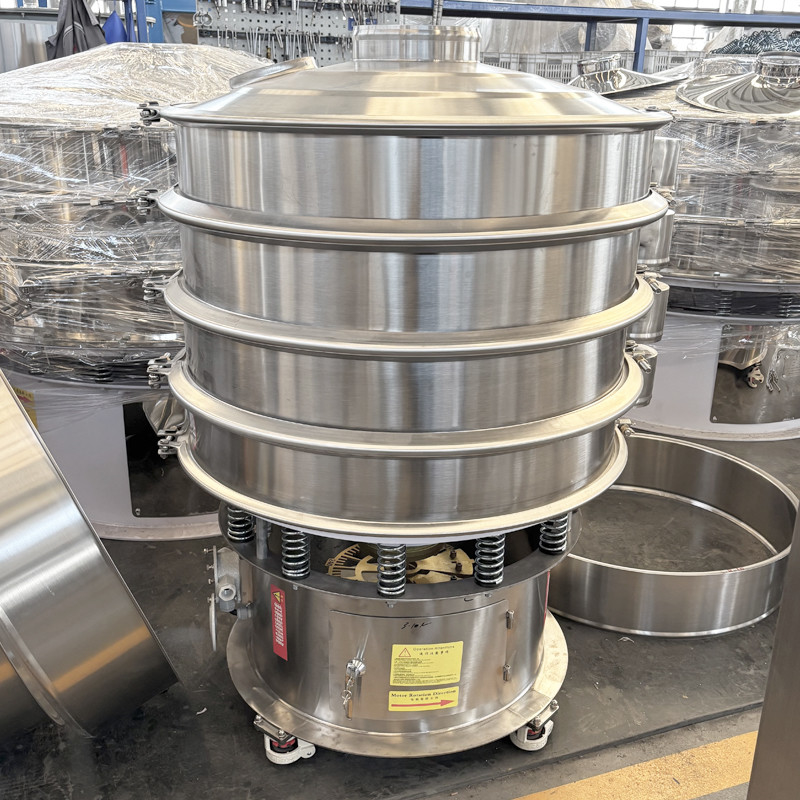

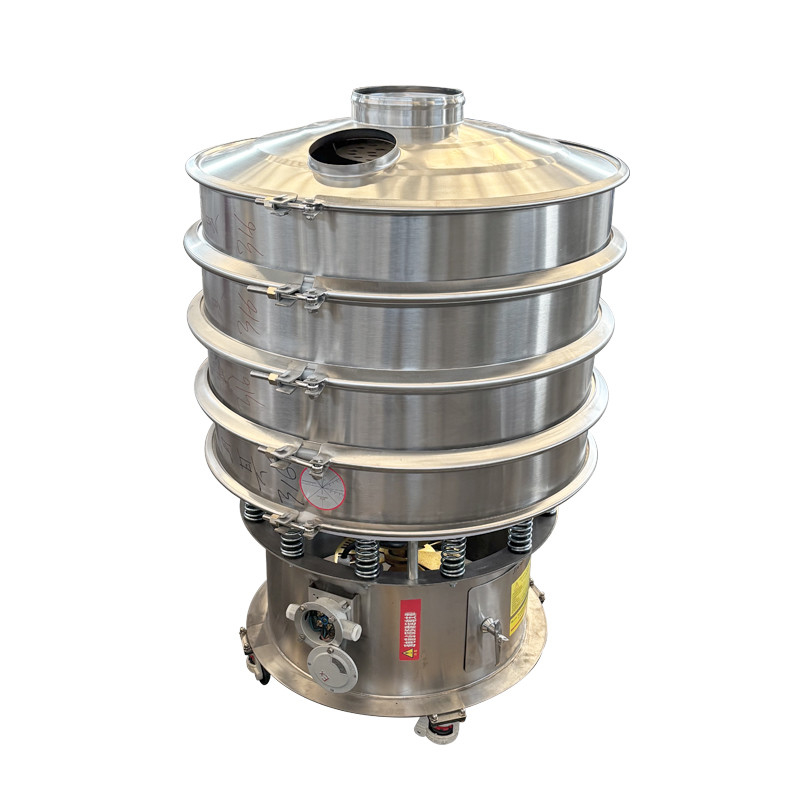

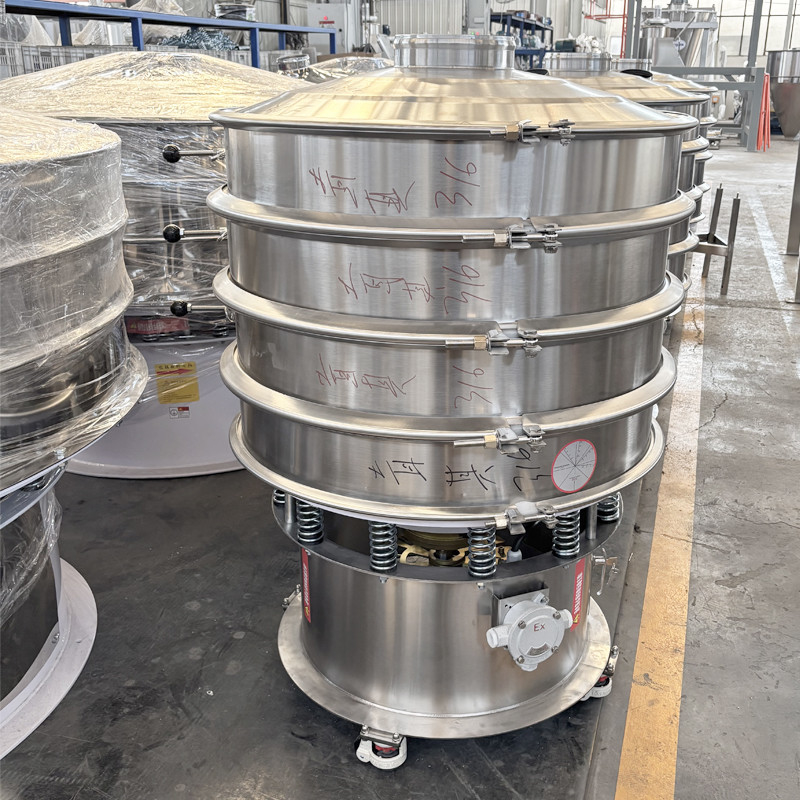

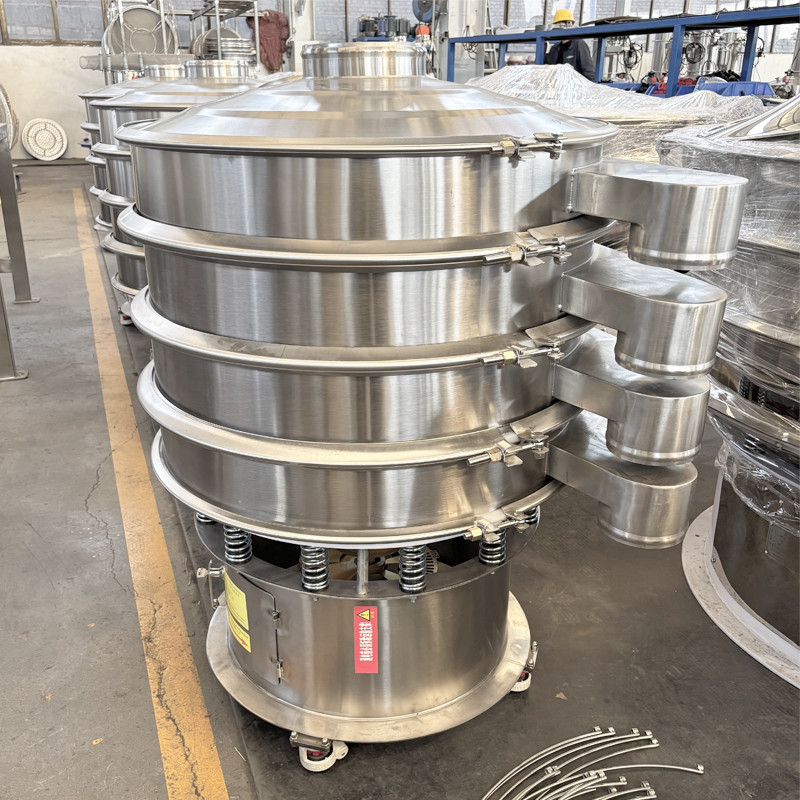

Rotary vibrating screen, as an efficient screening equipment, plays a key role in many industries. It is mainly composed of screen frame, vibrator, screen and shock absorber. When working, the upright motor is used as the excitation source, and the eccentric weight at both ends of the motor cleverly transforms the rotating motion into horizontal, vertical and inclined three-dimensional motion, which is transmitted to the screen surface. By adjusting the phase Angle, the material movement trajectory can be accurately controlled.

Working principle
Rotary vibrating screen is commonly used screening equipment, which is composed of screen frame, vibrator, screen mesh and shock absorber. It takes the upright motor as the excitation source, and the eccentric weight at the upper and lower end of the motor generates centrifugal force when rotating, which converts the rotating motion of the motor into horizontal, vertical and inclined three-dimensional motion, and transmits it to the screen surface. By adjusting the phase Angle of the eccentric weight, the movement path of the material on the screen surface can be changed, and the material can be fully contacted with the screen to achieve efficient screening.

The equipment has high screening efficiency, can handle powder, particles, mucus and other materials, the accuracy of 500 mesh or 0.028mm, the screen is not easy to block. It is convenient to change the network, and it can be completed in 3-5 minutes by using the sub-parent network frame. Fully closed design to avoid material flying and impurities mixed, and equipment stable operation, small size, light weight, easy to move, discharge port direction can be flexibly adjusted, widely used in chemical, food, mining and other fields.

Features & Benefits

High screening efficiency: It can quickly handle powder, particles and mucus materials to ensure efficient operation.

High screening accuracy: accuracy up to 500 mesh (0.028mm), to meet the requirements of high material fineness industry.

Screen is not easy to clog: reduce downtime and cleaning time to ensure continuous production.

Convenient network change: The use of mother-and-child network frame, 3-5 minutes to complete the screen replacement, improve maintenance efficiency.

Fully enclosed structure: avoid material flying, prevent dust pollution of the environment, and eliminate external impurities from mixing with the material.

Easy to move and flexible discharge port: small size, light weight, easy to adjust the position in the workshop or transfer in different sites; Discharge port direction can be adjusted as needed to adapt to a variety of production line layouts.
