| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | HYZT |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Features: | Easy To Install And Maintain | Bucket Material: | Plastic |
|---|---|---|---|
| Capacity: | Varies Depending On Model | Conveyor Length: | Customizable |
| Safety Features: | Emergency Stop Button, Safety Switch | Speed: | Adjustable |
| Bucket Capacity: | 1-5L | Belt Width: | Customizable |
| Warranty: | 1 Year | Model: | Z Type |
| Application: | Food, Pharmaceutical, Chemical, And Other Industries | Structure: | Inclined Conveyor |
| Customization: | Available | ||
| Highlight: | Powder vertical conveying equipment |
||
Product description
Z-type elevator in the industrial production to bear the key material conveying responsibility. With its Z-shaped structure, it cleverly integrates horizontal, inclined and vertical conveying links, greatly saving space and adapting to the limited working environment. When running, the motor drives the bucket belt, the bottom bucket scoops the material, climbs along the Z-shaped channel, and discharges the material by centrifugal force to the top. It is highly inclusive to the material, whether it is grain particles, or cement powder can be properly transported. Moreover, the conveying capacity can be adjusted according to demand, good sealing, prevent material leakage, smooth and quiet operation, simple maintenance, widely used in grain storage, building materials processing and other fields, laying a solid foundation for efficient production in various industries.
Working principle
When the Z-type hoist is working, the motor starts first, drives the drive shaft to operate, and drives the circular movement of the bucket belt around it. The bucket at the bottom of the hoist will penetrate deep into the material pile during operation. Due to the unique shape and operation situation of the bucket, it can scoop or scrape materials efficiently.
The bucket filled with material rises along the Z-shaped track with the bucket belt. When passing through the curve, the material will not be spilled by centrifugal force and its own gravity. When the bucket reaches the top discharge port, the direction of movement changes, and the material is poured out of the bucket by the combined action of centrifugal force and gravity, and falls into the designated position through the discharge port. This cycle continues to complete the stable transport of materials from low to high, horizontal and vertical directions.
Product characteristics
1. Unique layout: The Z-shaped structure of the Z-type elevator enables it to achieve a combination of horizontal, inclined and vertical conveying in a limited space, which is especially suitable for use in places with narrow sites and limited space.
2. Smooth conveying: During the conveying process of the Z-type hoist, the movement of the materials in the bucket is relatively smooth, especially at the corner. Through reasonable design, the impact and sprinkling of the materials can be effectively reduced.
3. A variety of material adaptation: more adaptability to the shape and characteristics of the material, whether it is granular, powdered or small block materials can be well transported. Compared with the blockage problems that may occur when the screw elevator transponds materials with large viscosity or high humidity, the Z-type elevator is less affected by the characteristics of the material.
4. Low noise operation: The operation of the Z-type elevator is relatively quiet, due to its structural design and movement mode, the noise generated during the operation is low, which can provide quieter conditions for the working environment, which is conducive to improving the working environment and reducing noise pollution.
5. Easy maintenance: The structure is relatively simple, the installation and disassembly of the main components such as the bucket and the bucket belt are more convenient, the daily inspection and maintenance work is easy, the maintenance cost is low, and there is no need to spend a lot of time and energy on disassembly and assembly during maintenance.
6. Efficient conveying: Through the reasonable configuration of the drive device and bucket specifications, the Z-type elevator can achieve higher conveying capacity and lifting height, which can meet the needs of different production scales. On some large production lines, the Z-type elevator can play its unique advantages to improve the efficiency of the entire conveying system.
7. Continuous conveying: continuous and stable material conveying can be achieved to ensure the continuity of the production process, and the Z-type elevator can carry out material upgrading without interruption, which helps to improve production efficiency and the stability of product quality.
| Model | HYZT-2L | HYZT-3L | HYZT-5L | HYZT-7L | HYZT-10L |
| Capacity | 0-6m3/h | 0-8m3/h | 0-12m3/h | 0-15m3/h | 0-20m3/h |
| Bucket Volume | 2L | 3L | 5L | 7L | 10L |
| No.s of discharge port | Single | Single or Muti-discharge port | |||
| Lifting Height | Up To 50m | Up To 50m | Up To 50m | Up To 50m | Up To 50m |
| Power | 0.75-22KW | 0.75-22KW | 0.75-22KW | 0.75-22KW | 0.75-22KW |
| Voltage | As per order | ||||
| Construction materials | Carbon steel, SS304/316 | ||||
| Bucket materials | Food grade PP or ABS, SS304/316, Carbon steel | ||||

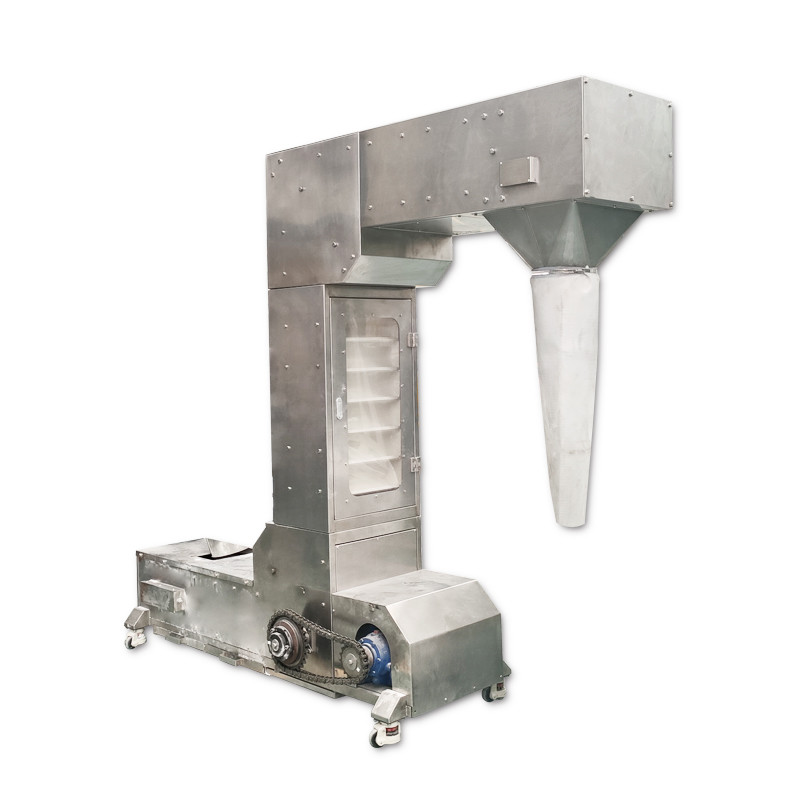

Product details

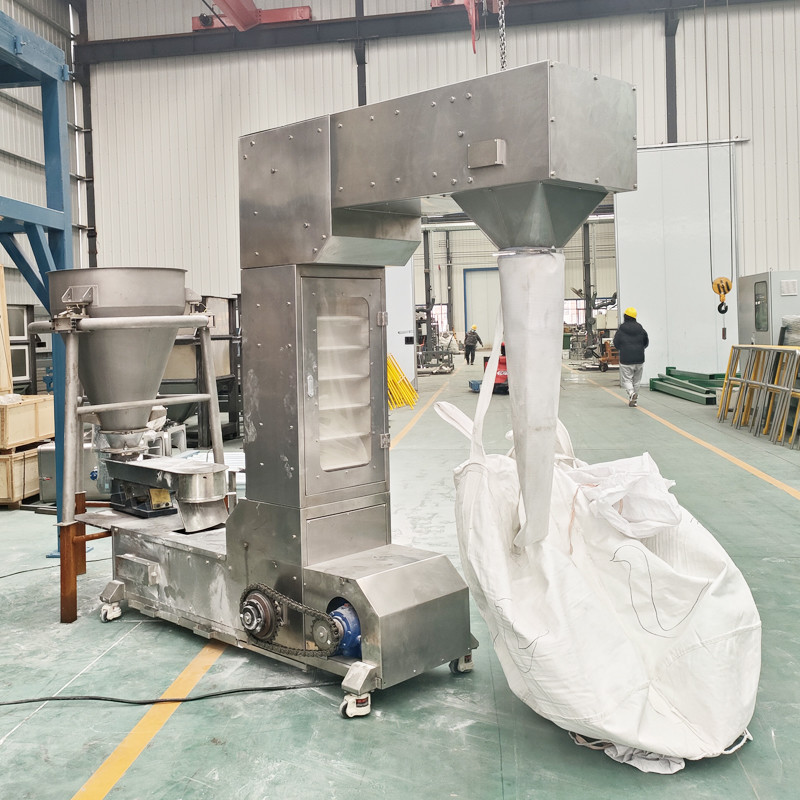

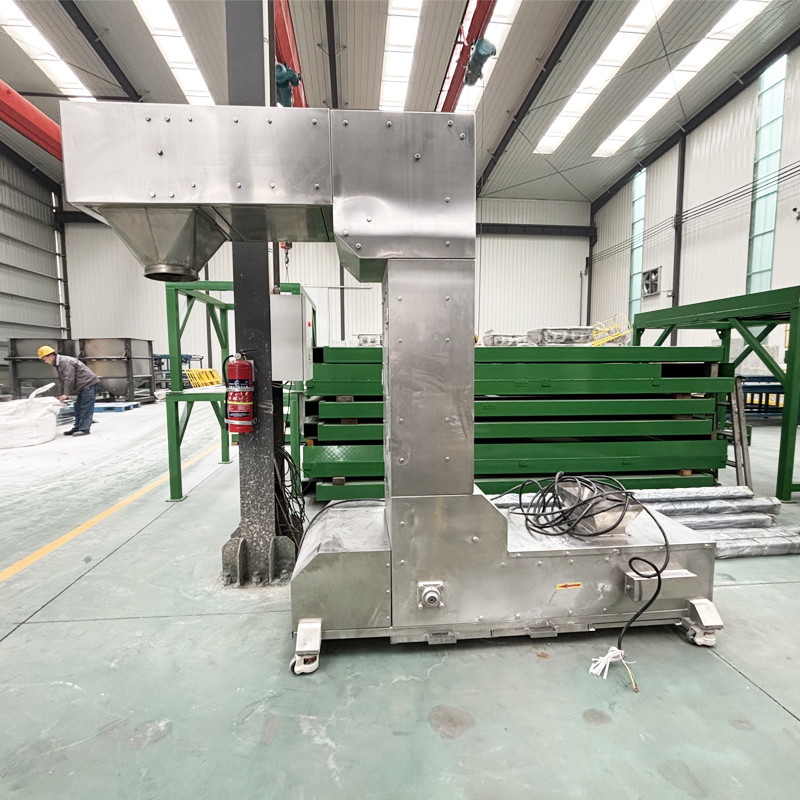

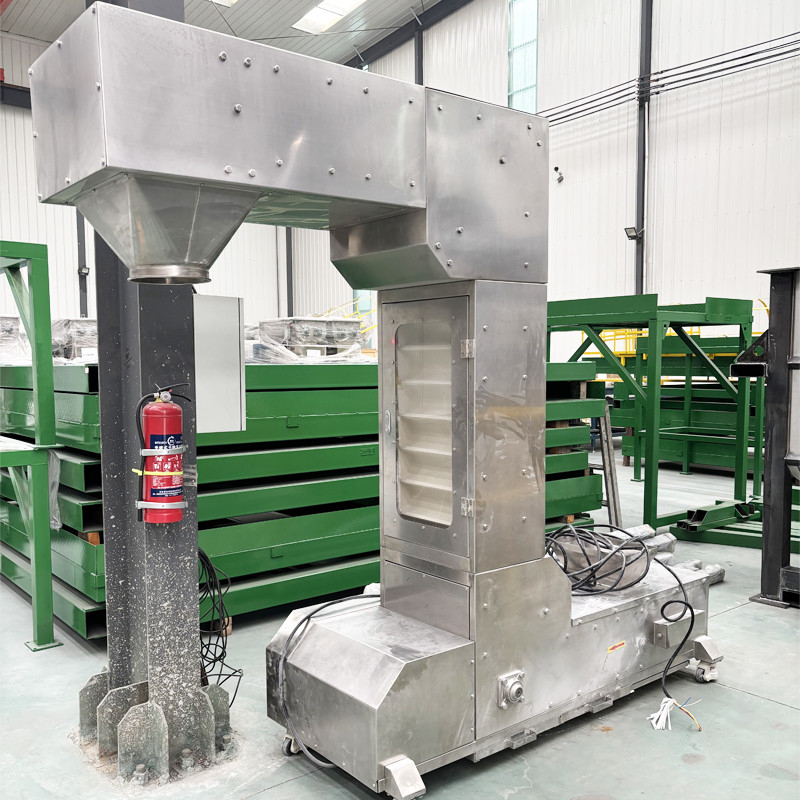

Product display
Packaging & Shipping
Why Choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer,
Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
