​Z Type Bucket Elevator

Product description

Z-type elevator is an efficient vertical conveying equipment, suitable for lifting granular, powdered and small pieces of bulk materials. It is usually composed of a drive device, a tensioning device, a bucket belt, a bucket, a shell and other components, and the overall structure is Z-shaped, so it is named. The working principle is to drive the movement of the bucket belt through the driving device, the bucket digs the material at the lower part, lifts the material to a certain height with the rise of the bucket belt, and then disconnects the material at the top discharge port. Z-type lifting machine has the advantages of small floor area, large throughput, high lifting height, good sealing, smooth operation, low noise, easy maintenance, etc., widely used in food, chemical industry, building materials, feed, mining and other industries, can effectively improve production efficiency, reduce labor intensity, is the ideal equipment to achieve vertical conveying automation of materials.

Working principle

The working principle of Z-type elevator is: The sprocket or drum on the drive shaft is driven by the motor to cycle the bucket belt between the drive shaft and the driven shaft. The bucket at the bottom inserts the material pile while running with the bucket belt, scoops or scrapes the material with its own volume, and then the bucket belt lifts the bucket and the material in it along the Z-shaped lifting channel. When the bucket runs to the top of the discharge port position, due to the centrifugal force and gravity generated by the change of the direction of the bucket movement, the material is thrown or dumped out of the bucket and unloaded into the specified position or equipment through the discharge port, thus completing the Z-shaped conveying process of the material from the low place to the high place to achieve the function of material lifting.

Product characteristics

1. Unique Z-type structure: Z-type elevator adopts unique Z-type layout, set horizontal conveying, inclined lifting and vertical lifting functions in one, can achieve efficient lifting and conveying of materials in a limited space, can flexibly adapt to different working environments and processes, effectively save floor space, especially suitable for narrow site work scenes.
2. Strong conveying capacity: different specifications of bucket and running speed can be selected according to actual needs to meet various conveying requirements, and can adapt to different production scales from small conveying capacity to large conveying capacity, and some large Z-type elevators can deliver tens of tons per hour or even higher.
3. High lifting height: Through reasonable design and configuration, it can achieve a high lifting height, which can generally reach several meters or even tens of meters, which can meet the requirements of material lifting height in different production links, and provide more flexibility for the layout of the production process.
4. Wide adaptability of materials: strong adaptability to materials, whether it is granular grain, feed, or powdered cement, fertilizer, or small lump ore and other bulk materials, can be effectively promoted and transported, and can better maintain the integrity of materials in the transportation process, reduce the crushing and loss of materials.
5. Good sealing: the overall structure has good sealing, which can effectively prevent materials from leaking and flying during transportation, avoid material loss and environmental pollution, especially suitable for occasions with high environmental cleanliness requirements and conveying dust, toxic and harmful or valuable materials.
6. Stable and reliable operation: the use of advanced transmission device and stable structural design, low vibration, low noise during operation, high reliability of the equipment, can work continuously and stably, reduce the production interruption caused by equipment failure, reduce maintenance costs and maintenance workload, improve production efficiency.
7. High degree of automation: It can realize linkage control with other production equipment and easily integrate into the automated production system to realize the automatic operation of material conveying, reduce manual intervention, improve the automation level of production and management efficiency, and reduce manual labor intensity.
8. Easy maintenance: the structural design of the equipment is easy to check, repair and maintenance, and the main components such as bucket, bucket belt, sprocket, etc., are easy to disassemble and replace, and the daily maintenance is simple, and the maintenance cost is low, which can effectively extend the service life of the equipment.



Product details

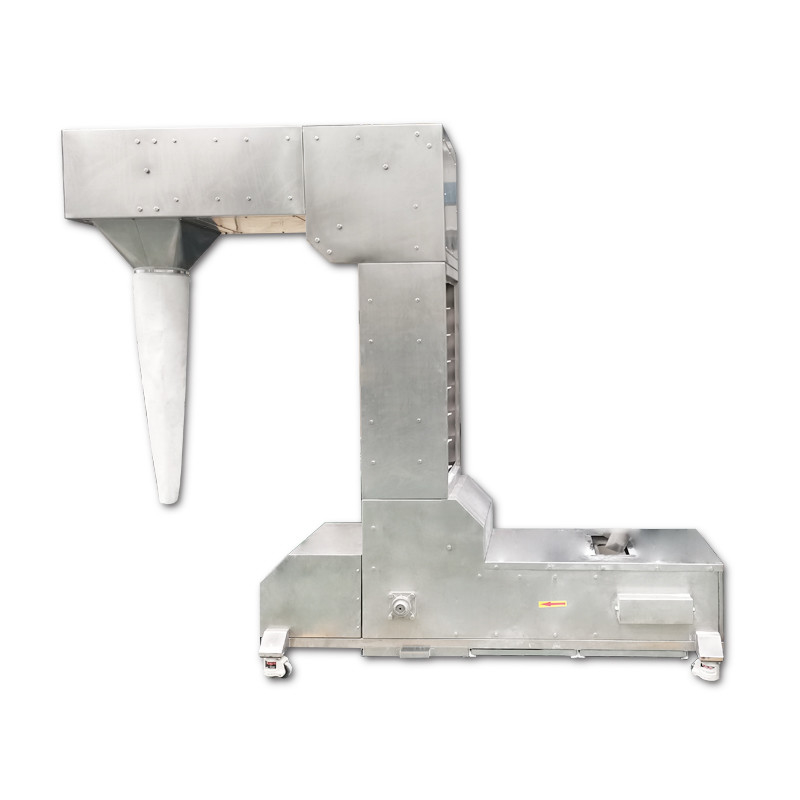

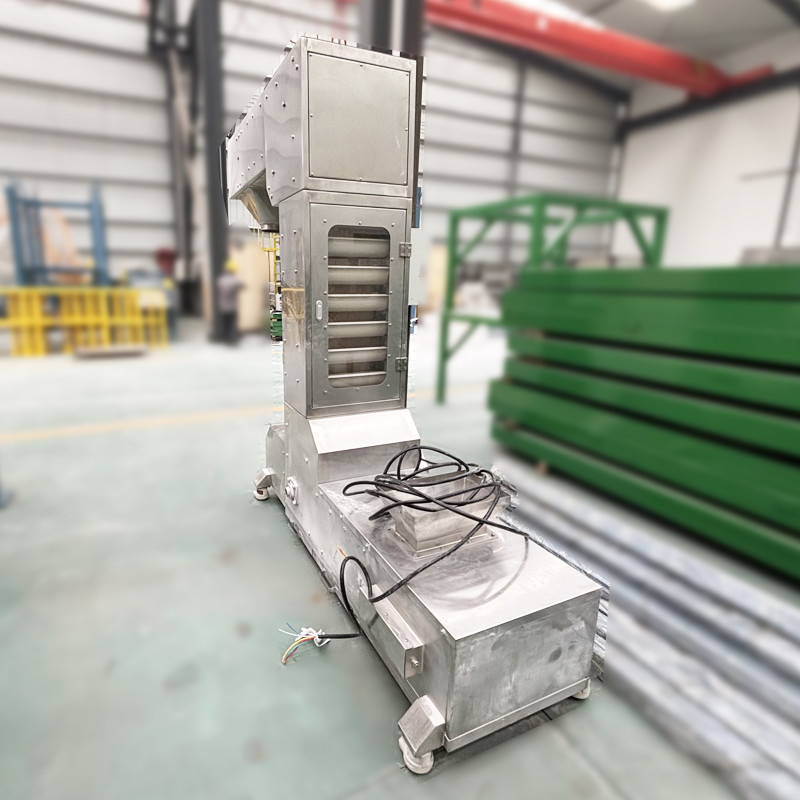

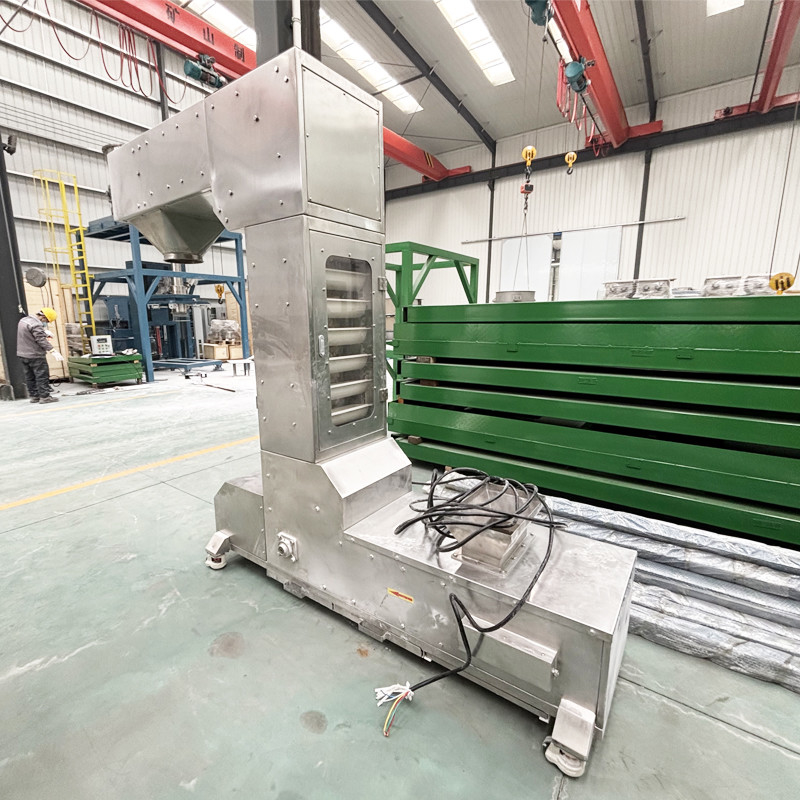

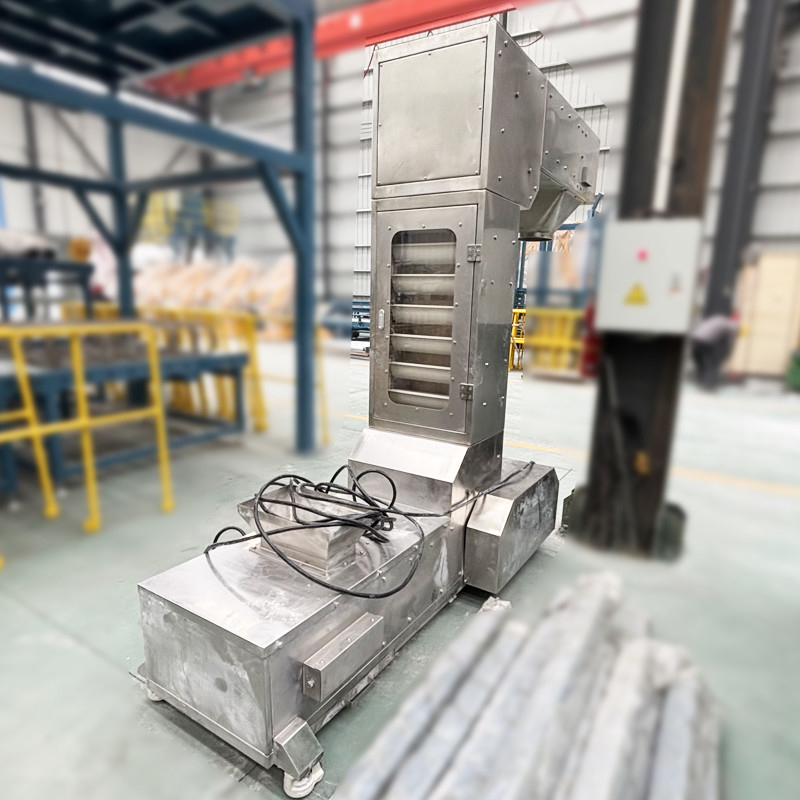

Product display



Packaging & Shipping



Why Choose us



About us

Company Profile

We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer,

Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.

We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
