Vacuum Conveyor

Product description

The vacuum feeder is an efficient material conveying device that uses a vacuum pump to draw air from the silo, creating a negative pressure environment. the action of atmospheric pressure, materials are sucked from the suction port through the suction pipe and conveying pipeline into the silo. It is mainly composed of a vacuum pump suction nozzle, pipeline, silo and level sensor, etc. It has the advantages of high conveying efficiency, no dust leakage, simple operation and high degree of automation which can effectively improve production efficiency and improve the working environment. It is widely used in chemical, pharmaceutical, food and other industries to achieve automatic conveying of various powd and granular materials.

Working principle

After the vacuum feeder is started, the vacuum pump quickly draws the air in the hopper, forming a negative pressure. Under the action of atmospheric, the material is pressed into the suction pipe from the suction port and enters the hopper along the conveying pipeline. When the material in the hopper reaches the high, the level sensor sends a signal to stop the vacuum pump and pause the feeding; when the material is reduced to the low level, the sensor is triggered again, vacuum pump is restarted, and a new round of conveying begins, and so on, to achieve the automatic conveying of the material.

Product features

1. High - efficiency and Fast:It uses negative pressure transportation, and the material transmission speed is fast. A large amount of materials can be transported in a short time, effectively improving production efficiency.

2. Clean and Dust - free:The whole - closed transportation avoids the contact between materials and the outside world, completely eliminates dust leakage, prevents material pollution, and keeps the working environment clean.

3. Easy to Operate:It has a high degree of automation. Only by setting parameters can the feeding process be automatically completed without frequent manual operation.

4. Simple Maintenance:The overall structure is not complex, and all components are easy to disassemble and maintain, reducing the equipment maintenance cost and downtime.

5. Precisely Controllable:Through devices such as level sensors, the material transportation volume can be precisely controlled to ensure the stability and accuracy of material supply.

6. Wide Applicability:It can transport various forms of materials, whether they are powders, granules or small - block materials, and can play a role in industries such as chemical engineering, food, and pharmaceuticals.

Model	Hopper Capacity(L)	Working pressure	Conveying Capacity(kg/h)	Compressed air consumption
QVC-1	1.1	0.4-0.6Mpa	50-300	180NL/min
QVC-2	6	0.4-0.6Mpa	100-700	360NL/min
QVC-3	12	0.4-0.6Mpa	300-1500	720NL/min
QVC-4	42	0.4-0.6Mpa	600-3000	1440NL/min
QVC-5	60	0.4-0.6Mpa	900-6000	2880NL/min

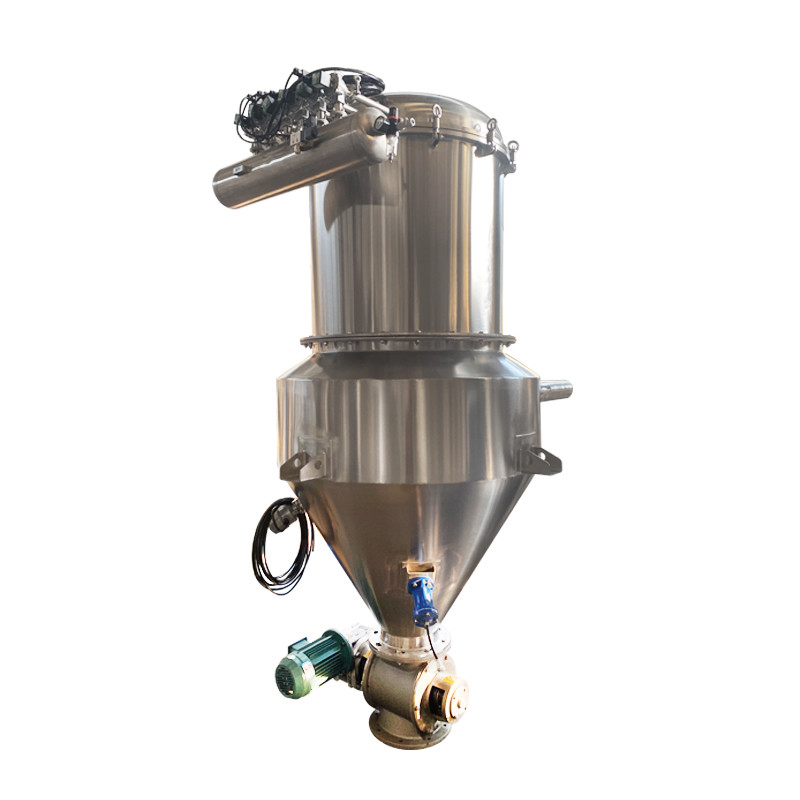

Product details

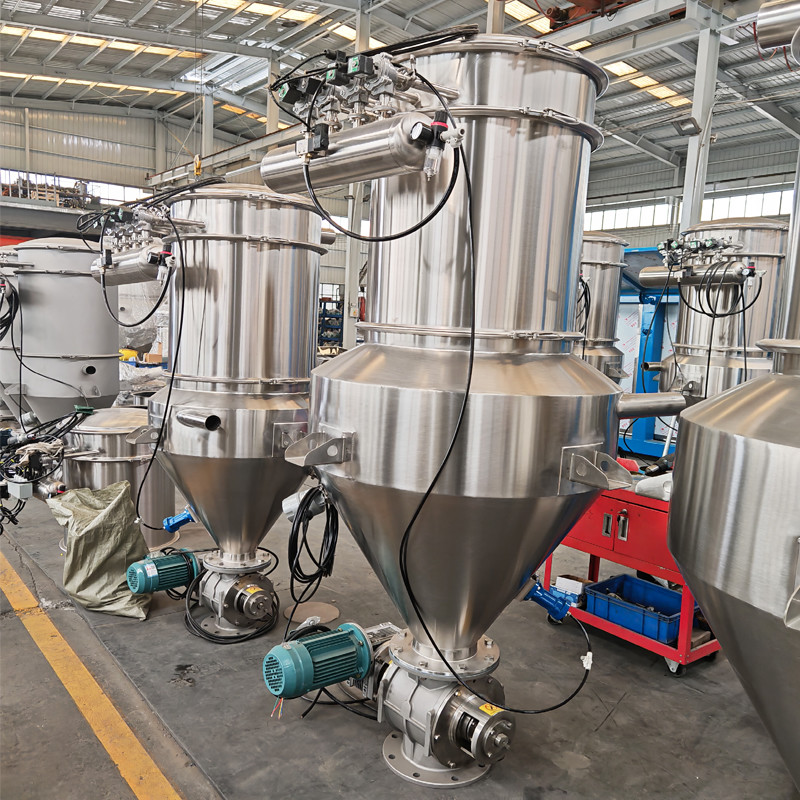

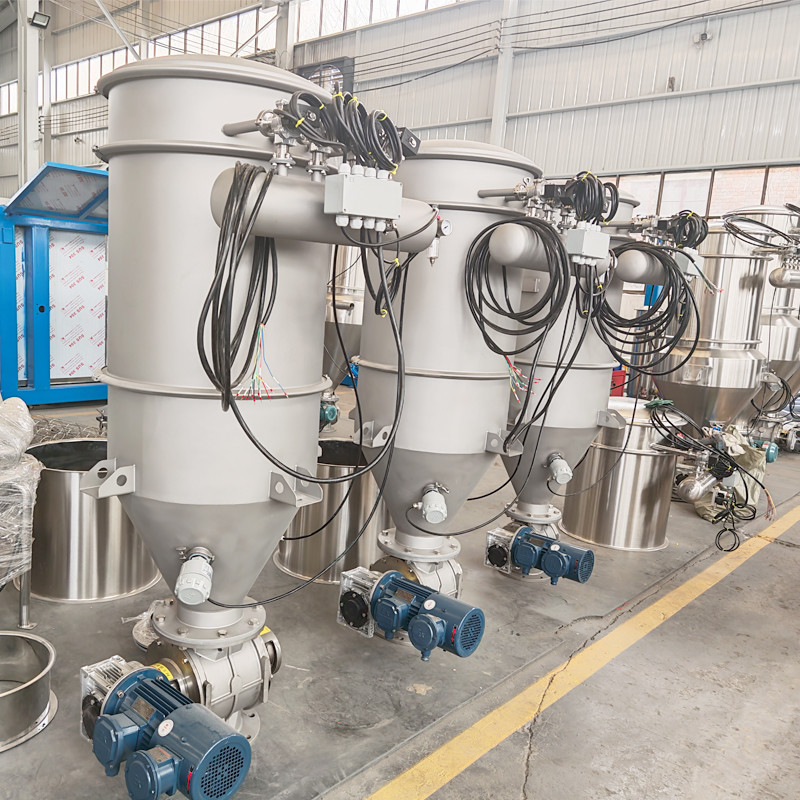

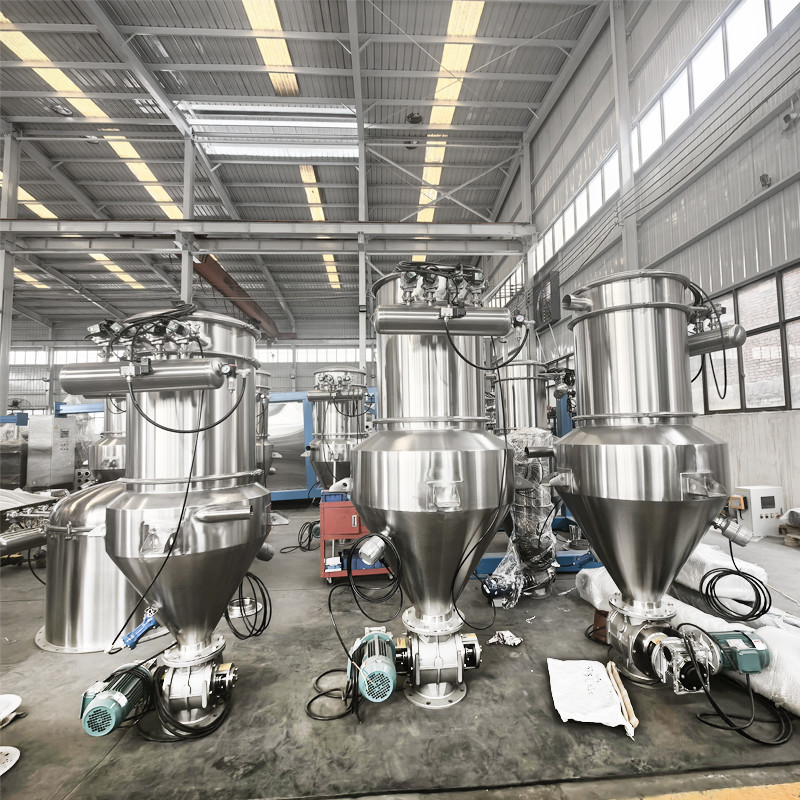

Product shows



Application

Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,

chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
