| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | QVC |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Hopper Volume: | 1.1-60 L | Grade: | Automatic |
|---|---|---|---|
| Customizable Options: | Yes | Advantage: | Support Non-standard Customization |
| Air Pressure: | 0.4~0.6 MPA | Frequency: | 50/60Hz |
| Warranty: | 1 Year | Control: | PLC Control/Control Box |
| Conveying Mode: | Negative Pressure Conveying | Type: | Electric And Pneumatic Type |
| Standard: | GMP | Application: | Food, Pharmaceutical, Chemical, And Other Industries |
| Power: | 1.5-7.5KW | Conveying Speed: | Adjustable |
| Highlight: | Automatic Dust-Free Vacuum Feeder,Electric Vacuum Feeder,Powder Particle Conveying Feeder |
||
Product description
Intermittent vacuum feeder is a powerful equipment in the field of material handling. It relies on a vacuum generator to generate negative pressure and quickly suck the material from the source into the pipeline and efficiently transport it to the storage tank. The work is intermittent, the material reaches the set limit, it will automatically stop the suction, open the discharge; It drops to the lower limit and quickly restarts the cycle. Its advantages are significant, completely closed transmission to eliminate material leakage and dust flying, clean and environmental protection, suitable for pharmaceutical, food and other industries; Can transport a variety of forms of materials, flexibility; Intelligent control system simplifies operation and reduces labor intensity; Compact design makes maintenance easy and convenient. With these characteristics, it plays an important role in improving production efficiency and ensuring product quality.
Working principle
When the intermittent vacuum feeder works, the vacuum generator starts first, quickly pumps the air in the suction pipe and storage tank, so that this part of the space forms a negative pressure environment. When the external atmospheric pressure is seen, the material is immediately "pushed" into the suction pipe from the feed port, and the material is "sucked" into the storage tank along the pipe. When the material accumulation in the storage tank reaches the set limit, the control system responds accurately, the vacuum generator stops operation, the discharge valve is opened, and the material is discharged from the discharge port at the bottom of the tank by gravity to enter the subsequent process. As the material continues to be used, the amount of material in the tank is reduced to the lower limit, the control system is ordered again, the equipment is restarted, and the process of suction, storage and discharge is repeated, so that the efficient and stable intermittent transportation of materials is realized.
Features & Advantages
Efficient transport: The use of powerful vacuum suction, fast suction and transport of materials, single feeding time is short, cycle operation greatly improves the overall transport efficiency, can meet the material supply needs of high-speed production lines.
Clean and environmental protection: The whole conveying process is carried out in the closed pipeline, effectively avoiding material leakage and dust flying, preventing pollution of the production environment, in line with environmental protection requirements, especially suitable for industries with harsh sanitary conditions, to ensure product quality and safety.
Suitable for various materials: whether it is powder, granular or small block materials, it can achieve efficient transportation by flexibly adjusting the vacuum degree, conveying pipe diameter and other parameters, and it is suitable for a wide range of materials.
Intelligent and easy control: Equipped with advanced control system, the control panel can preset the feeding time, the upper and lower limits of the material amount and other parameters, the equipment automatically completes the vacuum, suction, storage, discharge and other processes, simple operation, reduce manual labor intensity.
Low maintenance cost: compact and reasonable structure, easy disassembly and installation of key components, convenient daily cleaning and maintenance. The equipment runs smoothly, the mechanical wear is small, the parts replacement frequency is low, and the maintenance cost is reduced.
Stable and reliable operation: after careful design and debugging of each component, it can maintain stable performance during long-term operation, and the incidence of failure is low, ensuring the continuous production process and providing a strong guarantee for the production of enterprises.
| Model | Hopper Capacity(L) | Working pressure | Conveying Capacity(kg/h) | Compressed air consumption |
| QVC-1 | 1.1 | 0.4-0.6Mpa | 50-300 | 180NL/min |
| QVC-2 | 6 | 0.4-0.6Mpa | 100-700 | 360NL/min |
| QVC-3 | 12 | 0.4-0.6Mpa | 300-1500 | 720NL/min |
| QVC-4 | 42 | 0.4-0.6Mpa | 600-3000 | 1440NL/min |
| QVC-5 | 60 | 0.4-0.6Mpa | 900-6000 | 2880NL/min |

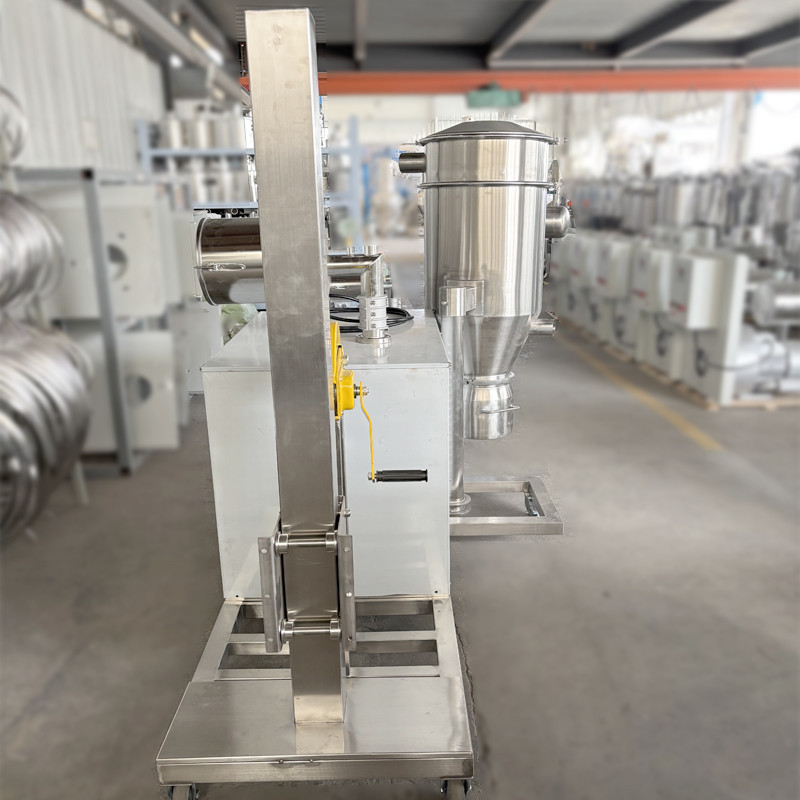

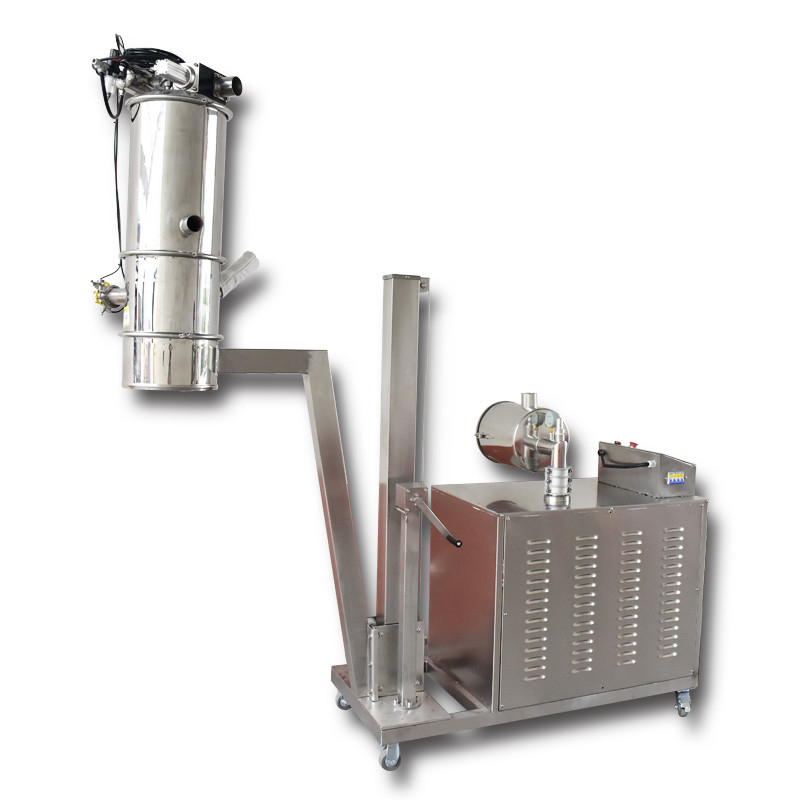

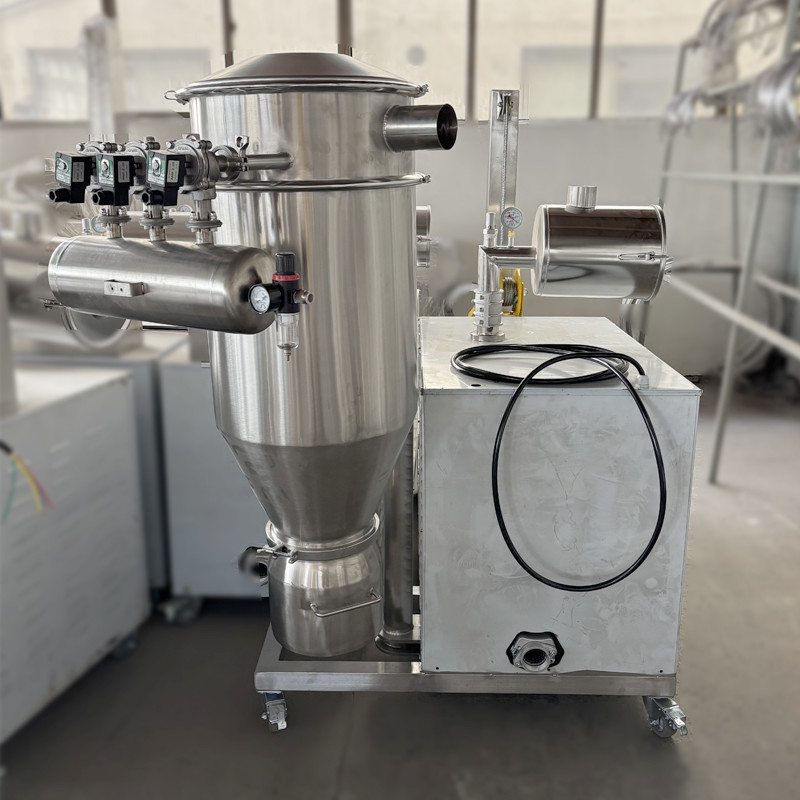

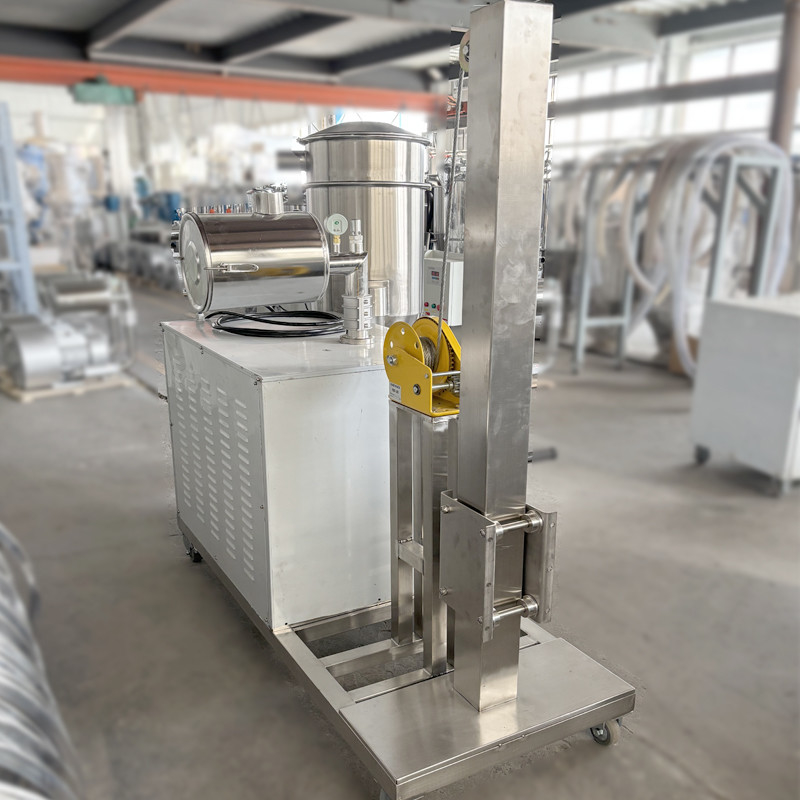

Product details
Product display
Wide range of applications: The vacuum loader is mainly used for conveying powdery and granular materials, such as raw pharmaceutical powders,
chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying overly moist, sticky, or heavy materials.
