| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | QVC |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Conveying Mode: | Negative Pressure Conveying | Pressure: | 0.5-0.6MPa |
|---|---|---|---|
| Voltage: | 220V | Structure: | Closed |
| Warranty: | 1 Year | Size: | Customizable |
| Product Type: | Conveyor System | Vacuum Source: | Vacuum Pump, Roots Fan |
| Hopper Capacity: | 400/600kgm³ Or Customizable | Usage: | Conveying Powder ,granules |
| Material: | Stainless Steel | Advantages: | Automatic Dust-free Conveying |
| Application: | Food, Pharmaceutical, Chemical, Etc. | Advantage: | Support Non-standard Customization |
| Highlight: | Pneumatic Conveying Vacuum Feeder,Fully Automatic Vacuum Feeder,Stainless Steel Vacuum Feeder |
||

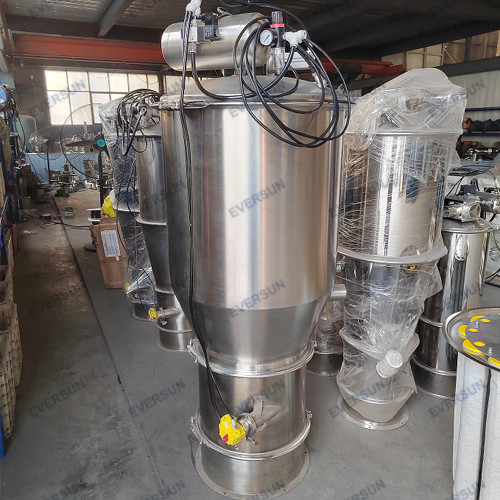

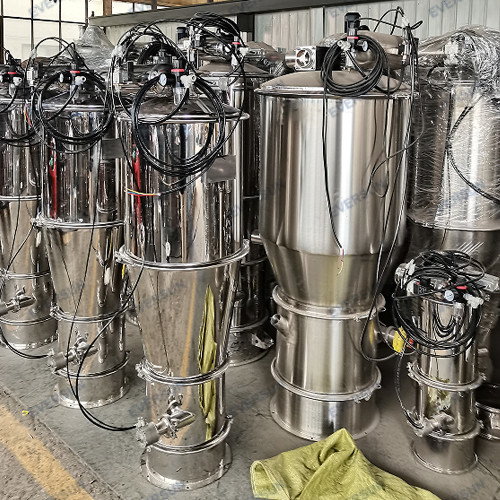

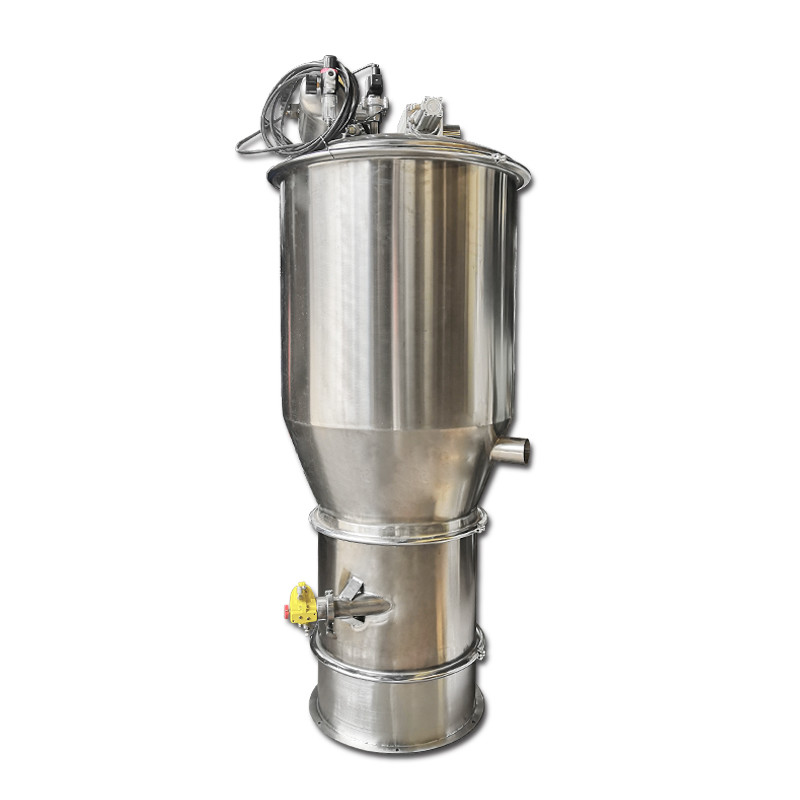

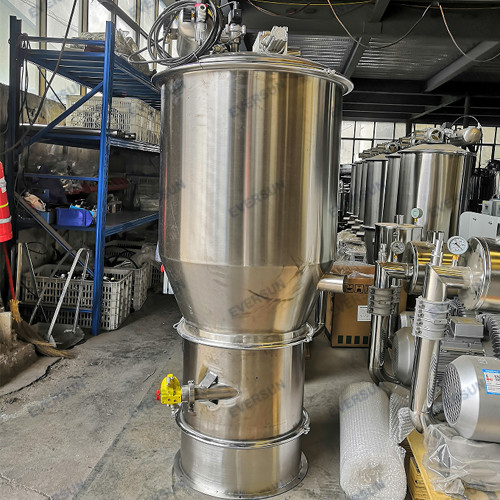

Vacuum feeder, also known as vacuum conveyor, is a kind of dust-free and sealed
pipeline conveying equipment that uses vacuum suction to convey granular powdery
materials. It uses the pressure difference between vacuum and ambient space to
form gas flow in the pipeline, which drives the movement of powdery materials,
completing the conveying of powders. It is now widely used in chemical, pharmaceutical,
food, metallurgy, building materials, agricultural and sideline industries and other light
and industrial industries.
1. Connect power and start the system: Confirm that the power connection is normal,
then turn on the power switch. Start the control of the real equipment and open the
operation interface.
2. Set parameters: Set the required feeding parameters on the operation interface,
such as feeding time, feeding speed.
3. Check the vacuum pump: Check whether the vacuum pump in the equipment is
operating normally and confirm the working status of the pump.
4. Prepare materials: the materials to be fed into the hopper of the feeder, pay
attention to maintain the sealing of the hopper to prevent vacuum leakage.
5. Adjust the position the suction pipe: Adjust the position of the suction pipe of the
feeder to aim at the materials.
6. Start suction: Press the start button to start the suction the vacuum suction cup,
after the vacuum suction pipe sucks the materials, the feeding process begins, and the
materials are sucked up and placed at the required position.
7.Turn off suction and end operation: After feeding is completed, turn off the suction of
the vacuum suction pipe to release the materials. Check whether the feeding process is
and confirm that the materials have been successfully fed. Turn off the control system
and power of the vacuum feeder to end the operation.
1. Safety: No electricity or mechanical energy is required, and the entire system can
be controlled and operated solely through compressed air. The process does not
generate heat, ensuring safety and explosion-proofing. It effectively eliminates static
electricity of materials and does not pollute the surrounding environment.
2. Simp: Automatic control allows for easy and convenient operation with the ability to
set the suction and discharge time within 0 to 30 seconds.
3. Hygiene: conveying prevents dust leakage and cross-contamination, meeting GMP
standards and CIP requirements. It can provide aseptic products with a vacuum feeder.
4. Lightweight Small volume and light weight make installation simple and quick.
5. Quiet: No vibration and low noise.
6. Clean: Dust-free operation, modular design, and dead ends. Disassembly, cleaning,
and material replacement are quick and convenient.
7. Economy: One machine can be used alternately on multiple sets of equipment,
high efficiency and energy saving. There is no need for warm-up or standby, and the
operation and maintenance costs are low.
8. Efficiency: The conveying flow rate reach up to 10 tons per hour, with a horizontal
conveying distance of up to 80m and a vertical conveying height of up to 30, effectively
solving the stratification phenomenon of powder particles.
| Model | Hopper Capacity(L) | Working pressure | Conveying Capacity(kg/h) | Compressed air consumption |
| QVC-1 | 1.1 | 0.4-0.6Mpa | 50-300 | 180NL/min |
| QVC-2 | 6 | 0.4-0.6Mpa | 100-700 | 360NL/min |
| QVC-3 | 12 | 0.4-0.6Mpa | 300-1500 | 720NL/min |
| QVC-4 | 42 | 0.4-0.6Mpa | 600-3000 | 1440NL/min |
| QVC-5 | 60 | 0.4-0.6Mpa | 900-6000 | 2880NL/min |
Wide range of applications: The vacuum loader is mainly used for conveying
powdery and granular materials, such as raw pharmaceutical powders,
chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying
overly moist, sticky, or heavy materials.
We have been specializing in the production of Screening and conveying equipment for
13 years. China's vibrating screen industry top three. And we have done matching and
OEM for many large companies. Including the world's top vibrating screen manufacturer,
Sweco, USA, we have OEM for his China region. And our products are often exported to
Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
