| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | SYH |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Features: | Three-dimensional Mixing, High Efficiency, Easy To Clean | Key Words: | Powder Mixer, Three-dimensional Blender |
|---|---|---|---|
| Frequency: | 50Hz | Mixing Time: | 0-30min |
| Model: | 3D-100 | Capacity: | 100L |
| Voltage: | 220V | Material: | Stainless Steel |
| Application: | Food, Pharmaceutical, Chemical | Mixing Speed: | 0-60rpm |
| Power: | 3kW | Type: | Mixer |
| Highlight: | Food seasoning 3D motion mixer,Electric 3D motion mixer,Professional 3D motion mixer |
||

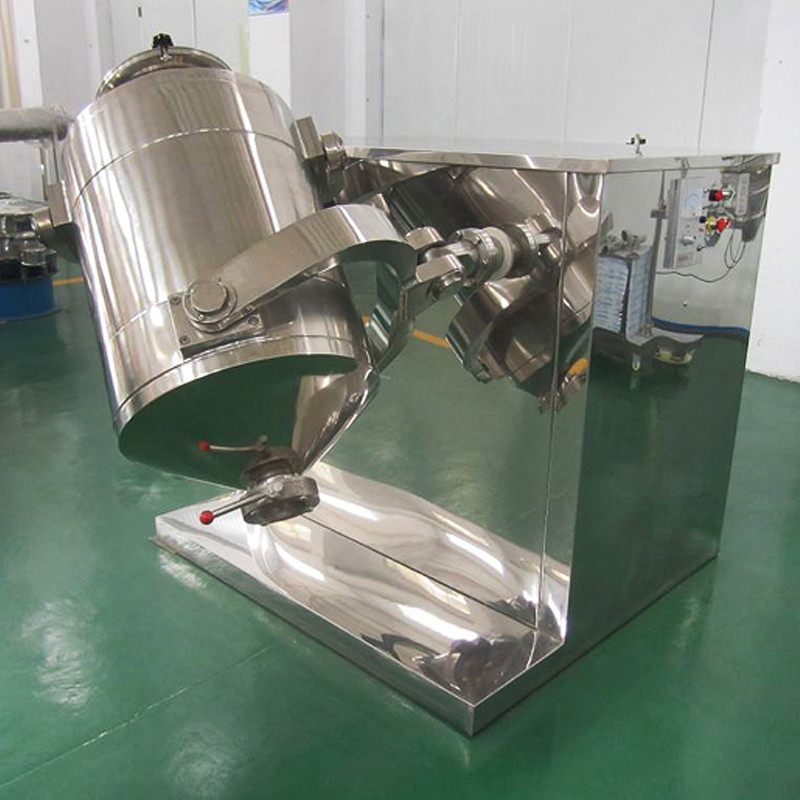

The three-dimensional mixer, also known as the three-dimensional shaking mixer,
has a mixing barrel that operates in multiple directions during operation. This
causes material to accelerate its flow and diffusion during the mixing process. The
material inside the barrel has many cross-mixing points, which simultaneously
avoids the phenomenon of material segregation and accumulation caused by
centrifugal force in conventional mixers. The mixing is thorough and effective,
ensuring the quality of the mixed material.
The three-dimensional blender makes unique translations, rotations, and rocking
motions in the three-dimensional space of the cube, causing the material to be in
complex state of "rotational flow - translation - inversion" within the mixing
cylinder; generating an alternating pulse that continuously pushes the material,
the turbulence generated by the has a gradient of changing energy, so that the
particles in the mixed material have different states of motion, and the particles
continuously change their positions in frequent diffusion movements resulting in
satisfactory mixing results.
The three-dimensional swing mixer is composed of a base, drive system,
three-dimensional motion mechanism, mixing cylinder, and electrical control system.
The mixing, which directly contacts the material, is made of high-quality stainless
steel, and its inner wall is precision polished.
1. With multi-directional movements, the material inside the cylinder has more
mixing points and better mixing effect, and its mixing uniformity is than that of
general mixers.
2. The inner wall of the mixing cylinder of the three-dimensional shaking mixer is
precision polished.
3. Advanced structure, convenient, safe and reliable operation.
4. The machine is sealed and dust-free, with simple operation, convenient
maintenance, and long service life.
The three-dimensional pendulum series is a novel material mixer widely used in
the pharmaceutical, chemical, food, and light industry sectors, as well as research
units. This machine can very evenly mix powdery or granular materials with good
flowability, achieving the best mixing effect.
| Model | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-10 00 |
SYH-12 00 |
SYH-15 00 |
SYH-20 00 |
| Total volume(L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| Effective volume(L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 | 1080 | 1350 | 1800 |
| Maximum loading weight (kg) |
1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 | 250-540 | 366-648 | 400-810 | 500-1080 |
| Spindle speed (r/min) |
0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| Motor power(kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| Overall dimension (mm) |
600* 1000* 1000 |
800* 1200* 1000 |
1150* 1400* 1000 |
1250* 1800* 1550 |
1450* 2000* 1550 |
1650* 2200* 1550 |
1850* 2500* 1750 |
2100* 2650* 2000 |
2150* 2800* 2100 |
2000* 3000* 2260 |
2300 *3200* 2500 |
2500* 3500* 2800 |
| Weight(kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |
| More sizes can be customized | ||||||||||||
