| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | SYH |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Key Words: | 3D Mixer | Warranty: | 1 Year |
|---|---|---|---|
| Voltage: | 120V | Power: | 1000 Watts |
| Frequency: | 60Hz | Speed Settings: | 10 |
| Dimensions: | 16.5 X 11.5 X 14 Inches | Type: | Stand Mixer |
| Additional Features: | Tilt-Head Design | Color: | Silver |
| Bowl Material: | Stainless Steel | Weight: | 25 Pounds |
| Highlight: | Stainless Steel Silent Mixer,3D Stainless Steel Silent Mixer |
||

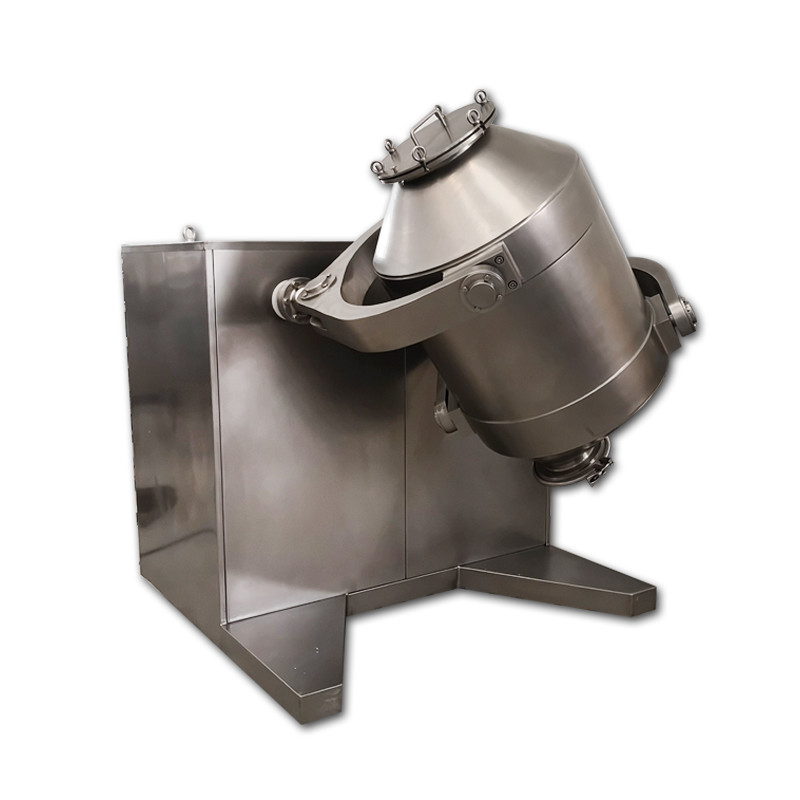

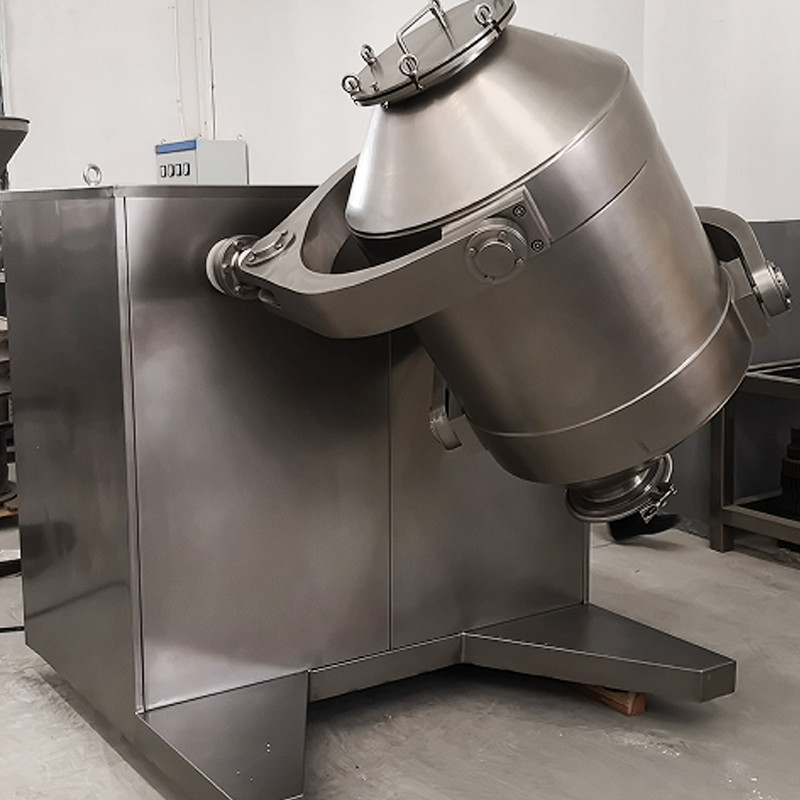

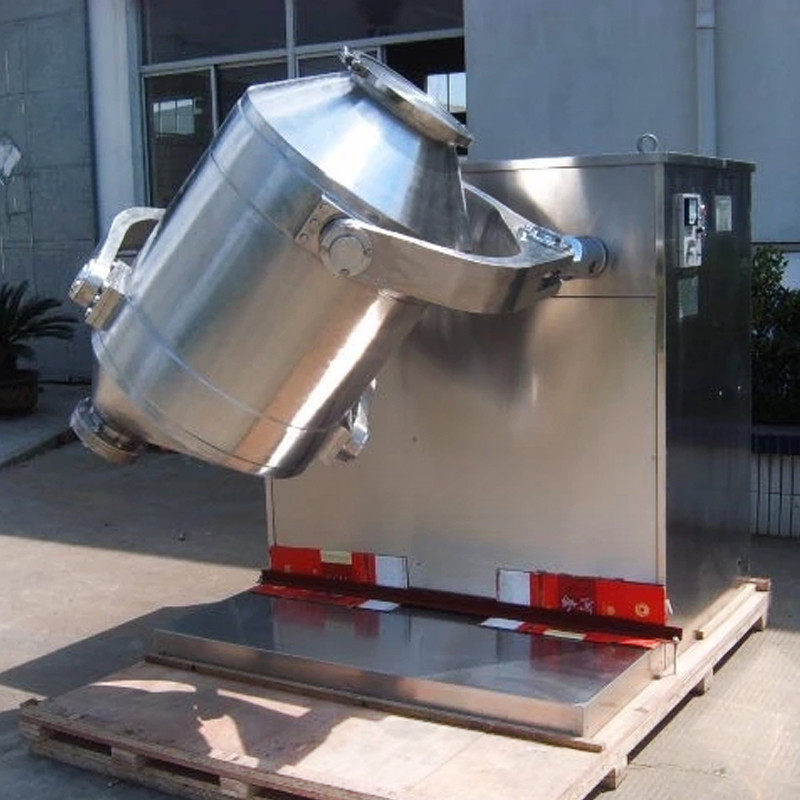

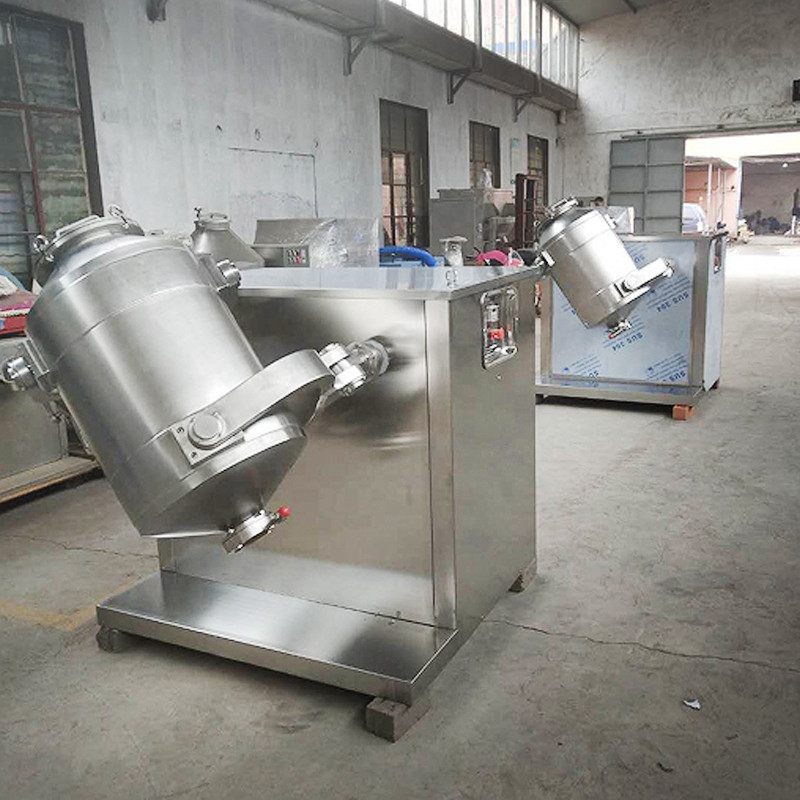

The three-dimensional mixer is a highly efficient powder mixing device. The
moving parts are mainly driven by power to rotate the material cylinder and
install power on the material cylinder to drive the internal high-speed rotation
of the material cylinder. The rotation of the material cylinder makes the internal
materials roll up and down and exchange left and right, stirring and rotating the
scattered materials, so that the materials reach a uniform mixture in a short
period of time.
The material bucket rotates 360 degrees, featuring three-dimensional movement
that transforms the material from a gathered state to a dispersed state with
mutual blending ensuring no dead corners during mixing. A high-speed rotating
blade is installed inside the bucket, directly driven by a motor with adjustable
speed through frequency conversion, providing forced and dispersion of materials.
The three-dimensional motion mixer is composed of a base, transmission system,
electrical control system, multi-directional motion working mechanism, and mixing
drum. mixing drum, which directly contacts the material, is made of stainless steel,
with both the inner and outer walls polished.
1. With multi-directional movements, the material inside the cylinder has more
mixing points and better mixing effect, and its mixing uniformity is than that of
general mixers.
2. The inner wall of the mixing cylinder of the three-dimensional shaking mixer is
precision polished.
3. Advanced structure, convenient, safe and reliable operation.
4. The machine is sealed and dust-free, with simple operation, convenient
maintenance, and long service life.
| Model | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-10 00 |
SYH-12 00 |
SYH-15 00 |
SYH-20 00 |
| Total volume(L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| Effective volume(L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 | 1080 | 1350 | 1800 |
| Maximum loading weight (kg) |
1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 | 250-540 | 366-648 | 400-810 | 500-1080 |
| Spindle speed (r/min) |
0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| Motor power(kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| Overall dimension (mm) |
600* 1000* 1000 |
800* 1200* 1000 |
1150* 1400* 1000 |
1250* 1800* 1550 |
1450* 2000* 1550 |
1650* 2200* 1550 |
1850* 2500* 1750 |
2100* 2650* 2000 |
2150* 2800* 2100 |
2000* 3000* 2260 |
2300 *3200* 2500 |
2500* 3500* 2800 |
| Weight(kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |
| More sizes can be customized | ||||||||||||
