| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | SYH |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Features: | Three-dimensional Movement, Uniform Mixing, High Efficiency | Frequency: | 50Hz |
|---|---|---|---|
| Heating Method: | Electric Heating | Application: | Pharmaceutical, Chemical, Food, Etc. |
| Power: | 3KW | Discharging Method: | Manual |
| Mixing Time: | 5-30min | Temperature Control: | Digital Display |
| Voltage: | 380V | Material: | Stainless Steel |
| Speed: | 0-15rpm | Capacity: | 100L |
| Highlight: | Medical 3D Powder Mixer,Chemical 3D Powder Mixer,High Efficiency 3D Powder Mixer |
||

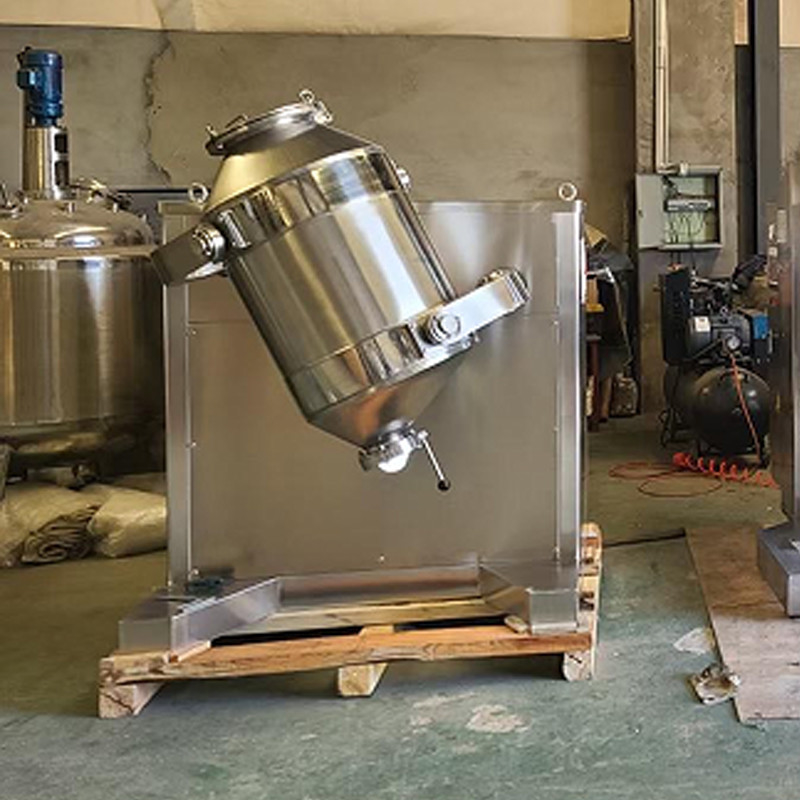

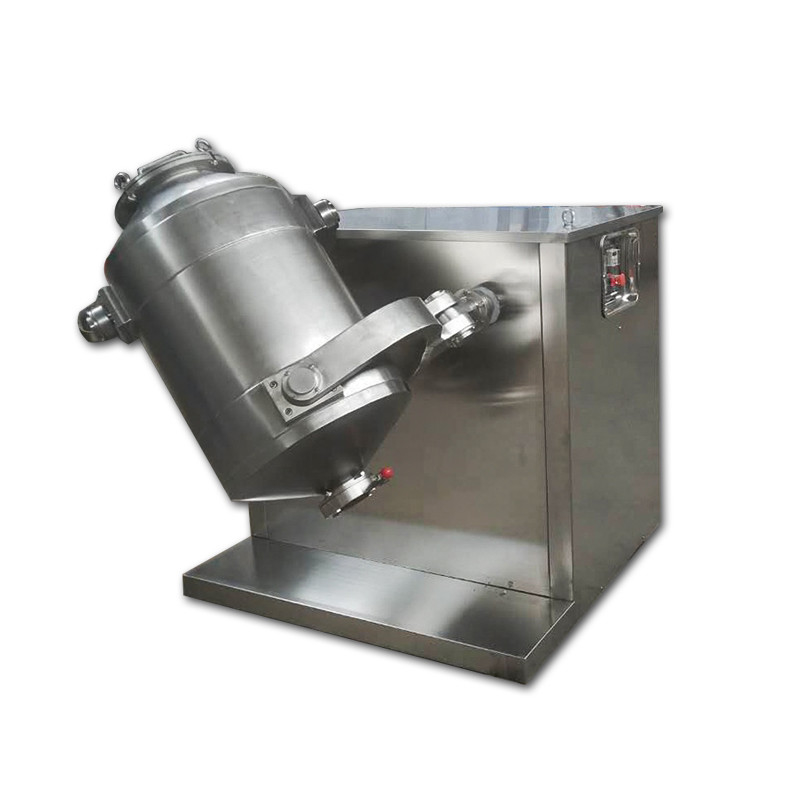

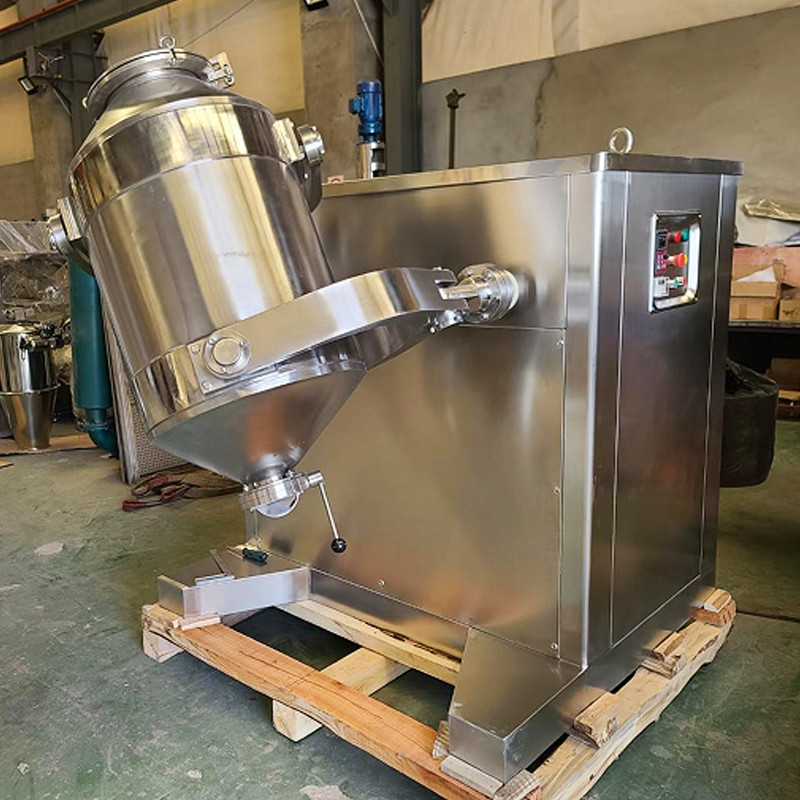

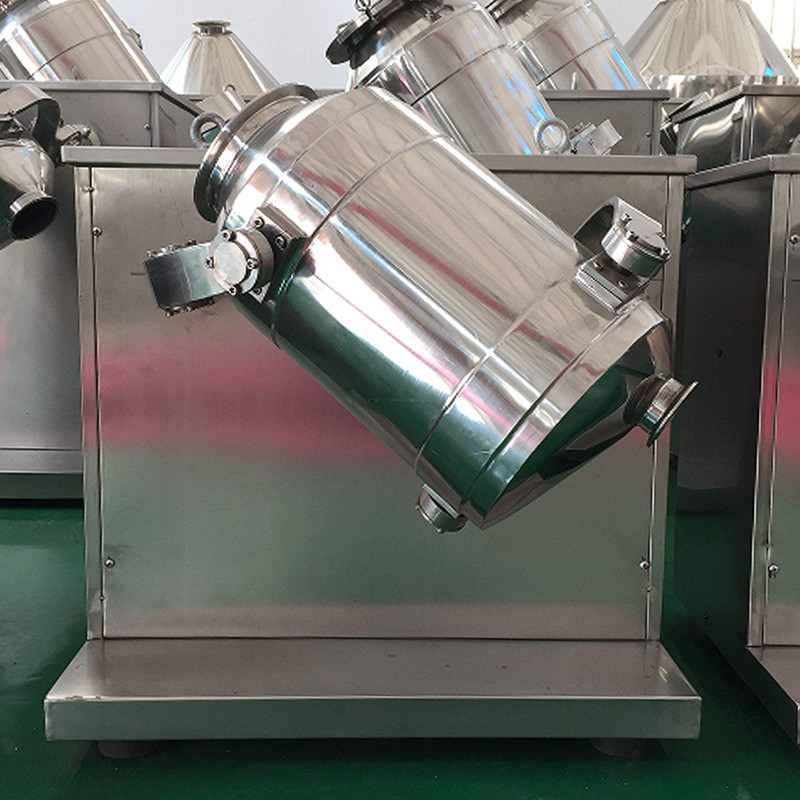

The three-dimensional motion mixer is a type of mixer used in the pharmaceutical,
chemical, food, light industry, electronics, machinery, mineral metallurgy, defense
industry, and scientific research units for high-uniformity mixing of powdery and
granular materials.
The three-dimensional motion mixer, during operation, accelerates fluidity and
diffusion of various materials in the mixing process due to the multi-directional of
the mixing drum. Meanwhile, it avoids the phenomenon of material gravity
segregation and accumulation caused by centrifugal force in general mixers,
ensuring no dead corners in and effectively ensuring the best quality of mixed
materials.
The three-dimensional motion mixer is composed of a base, transmission system,
electrical control system, multi-directional motion working mechanism, and mixing
drum. mixing drum, which directly contacts the material, is made of stainless steel,
with both the inner and outer walls polished.
The multi-directional movement of the mixer's cylinder ensures that the material is
not affected by centrifugal force, eliminating phenomena such as specific gravity,
stratification, and accumulation. The components can have significantly different
weight ratios, with a mixing rate of over 99.9%, making it one of more ideal
products among various mixers.
The cylinder has a large loading capacity, with a maximum of up to 90%
(conventional mixers are 40%), high efficiency, and short mixing time.
| Model | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-10 00 |
SYH-12 00 |
SYH-15 00 |
SYH-20 00 |
| Total volume(L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| Effective volume(L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 | 1080 | 1350 | 1800 |
| Maximum loading weight (kg) |
1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 | 250-540 | 366-648 | 400-810 | 500-1080 |
| Spindle speed (r/min) |
0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| Motor power(kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| Overall dimension (mm) |
600* 1000* 1000 |
800* 1200* 1000 |
1150* 1400* 1000 |
1250* 1800* 1550 |
1450* 2000* 1550 |
1650* 2200* 1550 |
1850* 2500* 1750 |
2100* 2650* 2000 |
2150* 2800* 2100 |
2000* 3000* 2260 |
2300 *3200* 2500 |
2500* 3500* 2800 |
| Weight(kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |
| More sizes can be customized | ||||||||||||
