| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | 20B/30B/40B/60B |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000 sets/year |
| Name: | Crushing Equipment | Application: | Food, Pharmaceutical And Chemical |
|---|---|---|---|
| Feed Size: | ≤100 Mm | Capacity: | 30-400（kg/h） |
| Fineness: | 20-120mesh | Motor: | Pure Copper Machine |
| Highlight: | Universal Corn Crusher Machine,Herb Corn Crusher Machine,120mesh Corn Crusher Machine |
||

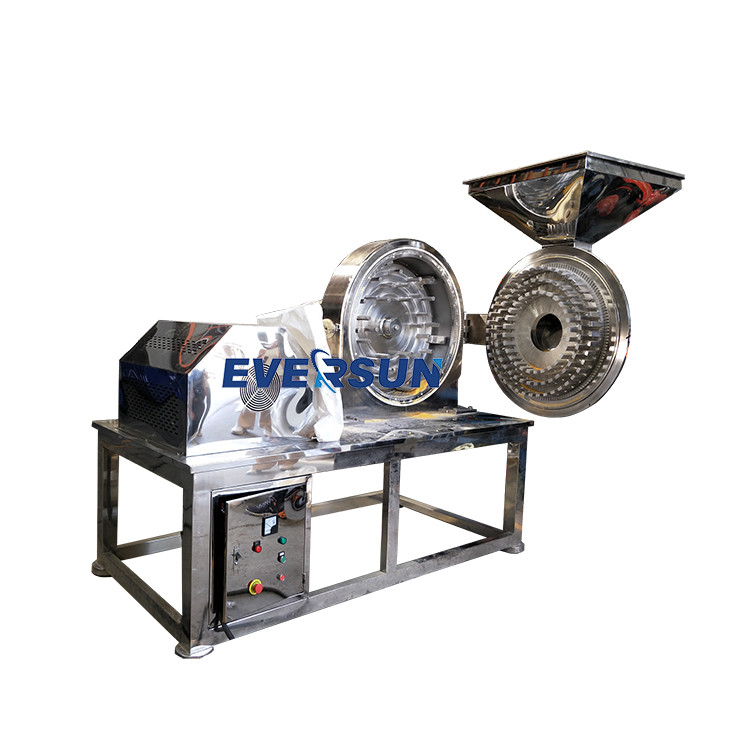

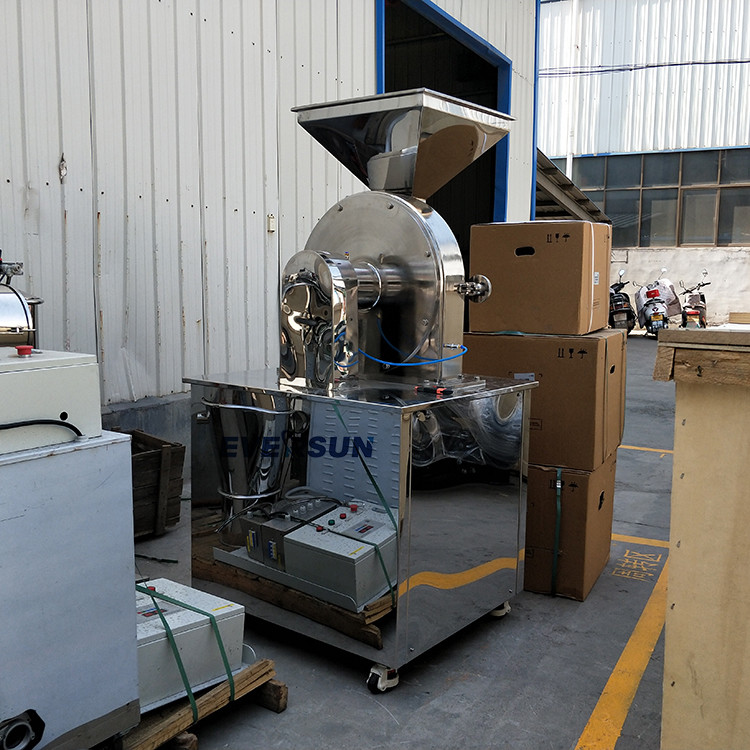

Universal crushing equipment is a cost-effective crushing equipment that has become popular in recent years and is widely used in mining, building materials, metallurgy and other industries. This series of equipment adopts advanced impact crushing technology, exerting strong dynamic impact force on the materials through the high-speed rotating rotor, and crushing the raw materials to the required particle size efficiently and quickly.
The B series crushing equipment has a compact structure, smooth and reliable operation, and is equipped with a replaceable screen system, which can easily adjust the discharge particle size, and is also very simple to operate and maintain. More importantly, the B series equipment has low energy consumption and obvious operating cost advantages, providing customers with an economical and practical crushing solution. With excellent performance and wide applicability, B series general crushing equipment has become one of the first choice equipment for many factories.
|
Model |
20B |
30B |
40B |
60B |
|
Output(kg/h) |
20-150 |
100-300 |
160-800 |
500-1500 |
|
Input material sizes(mm) |
6 |
10 |
12 |
15 |
|
Output fineness(mesh) |
60-150 |
60-120 |
60-150 |
60-150 |
|
Motor power(kw) |
4 |
5.5 |
7.5 |
18.5 |
|
Main rotating speed(rmp) |
4500 |
3800 |
3400 |
2800 |
|
Dimension(mm) |
550*600*1250 |
600*700*1450 |
800*900*1550 |
1000*900*1680 |
|
Weight(kg) |
250 |
320 |
550 |
850 |
1. Efficient crushing: Using advanced impact crushing mechanism, the high-speed rotating rotor exerts a strong dynamic impact on the material, which can achieve efficient and rapid crushing.
2. Flexible adjustment: Equipped with a replaceable screen system, the discharge particle size can be easily adjusted according to different application requirements to meet the diverse requirements of customers.
3. Low energy consumption operation: The structural design of the whole machine and the optimization of the transmission system give B series equipment obvious advantages in energy consumption under the same output, significantly reducing operating costs.
4. Reliable and stable: The use of high-quality mechanical structures and materials ensures smooth and reliable operation of the equipment and reduces the frequency of maintenance.
5. Easy to operate and maintain: The whole machine has a compact structure and reasonable layout. It is very convenient to open and clean the equipment, which greatly improves the operability and maintenance.
Materials enter the crushing cavity inside the equipment through the feed port, and enter the crushing area stably and continuously under the action of gravity or mechanical feeding. A high-speed rotating rotor is installed inside the crushing chamber. The rotor drives the materials to rotate at extremely high speeds and receive strong dynamic impact force. Between the rotor and the equipment wall, the material is violently impacted and crushed, thereby achieving fast and efficient crushing. The crushed materials are screened through the adjustable screen. Materials that meet the required particle size are discharged from the equipment at the bottom of the screen. Oversize materials continue to return to the crushing area for crushing again.
1. Mining industry:
It can be used for primary and secondary crushing of various ores, coal and other brittle materials. It is widely used in the production of iron ore, coal mine, gold mine, phosphate mine and other mines.
2. Building materials industry:
Suitable for crushing limestone, gypsum, clay and other building materials.
3. Metallurgical industry:
It can be used to crush various metal ores, slag and other materials in metallurgical plant production.
4. Chemical industry:
It is suitable for crushing chemical raw materials such as quartz sand, dolomite and other brittle materials. It is used in the production of chemical products such as fertilizers, coatings, and ceramics.
5.recyclehub recycling:
It can be used to crush and crush various wastes, such as construction waste, electronic waste, etc.
Provide material pretreatment for recycling.
We support customizing various types of crushers, universal crushers, coarse crushers, ultra-fine crushers, and shredders. Whether you want to achieve coarse crushing, fine crushing or tearing of materials, you can find a suitable equipment in Eversun. In addition to single equipment, we can also design production lines for you.
