| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | 20B/30B/40B/60B |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000 sets/year |
| Name: | Grinding Machine | Fineness: | 60-150 Mesh |
|---|---|---|---|
| Production Capacity: | 1000（kg/h） | Feed Particle Size: | ≤ 6（mm） |
| Discharge Particle Size: | 20-150（mm） | Spindle Speed: | 4500（r/min） |
| Highlight: | Sugar Salt Rice Spice Grinding Machine,SUS304 Milling Machine,SUS304 Dry Chilli Grinding Machine |
||

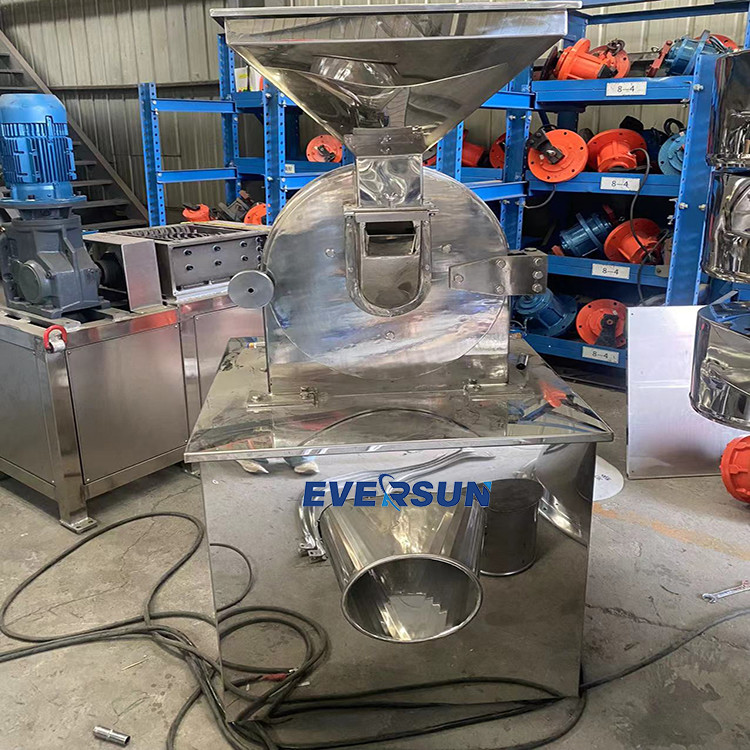

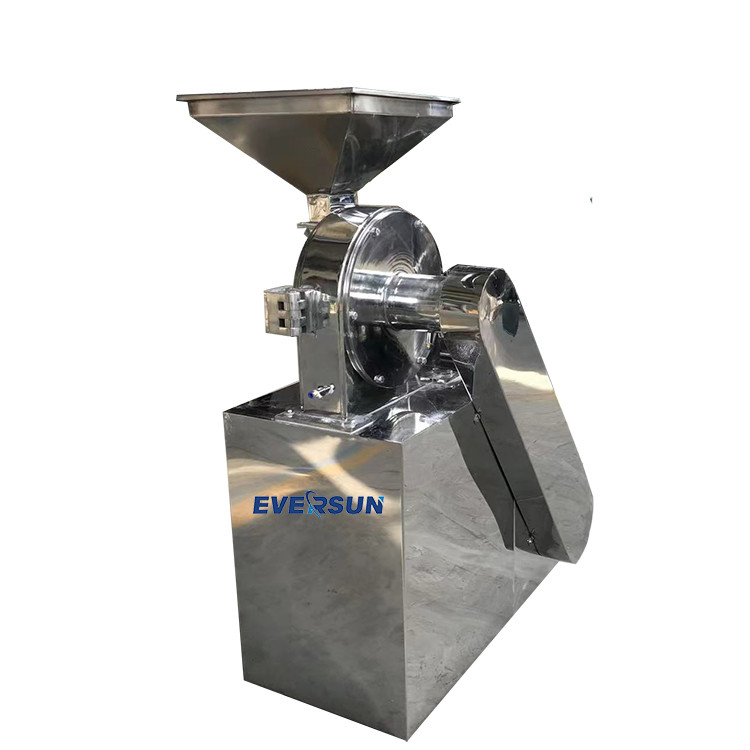

The universal Grinding Machine adopts advanced crushing principles and structural design, and has efficient crushing capacity and excellent crushing effect. It can quickly and evenly crush materials into the required particle size, improving production efficiency. It can be used as a separate independent equipment, or it can be combined with other equipment to form a production line for continuous crushing operations.
|
Model |
20B |
30B |
40B |
60B |
|
Output(kg/h) |
20-150 |
100-300 |
160-800 |
500-1500 |
|
Input material sizes(mm) |
6 |
10 |
12 |
15 |
|
Output fineness(mesh) |
60-150 |
60-120 |
60-150 |
60-150 |
|
Motor power(kw) |
4 |
5.5 |
7.5 |
18.5 |
|
Main rotating speed(rmp) |
4500 |
3800 |
3400 |
2800 |
|
Dimension(mm) |
550*600*1250 |
600*700*1450 |
800*900*1550 |
1000*900*1680 |
|
Weight(kg) |
250 |
320 |
550 |
850 |
1. Versatility: It can handle materials with different hardnesses, from hard ores to fragile crystals, and can be effectively crushed.
2. Adjustability: The universal Grinding Machine is equipped with adjustable crushing parameters, such as crushing speed, crushing gap and crushing blades.
3. Compact structure: Universal Grinding Machines usually adopt a compact structure design, occupying little space and easy to install and maintain.
4. Easy to operate: The operation of the universal grinder is relatively simple, just set the appropriate parameters and turn on the machine. It is usually equipped with safety protection devices to ensure the safety of operators.
Universal Grinding Machines are widely used in multiple industries. Here are some common application areas:
1. Pharmaceutical industry: fine crushing of Chinese medicinal materials, crushing of tablets, etc.
2. Chemical industry: crushing and crushing of plastic products, rubber products, fertilizers, pigments, etc.
3. Food industry: production of flour, preparation of food additives, crushing of food particles, etc.
4. Metallurgical industry: Ore crushing and mineral processing processes, such as metal ore crushing, sand and gravel crushing, etc.
5. Agricultural industry: feed processing, grain crushing, etc.
When shopping for a universal Grinding Machine, here are some considerations and buying guides to help you make an informed choice:
1. Crushing capacity: First, you need to determine the crushing capacity you need, that is, the amount of material that needs to be processed per hour.
2. Material characteristics: Consider the characteristics of the material you want to process, such as hardness, humidity, viscosity, etc.
3. Crushing effect: Determine the desired final crushing effect and particle size range.
4. Safety: Pay attention to the safety features of the grinder, such as protective covers, safety switches, etc.
