| Place of Origin: | China |
|---|---|
| Brand Name: | EVERSUN MACHINERY |
| Certification: | ISO,CE |
| Model Number: | 20B/30B/40B/60B |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000 sets/year |
| Name: | Salt Crusher Machine | Feed Size: | ≤100 Mm |
|---|---|---|---|
| Discharge Size: | 1.5-20 Mm | Capacity: | 30-400 |
| Fineness: | 20-120mesh | Spindle Speed: | 2800-4500（r/min） |
| Highlight: | Red Beans Salt Crusher Machine,Universal Powerful Salt Crusher Machine,Powerful Salt Crusher Machine |
||

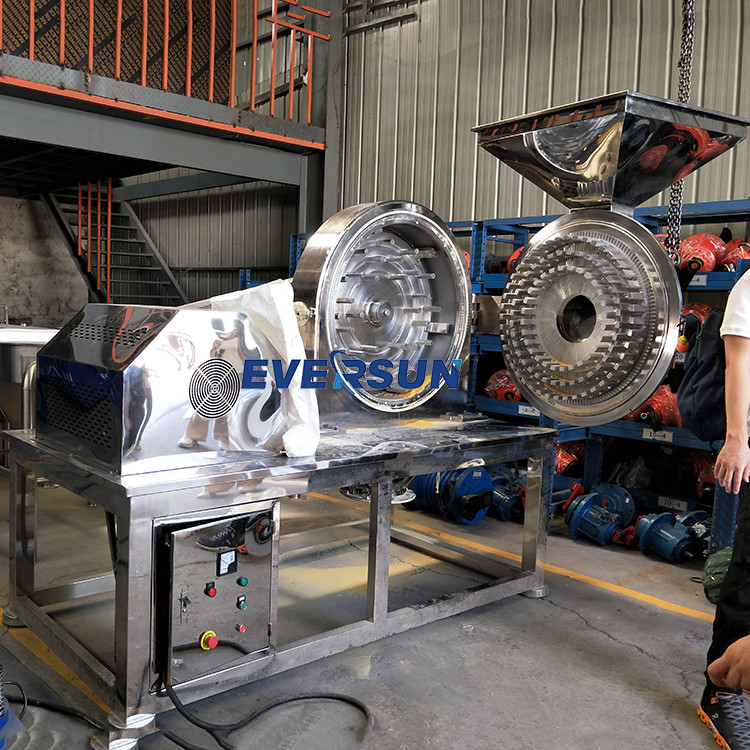

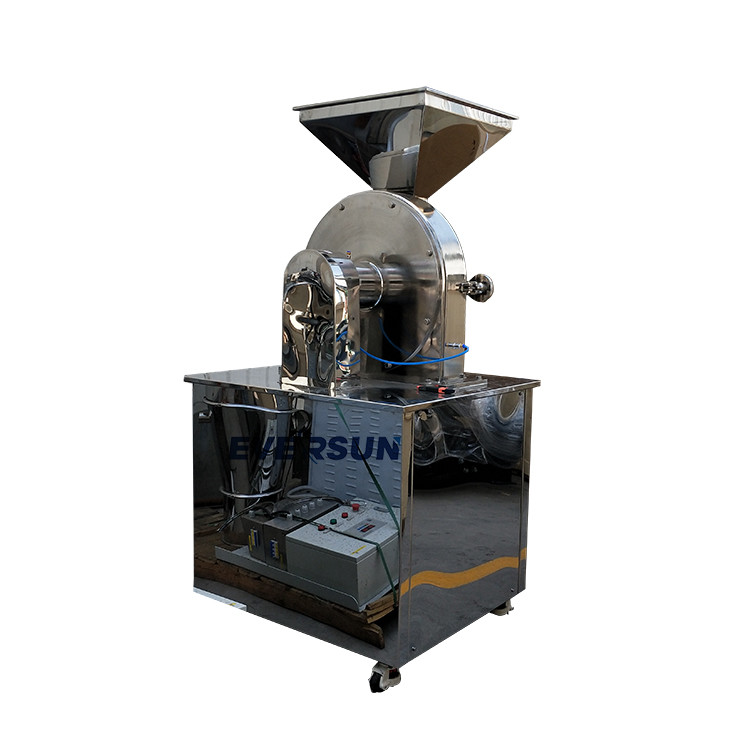

The universal crusher is a general-purpose industrial crushing equipment that adopts the impact crushing principle and can be widely used for crushing various brittle materials. It consists of a feed bin, a high-speed rotating rotor, a replaceable screen and a discharging device. The rotor is equipped with multiple crushing rods, which can exert strong impact on the feed materials when rotating at high speed, thereby effectively crushing the materials.
The universal crusher has many advantages such as high crushing efficiency, adjustable discharge particle size, simple structure, stable operation, convenient operation and maintenance, and low energy consumption. It is widely used in the crushing of raw materials in mining, metallurgy, chemical industry, building materials, food and other industries. . With its excellent performance and versatility, the universal crusher has become one of the indispensable and important crushing equipment in industrial production.
|
Model |
20B |
30B |
40B |
60B |
|
Output(kg/h) |
20-150 |
100-300 |
160-800 |
500-1500 |
|
Input material sizes(mm) |
6 |
10 |
12 |
15 |
|
Output fineness(mesh) |
60-150 |
60-120 |
60-150 |
60-150 |
|
Motor power(kw) |
4 |
5.5 |
7.5 |
18.5 |
|
Main rotating speed(rmp) |
4500 |
3800 |
3400 |
2800 |
|
Dimension(mm) |
550*600*1250 |
600*700*1450 |
800*900*1550 |
1000*900*1680 |
|
Weight(kg) |
250 |
320 |
550 |
850 |
1. High crushing efficiency: It can quickly and efficiently crush the feed materials to the required particle size.
2. Adjustable discharge particle size: By replacing the screen, the particle size of the discharged product can be adjusted.
3. Stable and reliable operation: simple structure, smooth operation and easy maintenance.
4. Lower energy consumption: Compared with other crushing equipment, the energy consumption is lower.
5. Strong applicability: It can be widely used in raw material crushing in various industrial fields.
1. Feeding bin:
Materials enter the crushing chamber from the feed bin. The design of the feed bin affects the uniformity of material feeding.
2.Rotor:
The rotor is the core component of the universal crusher, which rotates at high speed to produce powerful impact. The rotor is equipped with multiple crushing rods or crushing teeth for impact and crushing of materials.
The rotation speed of the rotor is one of the key factors affecting the crushing effect.
3. Screen mesh:
The screen is located under the rotor and is used to classify the crushed materials. The screen can be replaced as needed to adjust the discharge particle size.
4. Discharging device:
The discharging device is used to discharge qualified crushed products. Its design directly affects the material discharging effect.
5. Crushing cavity:
The crushing cavity is the main area where materials are crushed. The geometry of the crushing cavity will affect the material flow and crushing effect.
1. Mining industry:
Used to crush various ores, such as limestone, granite, iron ore, etc.
Provide raw materials with required particle size for smelting, building materials and other industries.
2. Metallurgical industry:
Used to crush metal ores required in steelmaking, casting and other processes.Metal scraps can be re-crushed and reused.
3. Chemical Industry:
Used to crush chemical raw materials, such as inorganic salts, inorganic acids, etc.
4. Building materials industry:
Used to crush mineral raw materials required for the production of cement, concrete, bricks, etc.
5. Food Industry:
Used for crushing grains, spices, medicinal materials and other brittle food raw materials.
6. Other industry:
It is also widely used in ceramics, glass, clay and other industries.
We support customizing various types of crushers, universal crushers, coarse crushers, ultra-fine crushers, and shredders. Whether you want to achieve coarse crushing, fine crushing or tearing of materials, you can find a suitable equipment in Eversun. In addition to single equipment, we can also design production lines for you.
