| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | DZSF |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Screen Frame: | Stainless Steel, Carbon Steel | Movement: | Linear |
|---|---|---|---|
| Usage: | Fine Particles Screening | Angle Of Oscillation: | 45~60 Degree |
| Application: | Mineral Processing, Coal, Chemical Industry | Keyword: | Rectangle Linear Screen Vibrator |
| Operation Mode: | Automatic | Layer Number: | 1-4 Layers |
| Sieving Layer: | Tailored | Condition: | New Condition |
| Colour: | According To Customer Requirements |
Product description
Linear screening is the "main force" of industrial screening operations and is indispensable in many production scenarios. It is structured as a whole cuboid, compact and orderly structure, mainly composed of screen box, vibration motor, shock absorber and screen. When working, the vibration motor outputs the exciting force and pushes the screen box to do reciprocating linear motion. After the material enters the screen box from the feed port, it is driven by the vibration force and jumps forward on the screen surface. Due to the different screen size, the material smaller than the screen hole quickly passes through the screen and falls, and the large particle material continues to move forward to the discharge port to complete the accurate screening. It has high screening accuracy, strong processing capacity, stable operation, simple operation and maintenance, and is widely used in mining, chemical, food and other industries, which greatly improves production efficiency.
Working principle
The working principle of the linear screen is based on the operation of the vibrating motor. After the vibration motor is energized, the internal eccentric block rotates at high speed, because the eccentric block's center of gravity deviates from the center of the motor shaft, generating a strong centrifugal force, which causes the motor vibration, and transmits this vibration force to the screen box. The screen box is connected with the frame by a shock absorber such as a spring. Under the action of exciting force, the screen box moves in a reciprocating straight line in a given direction. The material enters the screen box from the feed port. Under the influence of vibration force, it jumps on the screen surface and moves towards the discharge port. Due to the difference in the size of the screen, the material smaller than the size of the screen is separated through the screen during the jumping process, and the material larger than the screen continues to move to the discharge port to achieve efficient screening of materials of different particle sizes.
Product features
1. Efficient screening: The linear motion of the screen surface enables the material to pass quickly and the processing capacity is large, while the multi-layer screen design can achieve high-precision screening and accurately separate materials of different particle sizes.
2. Stable operation: solid structure, reliable quality of key components, the use of advanced vibration technology, can ensure long-term stable operation of equipment, low incidence of failure.
3. Wide range of application: can be used in a variety of industries, dry, wet, viscous and other different characteristics of granular, powdered materials can be effectively screened.
4. Easy maintenance: the connection of each component is easy to disassemble and install, and the replacement of vulnerable parts such as screens and springs is easy, which can reduce maintenance costs and downtime.
5. Environmental protection and energy saving: usually take shock absorption and sealing measures, low noise, less dust, in line with environmental requirements, and vibration motor energy consumption is relatively low, more energy saving.
Product parameter
| Model | Layer | Screening Area(mm) |
Mesh size(mm) | Particle Size(mm) |
Capacity(t/h) | Power (kw) |
Double Amplitude(mm) |
| DZSF-612 | 1 to 5 | 600*1200 | 0.02-20 | ≤20 | ≤3 | 0.37×2 | 6 to 10 |
| DZSF-520 | 1 to 5 | 500*2000 | 0.02-20 | ≤20 | ≤5 | 0.37×2 | 6 to 10 |
| DZSF-525 | 1 to 5 | 500*2500 | 0.02-20 | ≤20 | ≤8 | 0.37×2 | 6 to 10 |
| DZSF-1020 | 1 to 5 | 1000*2000 | 0.02-20 | ≤20 | ≤12 | 0.75×2 | 6 to 10 |
| DZSF-1025 | 1 to 5 | 1000*2500 | 0.02-20 | ≤20 | ≤16 | 0.75×2 | 6 to 10 |
| DZSF-1030 | 1 to 5 | 1000*3000 | 0.02-20 | ≤20 | ≤20 | 1.1×2 | 6 to 10 |
| DZSF-1224 | 1 to 5 | 1200*2400 | 0.02-20 | ≤20 | ≤23 | 1.5×2 | 6 to 10 |
| DZSF-1525 | 1 to 5 | 1500*2500 | 0.02-20 | ≤20 | ≤28 | 1.5×2 | 6 to 10 |
| DZSF-1530 | 1 to 5 | 1500*3000 | 0.02-20 | ≤20 | ≤32 | 2.2×2 | 6 to 10 |

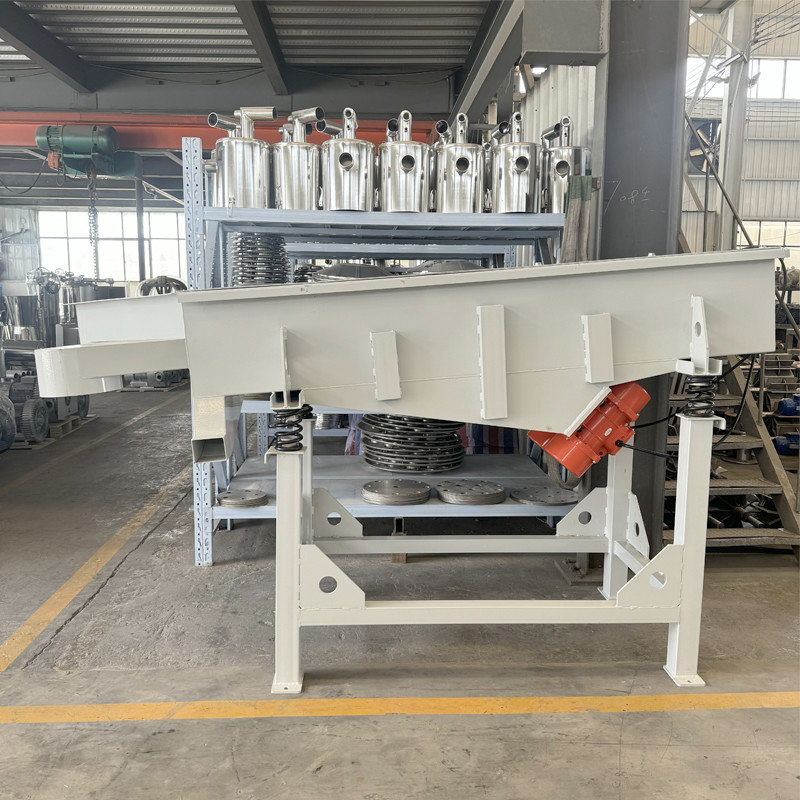

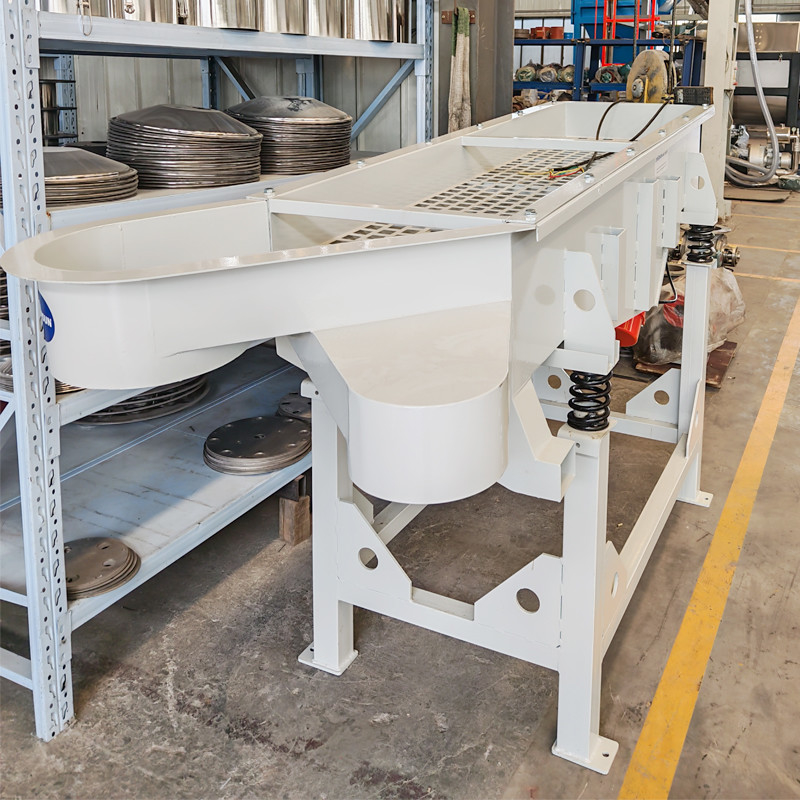

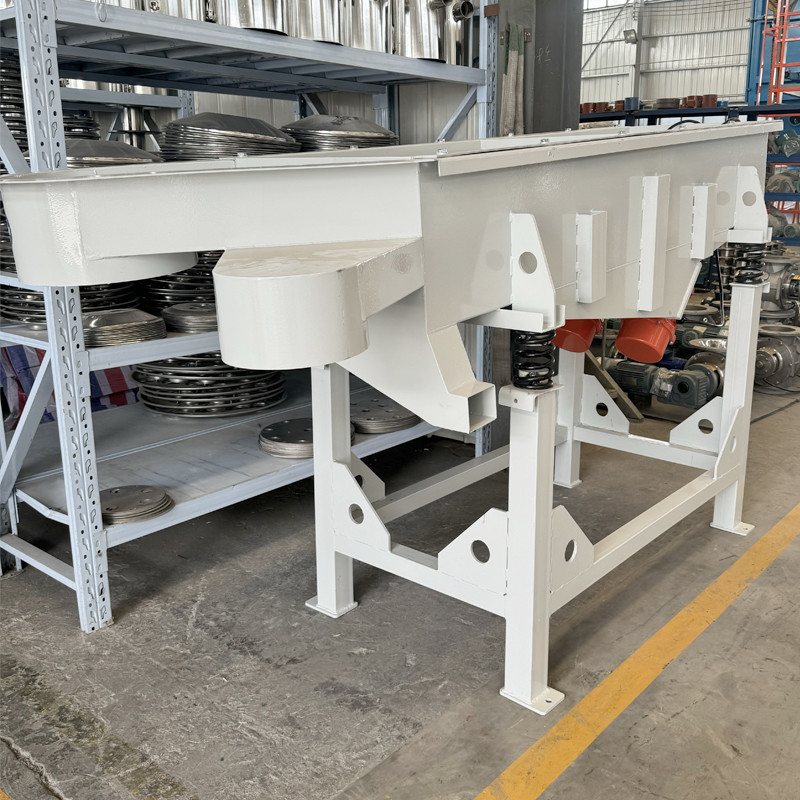

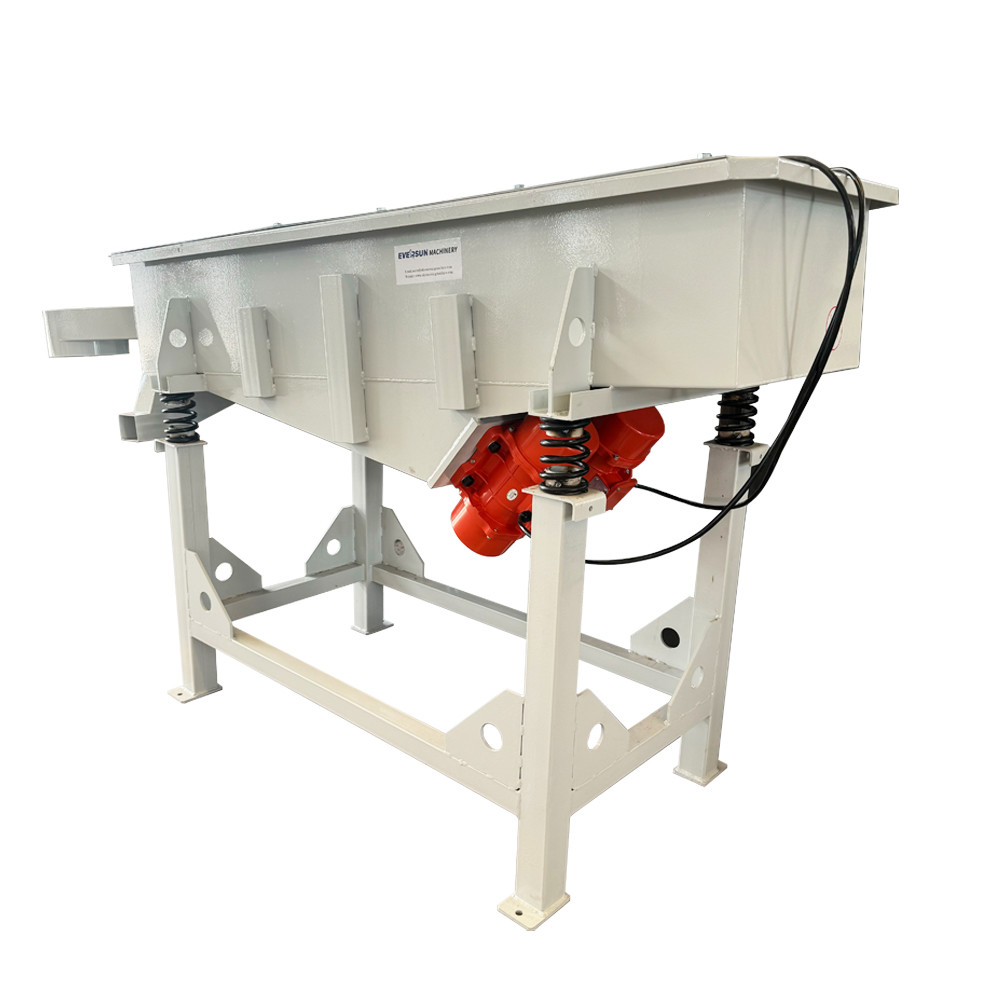

Product details
