Ribbon Blender

Product description

Horizontal ribbon mixers can be called the effective force in the mixing field, it is known for efficient mixing, by double or multi-layer ribbon unique opposite rotation design, to build a high speed channel of material convection circulation, a short time to allow materials to blend evenly, greatly increasing production capacity in mass production. Its mixing uniformity is commendable, and materials of different densities and particle sizes are fully interspersed by convective circulation, which can accurately ensure the stability and consistency of product quality and meet the requirements of harsh industries for mixing accuracy. Moreover, it has excellent material shape inclusiveness, powder, particles, semi-fluid materials can be treated efficiently, and it is widely used in food, chemical, agriculture, medicine and other industries. In terms of structural design, the U-shaped horizontal cylinder effectively reduces the movement resistance of the material, the compact figure reduces the footprint, and is equipped with components that are easy to disassemble and maintain. The operation is simple and the maintenance cost is low, providing a solid guarantee for the continuity of production.

Working principle

The working principle of horizontal ribbon mixer is very scientific and efficient. The double-layer or multi-layer spiral belt blade installed inside it runs in an orderly manner closely around the horizontal axis. When the device is started, the outer screw belt rotates in a clockwise direction and pushes the material on both sides of the U-shaped cylinder to the center continuously by means of the spiral profile; At the same time, the inner screw belt rotates counterclockwise to transport the material in the center of the cylinder to both sides. Under the action of the material flow in the opposite direction, a strong and stable convective circulation is formed in the cylinder. Materials with different densities and different particle sizes continue to interpenetrate, collide and blend with each other in the convection cycle, and the originally dispersed materials can be quickly and evenly mixed together, and then achieve high-quality mixing effect in a short time to meet the diversified production needs of various industries.

Product features

High mixing efficiency: With double or multi-layer screw belt structure, the outer screw belt will push the material from both sides of the cylinder to the center quickly, and the inner screw belt will reverse the material from the center to both sides, forming a strong convective circulation, greatly shortening the mixing time to meet the needs of large-scale production capacity.

Excellent mixing uniformity: In the convection cycle, materials with different densities and particle sizes are fully interspersed and collided with each other, accurately ensuring stable and consistent product quality and meeting strict mixing accuracy requirements.

Wide range of applicable materials: whether it is powder, granular materials with good fluidity, or semi-fluid materials with certain viscosity, it can be easily handled, and is widely used in food, chemical, agriculture, medicine and other fields.

Reasonable structure design: U-shaped horizontal cylinder reduces the movement resistance of materials and reduces energy consumption; The overall structure is compact, saves floor space, and is easy to install in different sites.

Easy operation and maintenance: Easy disassembly of each component, conducive to daily cleaning, maintenance and replacement of wearing parts, reduce maintenance costs and downtime, and ensure production continuity.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

































































Product details

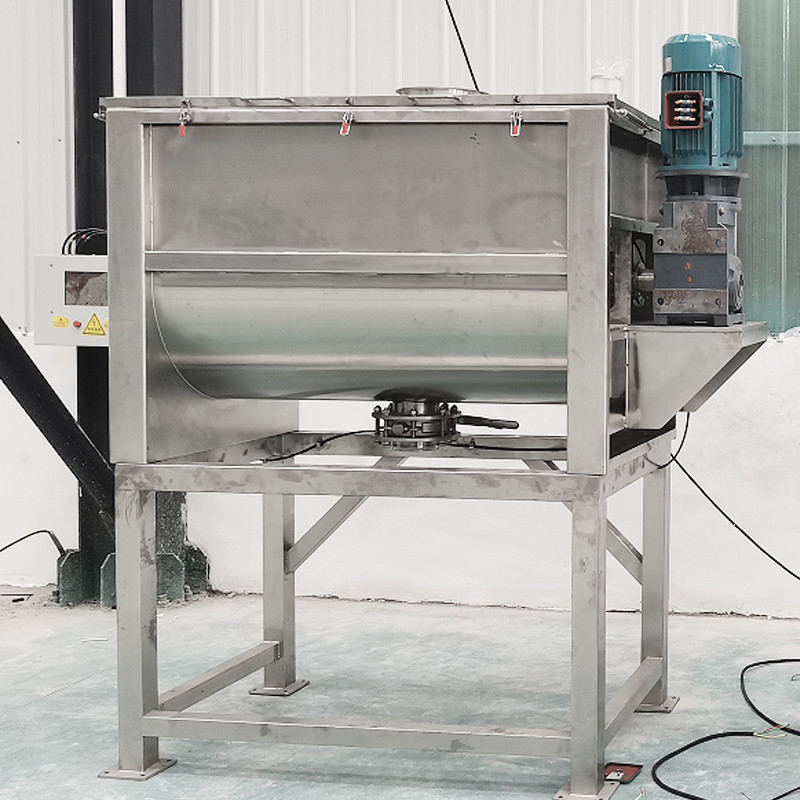

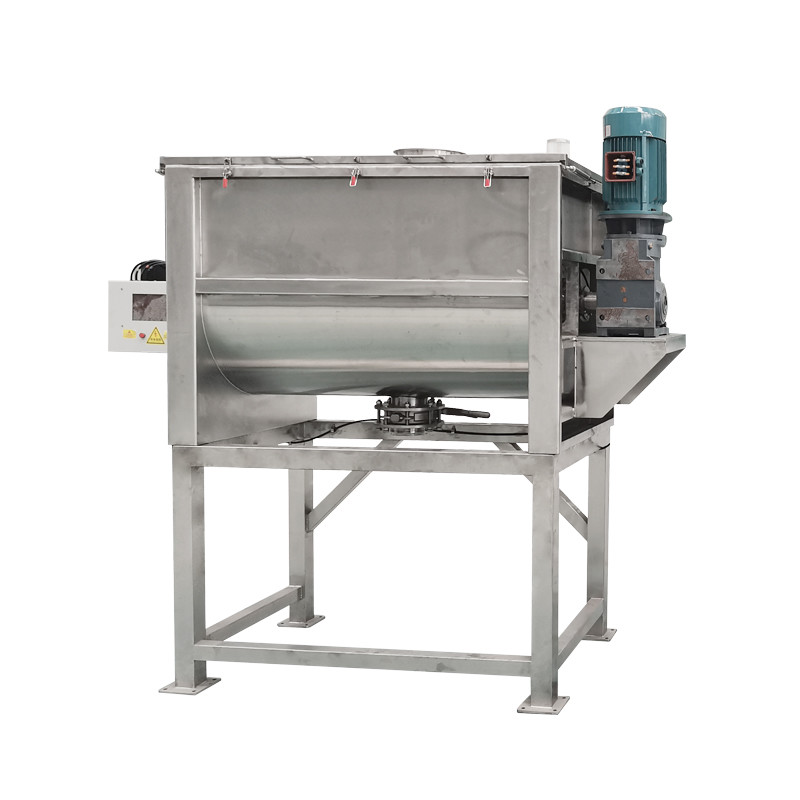

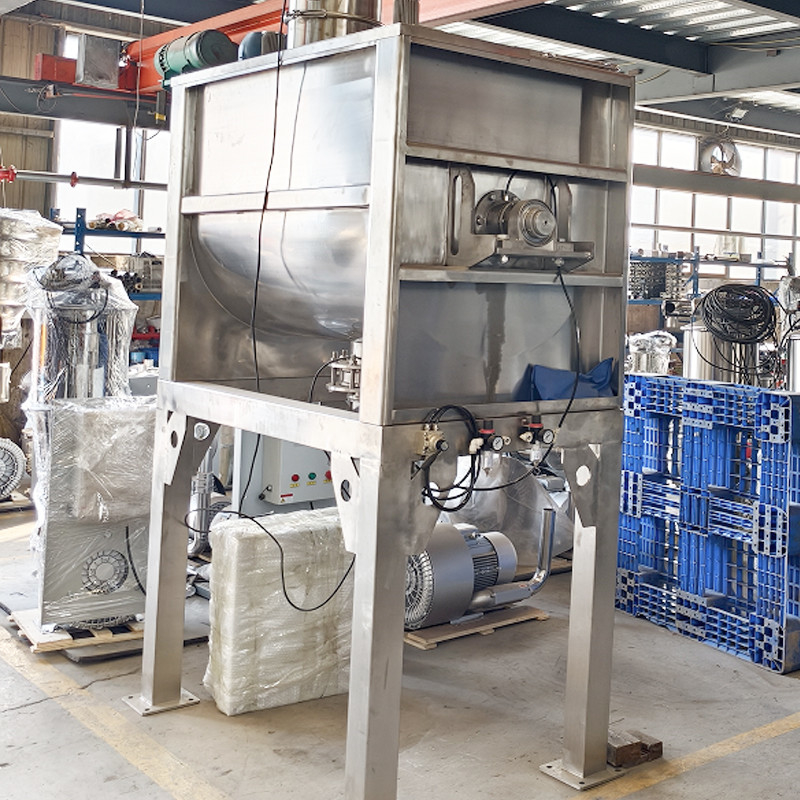

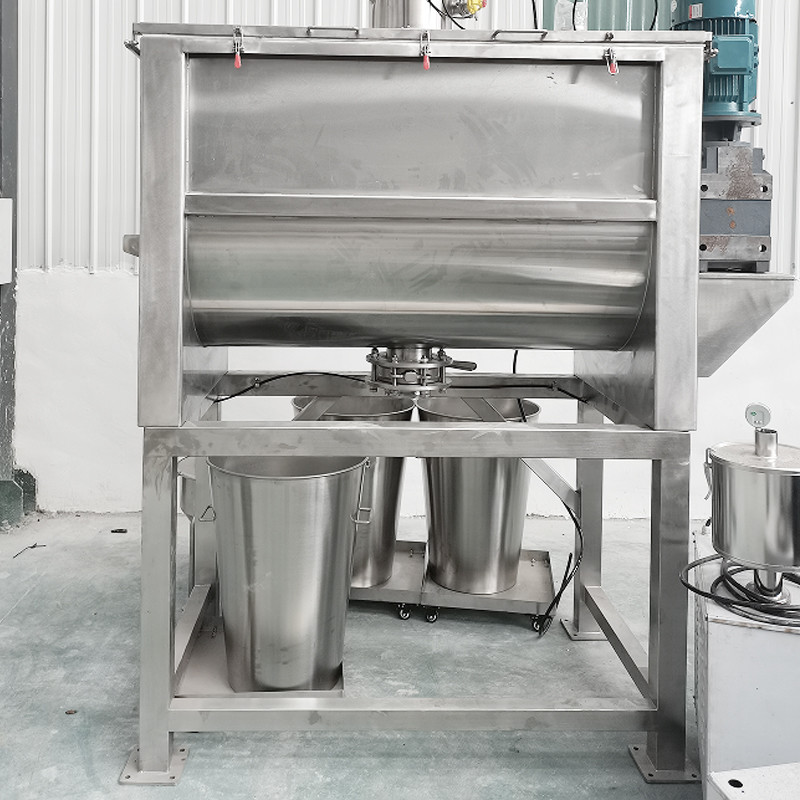

Product display

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
