Powder Screw Ribbon Mixer , Efficient Mixing Equipment For Dry And Wet Materials

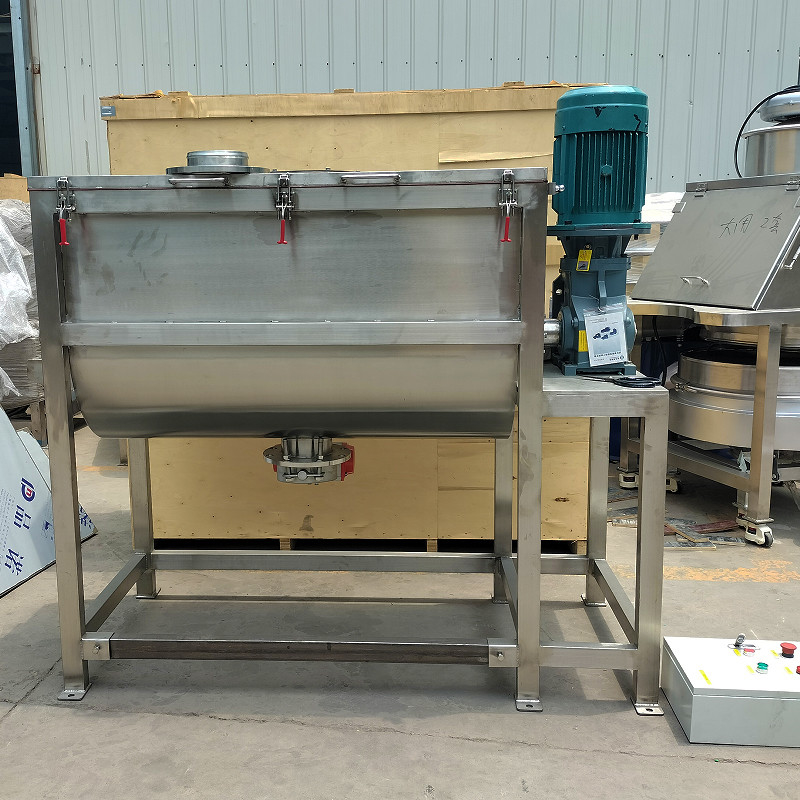

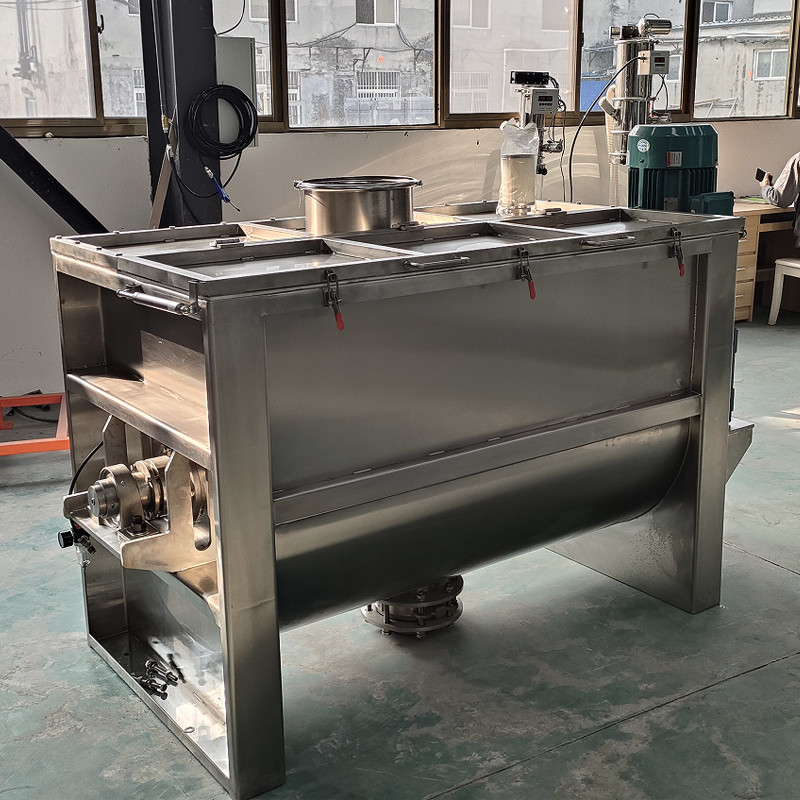

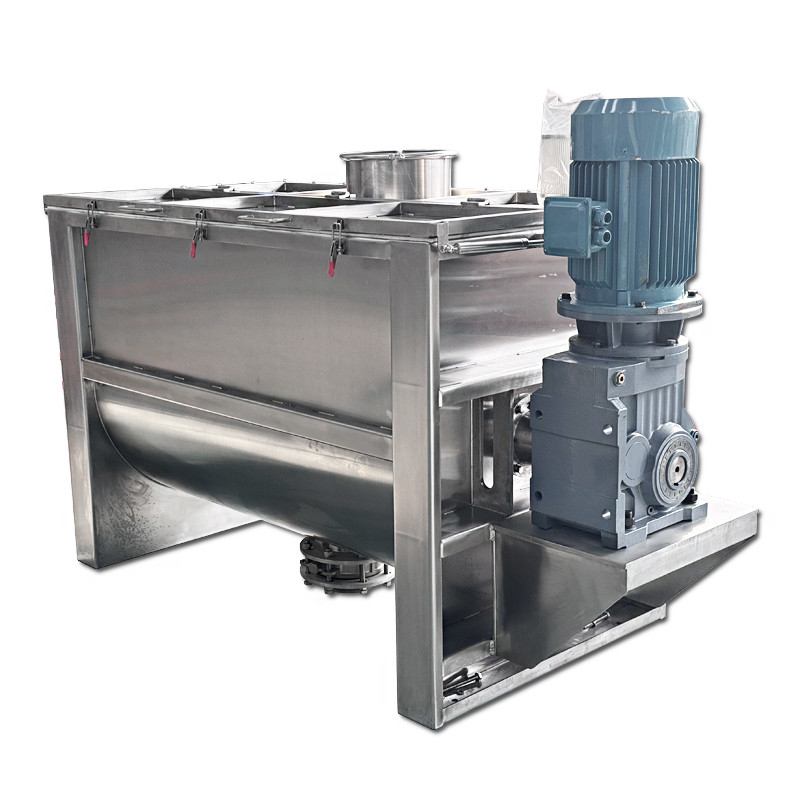

The horizontal screw mixer consists of a U-shaped cylinder, screw stirring blades, and

transmission components; the screw blades are usually made in two layers with the outer

layer screws gathering the material from both sides to the center and the inner layer

screws conveying the material from the center to both sides, forming a conv mixture. The

stirring components can also be made in a paddle shape or with added flying knives to

adapt to different materials. The cylinder cover can be made in anched shape or fully open,

with the arched shape being able to withstand pressure and the fully open design facilitating

the cleaning of the inside of the equipment. The of this machine are its wide range of

applications, high uniformity of mixing, short mixing time, and large loading coefficient.

The horizontal mixer cylinder body has an outlet at the bottom center, and the helical

structure of the outer spiral band cooperates with the direction of the main shaft to drive the

material on the inner side of the cylinder wall to the central outlet, ensuring that the material

in the cylinder is discharged without dead corners. The horizontal mixer accelerates the

surface contact between two or more objects when mixing materials, which can promote

chemical reactions between the two materials and also bring physical changes. The

horizontal mixer can evenly stir two different materials and make two completely different

materials blend, so that the two materials can depend on each other, increasing availability

of the materials.

1. Flexible disassembly: The main shaft of the screw needs to be connected to the flange of

the drive shaft When maintaining or repairing the horizontal screw mixer, or when changing

the type of stirring shaft, the entire disassembly is very quick. Because the design of the dis

is very convenient, the U-shaped cylinder and the two end plates can be completely welded,

avoiding the accumulation of materials due to the large size of the cylinder and existence of

gaps when connected to the flange. This also better reduces the possibility of residues.

2. Convenient cylinder cover design: The overall design of the cylinder is more flexible,

meeting the requirements of half-open, fully open, and completely closed. The fully open

design is more suitable for occasions with higher cleanliness requirements. cylinder cover

door is supported by gas springs, providing higher safety.

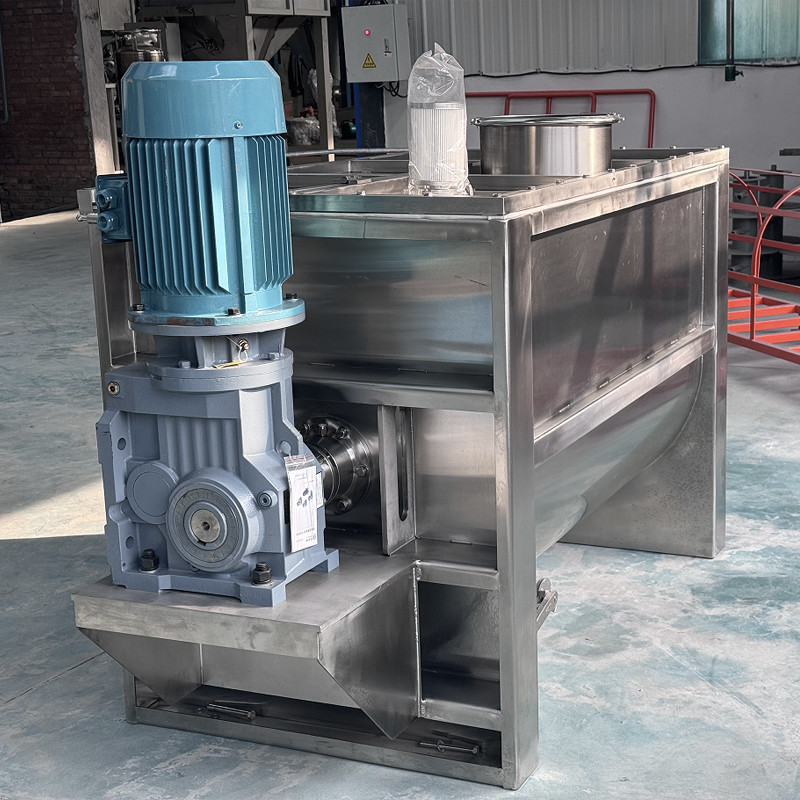

3. Driving advantage: All products are selected according to standard requirements. The

driving method uses a-connected gear reducer. Although this design has a large torque, it has

good reliability and very low noise. For larger mixers, a belt transmission design is added In

case of accidents, the transmission components can be effectively protected.

4. Stable mixing process: A stable mixing process reduces damage to fragile materials, and

the addition a flying knife structure also serves a crushing function.

5. Not affected by particle size: Under feasible factors, the mixing effect of the horizontal screw

mixer is not by the size or density of the particles. It also has a good mixing effect on viscous

materials.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500



The product has a wide range of applications, capable of mixing powders withpowders,

powders with liquids, and especially able to stir paste, viscous, or high-density materials (such

as putty, texture paint, metal powder, etc.). It is widely used in pharmaceuticals, food,, dyes,

chemicals, plastics, ceramics, coatings, putty, mortar, and other fields.
