| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | EQLS |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Features: | High Efficiency, Easy To Clean | Application: | Separation And Filtration |
|---|---|---|---|
| Warranty: | 1 Year | Noise Level: | Less Than 80 DB |
| Voltage: | 220V/380V | Power: | Electric |
| Cleaning System: | Brush Or Air Jet | Screen Material: | Metal Woven Mesh |
| Feature: | High Precision | Surface Treatment: | Mirror Polishing/sand Blasting |
| Sifter Type: | Centrifugal | ||
| Highlight: | Stainless Steel vibrating screen,Carbon Steel vibrating screen separator,Multilayer vibrating screen separator |
||
Product description
Airflow screen is an efficient and unique screening equipment. Its overall structure is compact and ingenious, mainly composed of feeding device, screen assembly, air flow generation device and other parts. When working, the material enters the screening area evenly through the feeding device, at the same time, a strong air flow is generated by the air flow generator, forming a strong air flow field. Under the action of the air flow, the material is blown and suspended in it, the fine particles pass through the screen successfully under the air flow to complete the screening process, while the larger particles are intercepted on the screen and then discharged through a specific channel. This method of air assisted screening greatly improves the screening efficiency, and can quickly and accurately classify and screen all kinds of powdery and granular materials. It is widely used in many industries such as chemical industry, food industry, medicine industry, mining industry, and provides a reliable and efficient solution for material separation in the production process.
Working principle
The airflow screen operates on the theory of gas-solid two-phase flow. The material enters the screen from the feed port, and the high-speed air generated by the high pressure fan is injected synchronously. Under the strong impact force and binding force of the air flow, the material is rapidly dispersed, the agglomeration state between the particles is broken, and the gas-solid mixed flow is formed. The mixed flow goes straight to the screen, and the material particles with smaller particle size than the screen hole pass through the screen smoothly under the push of the air flow and become the products under the screen. The material with particle size larger than the sieve hole is blocked by the screen, cannot pass through, and continues to be washed and rolled on the surface of the screen until it is taken to the discharge port, thus achieving accurate and efficient screening and grading of materials with different particle sizes.
Product characteristics
Efficient screening: The use of air flow as a power, so that the material in the suspended state of screening, to avoid the agglomeration and blockage of the material, greatly improve the screening efficiency, can handle a large number of materials, screening accuracy is also high.
Adjustable accuracy: By adjusting the flow speed, pressure and mesh of the screen and other parameters, the accuracy of the screening can be flexibly controlled to meet the requirements of different materials and different production processes for screening accuracy.
Wide range of application: can be applied to a variety of powder, granular material screening, including chemical raw materials, food additives, medical powder, metal powder, non-metallic mineral powder, etc., for different properties of materials can achieve better screening effect.
Compact structure: The overall structure is relatively simple and compact, the footprint is small, easy to install and maintain, and can be easily integrated into various production lines without taking up too much space.
Environmental protection and energy saving: In the screening process, the air flow is recycled in a relatively closed system, which reduces the flying of dust, reduces the pollution to the environment, and saves energy.
High degree of automation: it can be equipped with automatic control system to realize the automatic operation of feeding, screening, discharging and other processes, reduce manual intervention, improve the stability and consistency of production, and reduce labor intensity and labor costs.
Application
1. Chemical industry: Used for the screening of light calcium powder, active calcium powder, zinc oxide powder, graphite powder, manganese dioxide, sulfur powder, alumina powder, magnesium oxide powder and other chemical raw materials.
2. Pharmaceutical industry: It can be used for the screening of traditional Chinese medicine, western medicine intermediate powder, etc., to ensure that the particle size of the drug raw materials meets the requirements and to ensure the quality of the drugs.
3. industry: It is suitable for the screening of food raw materials such as flour, milk powder, sugar powder, starch, fruit and vegetable powder, hawthorn, etc., to improve the quality and taste of food.
4. Paper industry: Used for the screening of fillers, pigments and other powdery materials in papermaking, to improve the quality and performance of paper.
5. Metallurgical industry: It can be used for the screening of metal powders such as powder and zinc powder, to meet the requirements of powder particle size in the metallurgical production process.
6. Building materials industry: It is often used for the screening materials such as cement, gypsum powder, quartz sand powder, perlite powder, etc., to ensure the quality of building materials products.
| Model | Screen cage size(mm) (diameter*length) |
Screen material | Structure material | Mesh size | Power (kw) |
| EQLS-18065 | 180mm*650mm | Stainless steel or Nylon screen |
Q235A | ≤1000 | 2.2 |
| SUS304 | |||||
| EQLS-30010 | 300mm*1000mm | Q235A | ≤1000 | 4 | |
| SUS304 | |||||
| EQLS-50013 | 500mm*1300mm | Q235A | ≤1000 | 5 | |
| SUS304 | |||||
| Machine can be customized based on your need | |||||

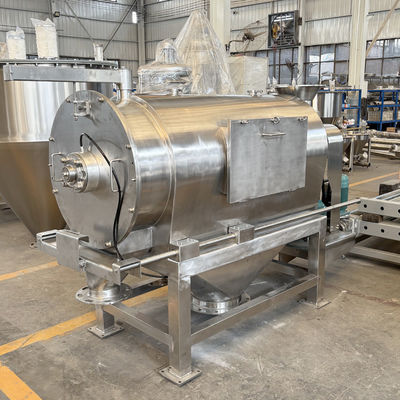

Product details
Product shows
Packaging & Shipping
Why choose us
About us
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you. Our factory address: West of the industrial and commercial office of Da Zhaoying Town, Xinxiang City, Henan Province.
