| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | EQLS |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Features: | High Efficiency, Low Noise, Easy To Clean | Gas Flow: | 240-460 Or Customized |
|---|---|---|---|
| Function: | Screening/separation | Noise Level: | Low |
| Voltage: | 220V/380V/415V | Feed Particle Siz: | <1-10(mm) |
| Screen Tube: | Stainless Steel Screen Tube | Frequency: | 50Hz/60Hz |
| Screen Layer: | Single | Application: | Powder And Granular Materials |
| Advantage: | Low Noise Level | Sieving Precision: | 2~1000 |
| Customized Service: | Available | ||
| Highlight: | Electromagnetic Powder Metal Vibrating Screen,Small Vibrating Screen,Stainless Steel Airflow Sieve |
||

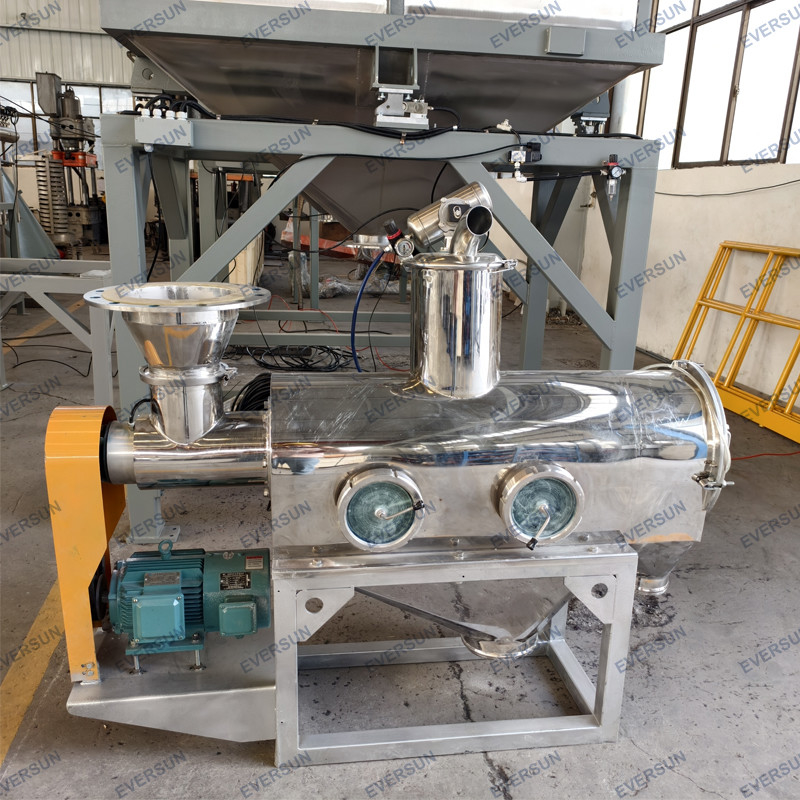

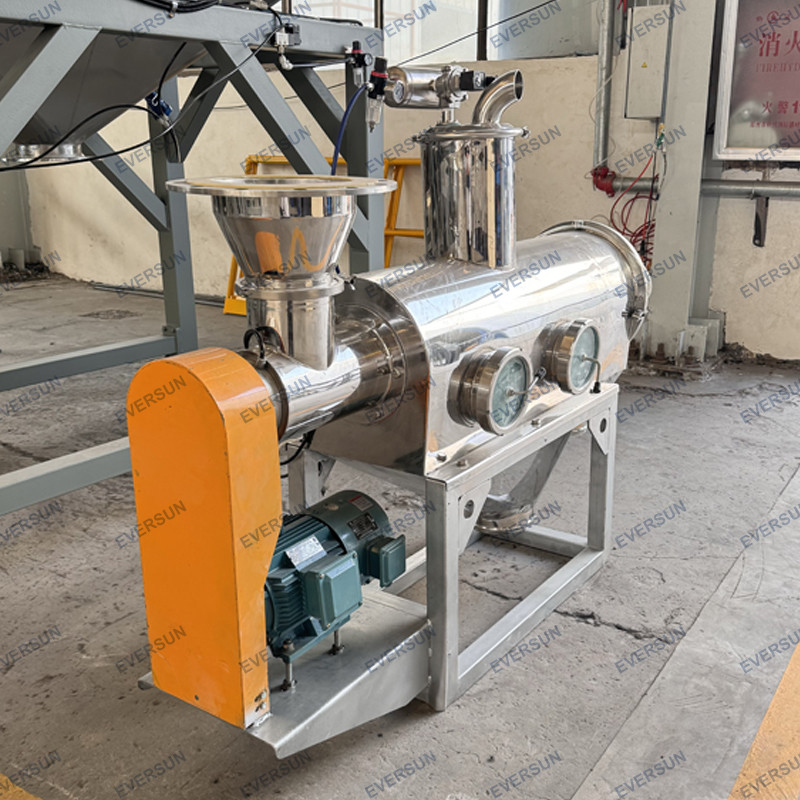

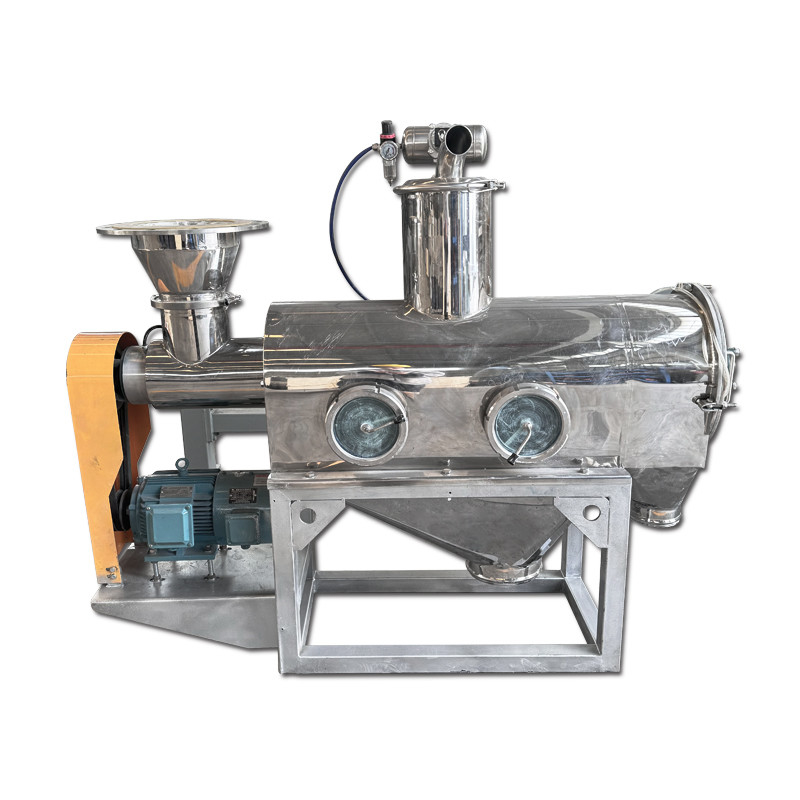

Air flow screen, is a high-precision screening equipment for fine powder, which
can continuously screen powdery materials with a fineness range of80-500 meshes,
and the screen can be replaced arbitrarily. The air flow screening machine (air flow
screen) has high screening efficiency, large output precise fineness, no over-size
mixing phenomenon, vertical screen installation without load, long service life, wide
range of fineness, fully enclosed structure, no dust overflow low noise, low energy
consumption, continuous operation, and convenient maintenance.
The main working structures of the horizontal airflow screen are the feed and
discharge ports, the screen cylinder, the spiral conveying system, the wind wheel
blades and the vibration motor, etc. After the material initially enters the feed port,
it is sent into the screen cylinder by the spiral conveying system, and then it is by
the wind wheel blades, the material produces centrifugal force suspension, and at
the same time, the material particles are separated from each other to form
independent individuals, are sprayed over the screen under the action of the
cyclone, and the materials of different specifications are discharged from different
outlets. The horizontal airflow screen is also mainly to screen fine powdery materials.
1. High screening efficiency: The permeability can reach 85-95%.
2. Large output: It can be by 5-10 times or even higher compared to ordinary
vibrating screens.
3. Wide range of fineness: It can screen and classify powdery materials 80-500 mesh
(ordinary vibrating screens can hardly screen and classify powdery materials above
200 mesh).
4. Closed structure: No overflow, no pollution to the environment.
5. Vertical installation of the screen: No load, longer service life, and easier screen
replacement.
6. Accurate screening classification standards: No over-size mixing phenomenon, and
the residue is 0 (ordinary vibrating screens can hardly achieve this).
7. Simple installation: Easy operation and.
8. Low noise and low power consumption.
9. Special design can be made: To meet special needs.
10. Reliable quality: It can operate continuously a long time.
11. It has the function of re-crushing lumpy materials.
12. The screen is brushed by the cyclone: It can automatically the screen.
13. The shell structure is novel: Simple installation and convenient control.
| Model | Screen cage size(mm) (diameter*length) |
Screen material | Structure material | Mesh size | Power (kw) |
| EQLS-18065 | 180mm*650mm | Stainless steel or Nylon screen |
Q235A | ≤1000 | 2.2 |
| SUS304 | |||||
| EQLS-30010 | 300mm*1000mm | Q235A | ≤1000 | 4 | |
| SUS304 | |||||
| EQLS-50013 | 500mm*1300mm | Q235A | ≤1000 | 5 | |
| SUS304 | |||||
| Machine can be customized based on your need | |||||
1. Chemical industry: Used for the screening of light calcium powder, active calcium
powder, zinc oxide powder, graphite powder, manganese dioxide, sulfur powder,
alumina powder, magnesium oxide powder and other chemical raw materials.
2. Pharmaceutical industry: It can be used for the screening of traditional Chinese medicine,
western medicine intermediate powder, etc., to ensure that the particle size of the drug raw
materials meets the requirements and to ensure the quality of the drugs.
3. industry: It is suitable for the screening of food raw materials such as flour, milk powder,
sugar powder, starch, fruit and vegetable powder, hawthorn, etc., to improve the quality and
taste of food.
4. Paper industry: Used for the screening of fillers, pigments and other powdery materials in
papermaking, to improve the quality and performance of paper.
5. Metallurgical industry: It can be used for the screening of metal powders such as powder
and zinc powder, to meet the requirements of powder particle size in the metallurgical
production process.
6. Building materials industry: It is often used for the screening materials such as cement,
gypsum powder, quartz sand powder, perlite powder, etc., to ensure the quality of building
materials products.
We have been specializing in the production of Screening and conveying equipment for
13 years. China's vibrating screen industry top three. And we have done matching and
OEM for many large companies. Including the world's top vibrating screen manufacturer,
Sweco, USA, we have OEM for his China region. And our products are often exported to
Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
