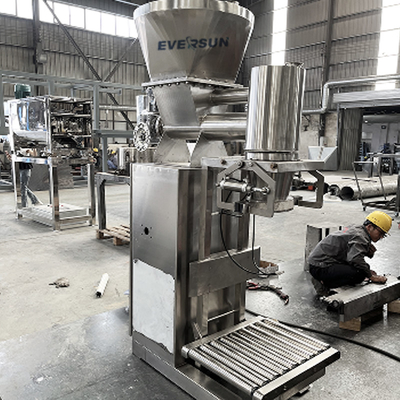

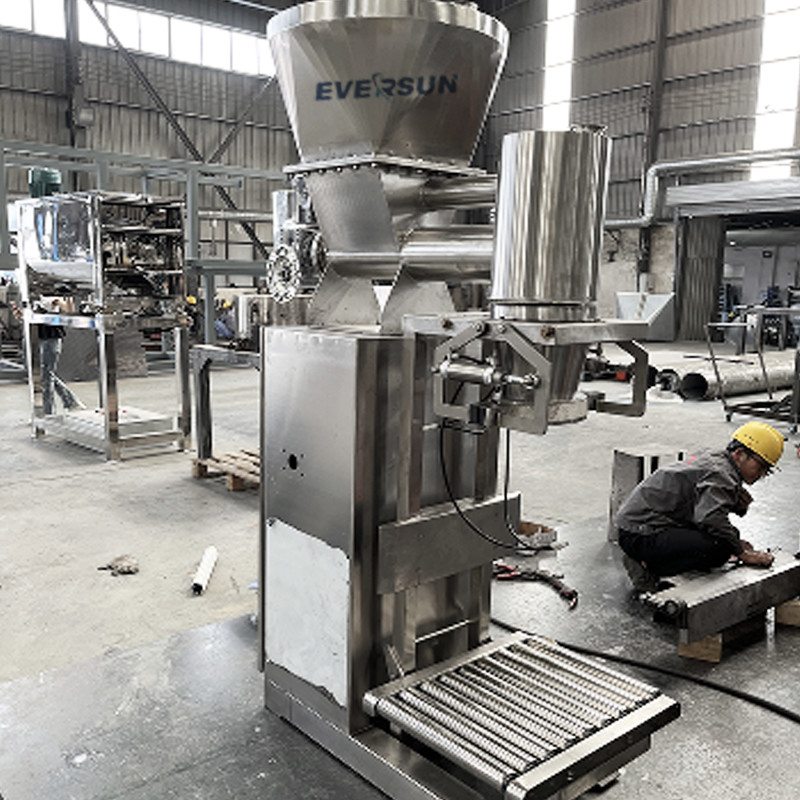

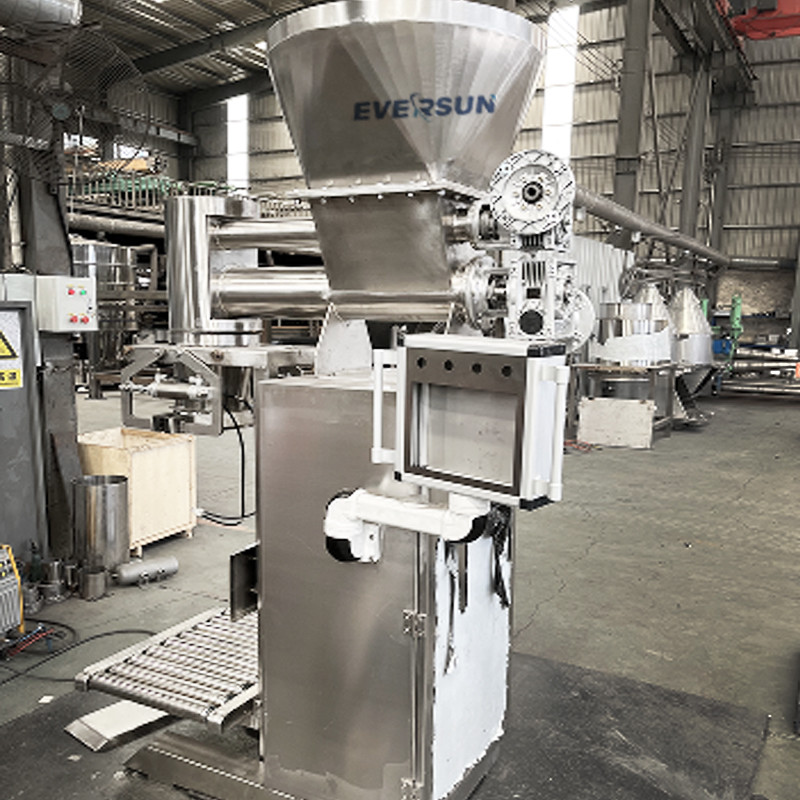

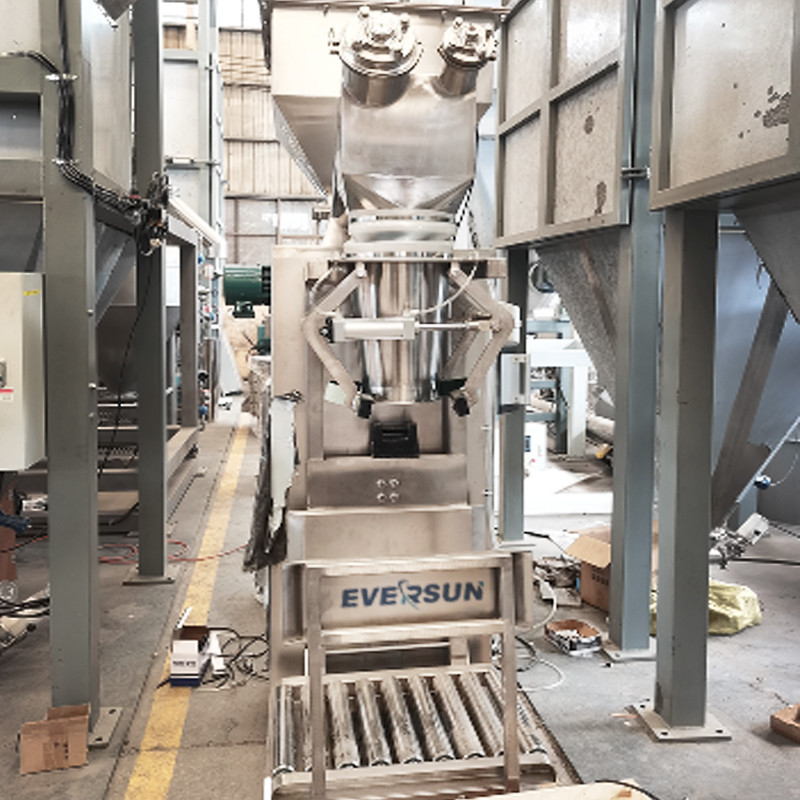

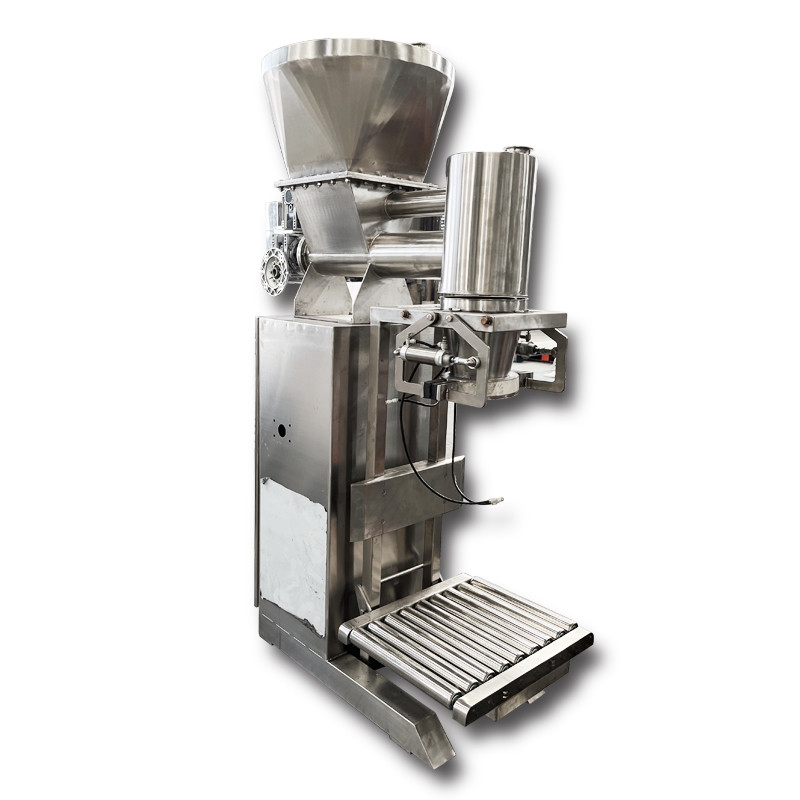

The quantitative automatic packaging machine is a system that uses intelligent
technology to accurately weigh materials, then clamps the bags with a clamping
device, automatically the materials into the bags, and then moves to the sealing
section for sealing.





When the quantitative packaging machine enters the automatic operation state, the
weighing control system opens the feeding door to start feeding. This feeding device
has feeding modes: fast, medium, and slow. When the material weight reaches the
fast feeding set value, the fast feeding stops and the medium feeding continues.
When material weight reaches the medium feeding set value, the medium feeding
stops and the slow feeding continues. When the material weight reaches the final set
value, the feeding door closed, and the dynamic weighing process is completed.
At this point, the system checks whether the bag clamping device is in the
predetermined state. Once the packaging is securely clamped, the system sends a
control signal to open the discharge door of the weighing hopper, and the material
enters the packaging bag. After the is completely discharged, the discharge door of
the weighing hopper is automatically closed. After the material is emptied, the bag
clamping device is released, and the bag falls off automatically. After the packaging
bag falls off, it is sewn and conveyed to the next station. This process repeats
automatically.


1. Touchscreen control system, supports Chinese and English, easy and efficient
operation.

2. The vibrating feeder operates smoothly, not damage the material, and uses precise
counting control equipment to ensure accuracy, eliminating negative errors. Each feeder
in the equipment can be turned on or off as needed production.

3. Each material tray is equipped with a full material shutdown, low material alarm or
shutdown device to ensure accuracy. The equipment has a self-diagnosis, which can
automatically alarm or shut down in case of failure (users can choose to alarm or shut
down), and is equipped with multiple emergency stop buttons for convenient operation.

4. The equipment can achieve automatic arrangement, counting, filling, sealing,
packaging, conveying, selection, and boxing of materials. The number of products can
be easily adjusted, the number of bags packaged can be controlled, and the number of
packages can be automatically displayed, making it easy to calculate the machine's.

5. The equipment has reliable safety protection functions (all dangerous parts are
equipped with safety protection devices).

6. Highly compatible, it can meet the packaging requirements more than 90% of different
shaped parts on the market.

7. By adding a conveying hopper, it can support automatic packaging of various accessories,
smoother and faster movement during the conveying process, ensuring safety and low noise.

8. Equipment can be customized according to customer requirements, including the addition
of vibrating disks loaders, bag punching devices, coders, finished product conveyors, etc.
