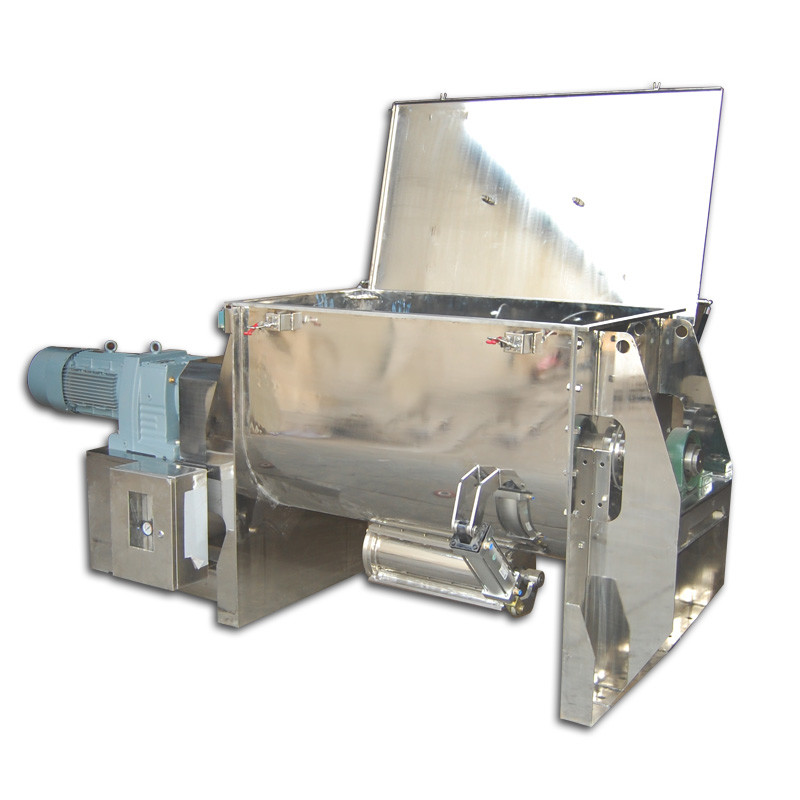

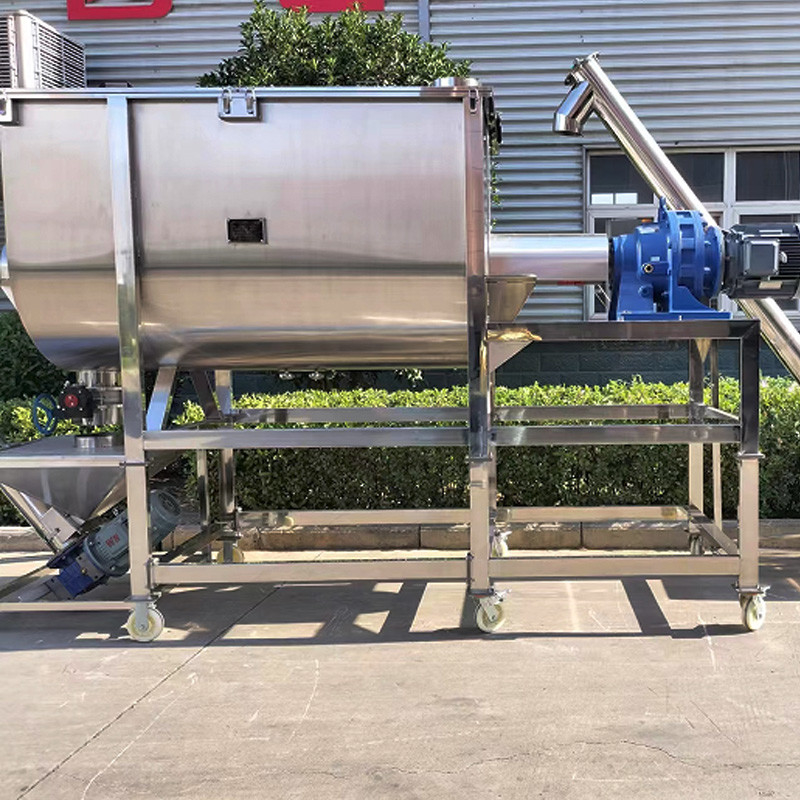

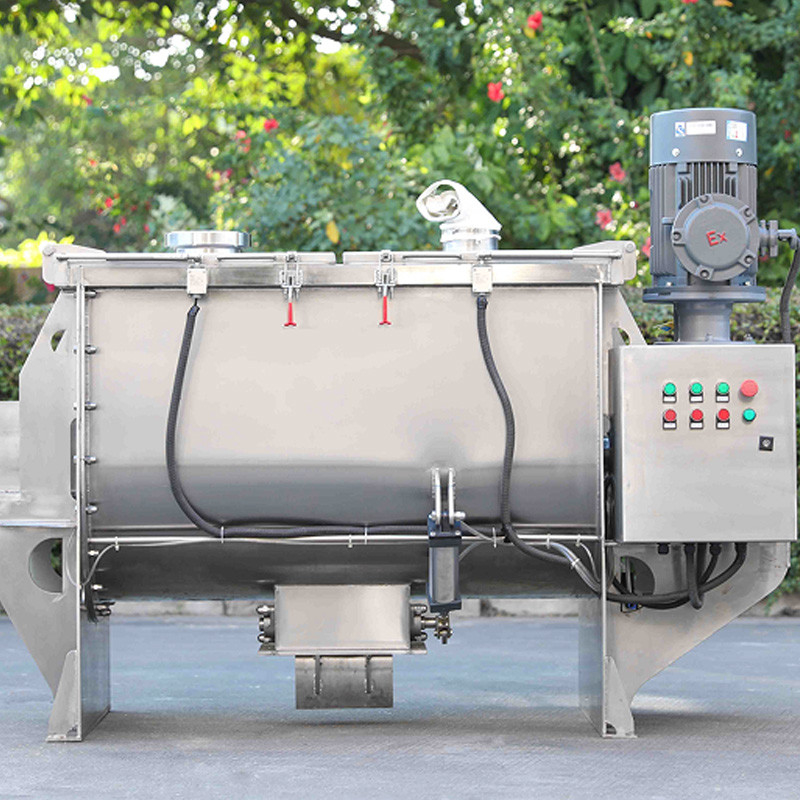

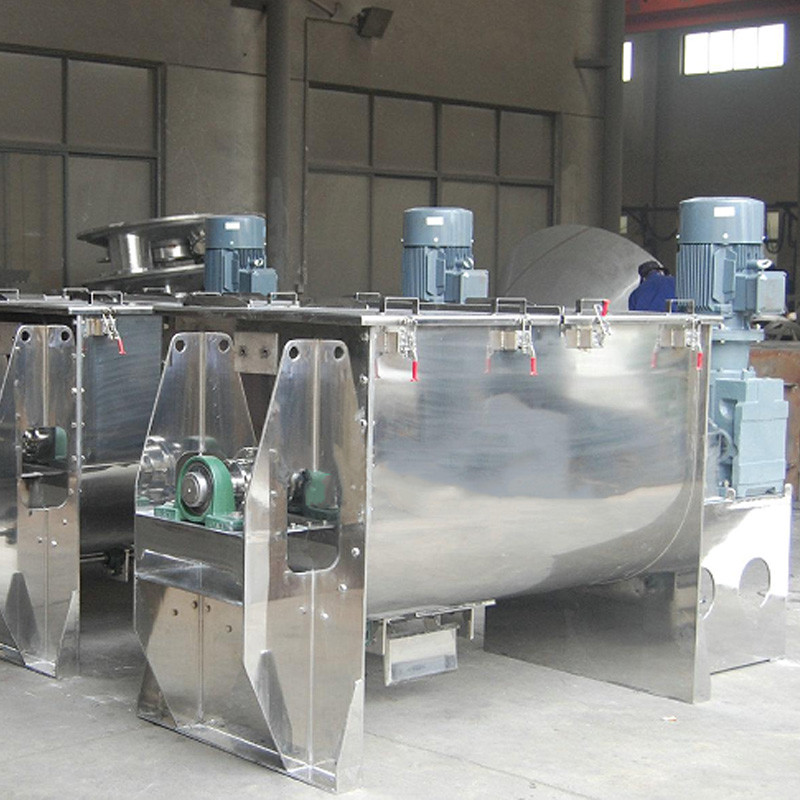

High yield stainless steel supports customization Ribbon Blender Machine for powder particle mixers

The mixing space is in the form of a U-shaped horizontal cylinder, with an integral

screw ribbon shaft inside the cylinder. The motor reducer is at the end face of the

main equipment, ensuring stable mixing with minimal damage to crystals. During

mixing, all materials are in a state of overall movement, requiring power and

relatively short mixing time. It is mainly used for mixing powders with powders or

viscous materials. A large amount of liquid can be sprayed into materials during

mixing, and the materials can be in the form of solid powders or viscous substances

throughout the mixing process.

The rotating main shaft of the mixer is equipped with double-layer spiral blades.

The inner spiral conveys the material to the outer side, the outer spiral gathers

the material towards the center. Under the convection movement of the

double-layer spiral, a low-power and high-efficiency mixing environment is

formed The inner and outer radial spirals installed on the stirring shaft drive the

material in the drum, allowing the stirrer to mix the material over the largest

possible range the drum. During the operation of the mixing device, the inner

screw drives the material near the axis center to rotate, pushing it axially from

the inside to sides. The outer screw drives the material near the drum wall to

rotate, pushing it axially from the sides towards the center. The mixed materials

can be uniformly in a short time.

1. It is composed of a U-shaped container, screw ribbon agitator blades, and

transmission components.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500



The product has a wide range of applications, capable of mixing powders with

powders, powders with liquids, and especially able to stir paste, viscous, or

high-density materials (such as putty, texture paint, metal powder, etc.). It is

widely used in pharmaceuticals, food,, dyes, chemicals, plastics, ceramics,

coatings, putty, mortar, and other fields.
