| Place of Origin: | CHINA |
|---|---|
| Brand Name: | EVERSUN |
| Certification: | ISO,CE |
| Model Number: | EDS |
| Minimum Order Quantity: | 1set |
| Price: | negotiable |
| Packaging Details: | Standard export wooden cases |
| Delivery Time: | within 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000set/year |
| Function: | Lift Conveying, Cooling, Drying | Advantages: | Efficient, Cost-effective, Versatile |
|---|---|---|---|
| Noise: | ≤70db | Capacity: | Varies Depending On Size And Design |
| Power Source: | Electric Or Hydraulic | Inner Diameter: | 165mm/219mm/273mm/325mm |
| Dimensions: | 4m | Body Material: | Carbon Steel,Stainless Steel316L/304 |
| Application: | Transporting Bulk Materials | Diameter Of Spiral: | 300 To 1800mm |
| Highlight: | Rubber Vibrating Feeder,Vertical Screw Elevator,Dry Cooling Particle Feeding Equipment |
||
Product description
Vertical screw feeder is an efficient and unique vertical material conveying equipment. The working principle is based on the rotating push of the spiral blade. The motor drives the spiral shaft to rotate at a high speed, and the spiral blade moves accordingly. The material enters from the bottom feed port. Under the thrust generated by the rotation of the blade, the material overcomes gravity and climbs along the spiral trajectory until it is discharged from the top discharge port. The equipment structure is simple and compact, mainly composed of spiral shaft, spiral blade, sealing groove and driving device, closed groove not only good sealing, can effectively avoid material leakage and dust flying, but also ensure the stability of the conveying process.
Working principle
Vertical screw feeder is an efficient vertical material conveying equipment. When working, the motor is energized, and the output torque is driven by the coupling to rotate the spiral shaft at high speed, and the spiral blade on the shaft rotates accordingly. The material enters from the bottom feed port, and the spiral blade produces thrust on the material during rotation due to its unique spiral structure. This thrust is broken down into components along the tangent and vertical directions of the helix, the former making the material move in a circle along the helix, and the latter pushing the material to overcome gravity and rise along the spiral trajectory. The sealing tank is restrained and guided through the whole process until the material is discharged from the top discharge port to complete the conveying.
It is compact in structure, composed of spiral shaft, blade, sealing groove and driving device, with good sealing and stable conveying. Although the conveying capacity is limited, there are requirements for materials, and there are problems such as large energy consumption and easy wear of blades, it still plays an important role with its unique advantages when conveying small particles and low-humidity materials to high places in the food, chemical, food and other industries.
Product characteristics
The vertical screw feeder has shown many outstanding characteristics and advantages in the field of material handling.
In terms of structure, it is extremely compact, only composed of spiral shaft, blade, sealing groove and drive device, occupying a small space, can flexibly adapt to various limited work sites, installation and layout are extremely convenient.
In the transportation process, the sealing tank is a highlight, good sealing to prevent material leakage, effectively inhibit dust flying, not only to ensure the integrity of the material delivery, but also greatly improve the working environment, and the whole transportation is smooth, the material is driven by the spiral blade uniform rise, minimal damage to the integrity of the material, suitable for conveying such as food, drugs and other materials with strict integrity requirements.
From the application scenario, its conveying direction is flexible, can achieve vertical lifting according to the production layout, can accurately deliver the material to the specified height position, in the food, chemical, food and other industries, conveying small particles, low humidity materials, its efficient and stable characteristics can be fully demonstrated, providing strong support for the efficient operation of the production process of the enterprise.
Product parameter
| Model | Diameter of spiral | Lifting height(m) | Speed (r/min) | Double amplitude (mm) | Power(kw) |
| CWC30 | 300 | ≤4.0 | 960 | 6-8 | 2*0.4 |
| CWC500 | 500 | ≤6.0 | 960 | 6-8 | 2*0.75 |
| CWC600 | 600 | ≤8.0 | 960 | 6-8 | 2*1.5 |
| CWC800 | 800 | ≤8.0 | 960 | 6-8 | 2*2.2 |
| CWC900 | 900 | ≤8.0 | 960 | 6-8 | 2*3.0 |
| CWC1200 | 1200 | ≤8.0 | 960 | 6-8 | 2*4.5 |
| CWC1500 | 1500 | ≤8.0 | 960 | 6-8 | 2*5.5 |
| CWC1800 | 1800 | ≤8.0 | 960 | 6-8 | 2*6.5 |
| Customized model is available | |||||

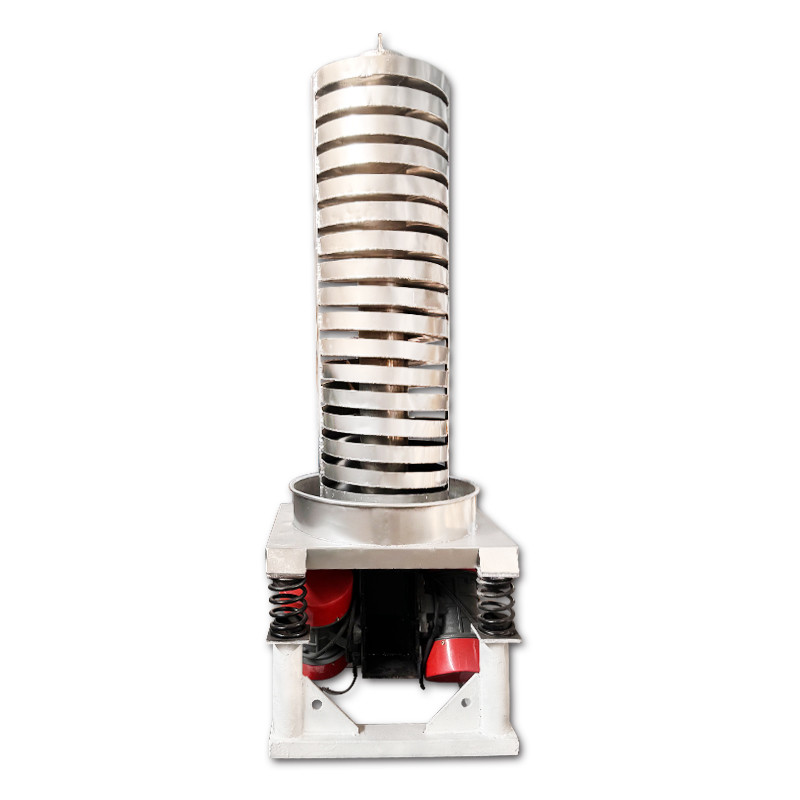

Product display

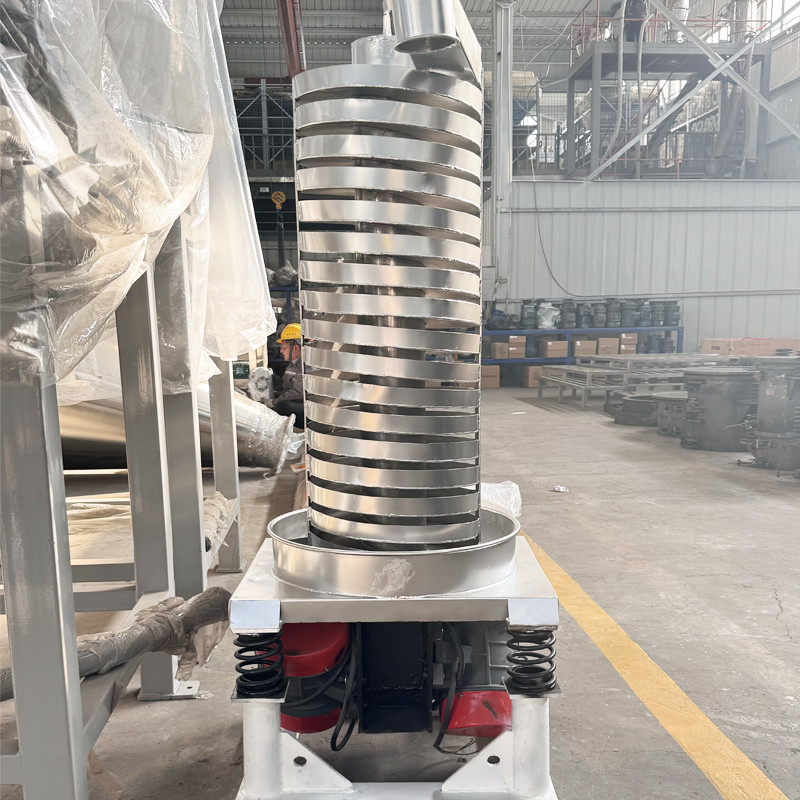

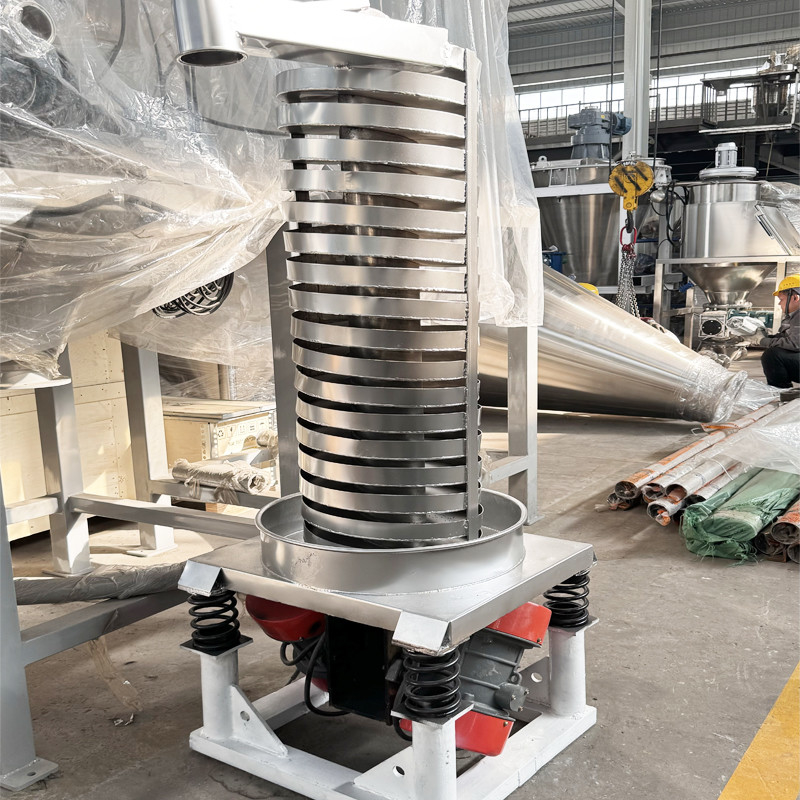

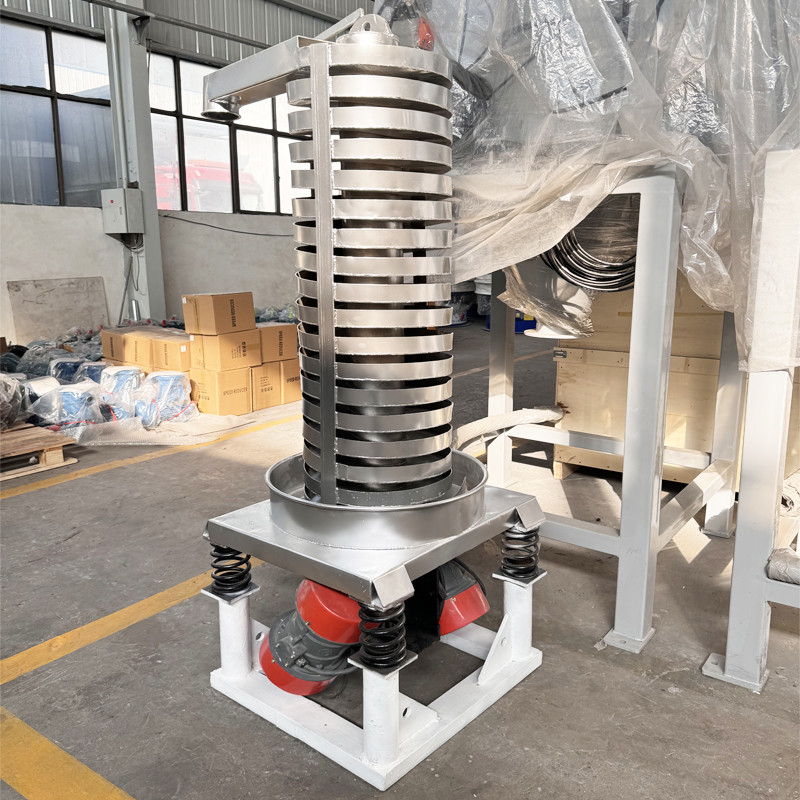

Product details
