V-shaped Dry Powder Mixer Powder Particle Stainless Steel Agitator

V-Type Mixer

Product Description

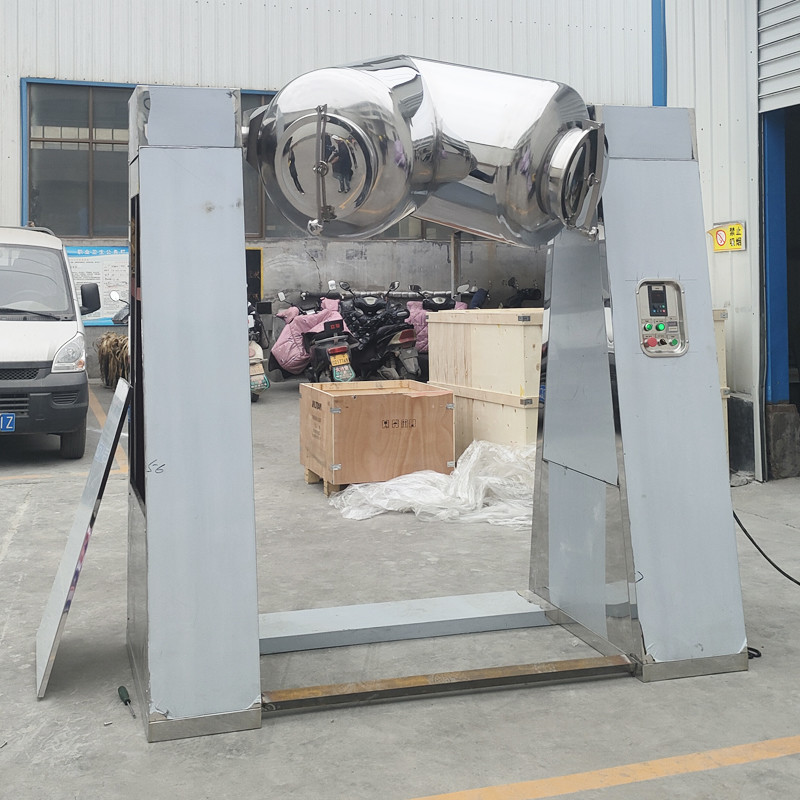

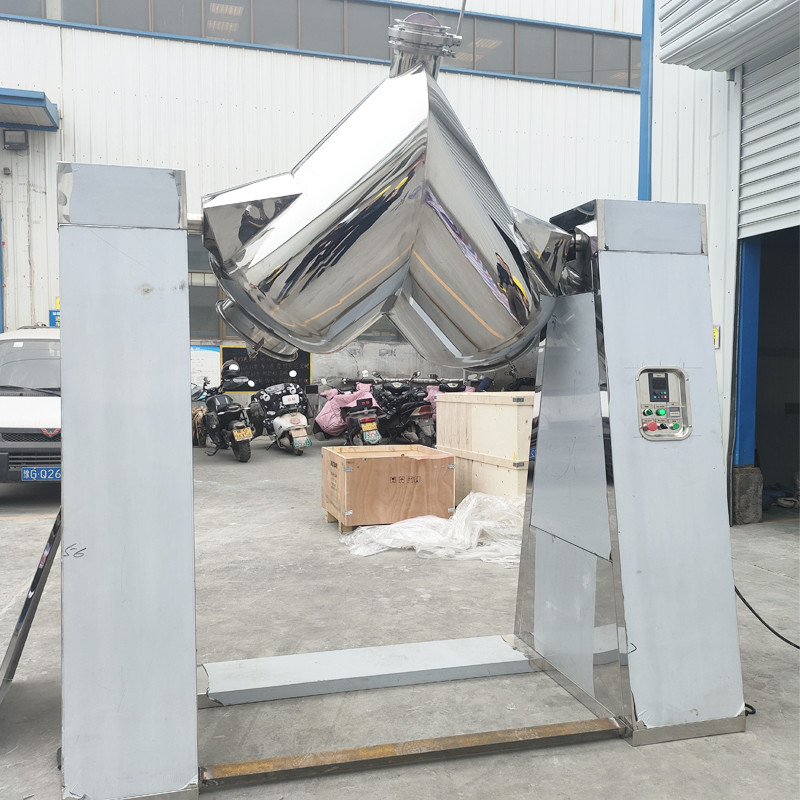

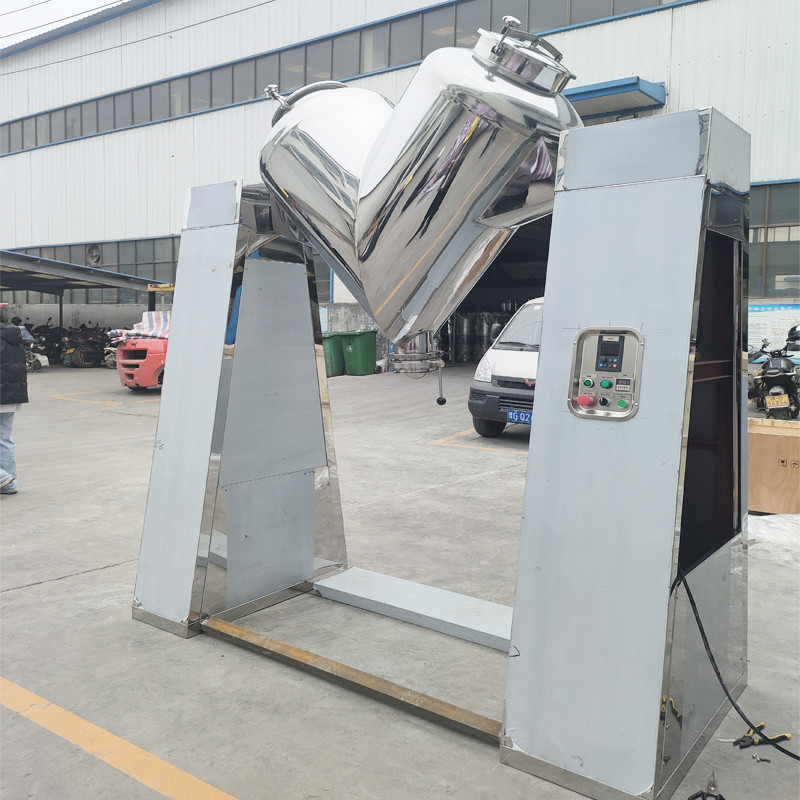

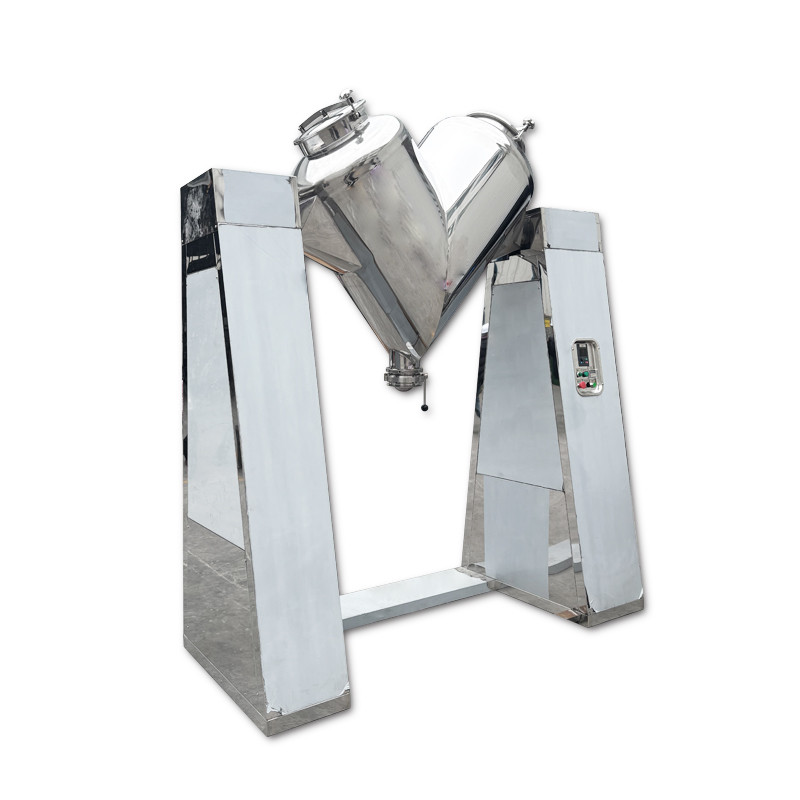

The V-shaped mixer is an efficient and practical mixing device. It consists of a unique V-shaped cavity, which rotates around a horizontal axis during. With the help of gravity and centrifugal force, the materials inside the cavity quickly roll and interweave, achieving extremely high mixing efficiency and significantly shortening the time. Its mixing uniformity is excellent, with materials in different parts continuously changing positions, meeting the needs of high-precision mixing. Moreover, since there is no stirring device, the materials naturally roll and mix, causing minimal damage to the materials, making it suitable for materials with high integrity requirements. From dry powders and gran to materials in the pharmaceutical, food, chemical, and feed industries, it can easily handle them all, and is widely used in various production scales and processes.

Working Principle

The core structure of the V-shaped mixer consists of two cylinders connected at a certain angle, forming a V-shaped cavity. At the beginning of operation, the motor drives the V-shaped cavity to rotate uniformly around the horizontal axis. The materials inside the cavity are subjected to the combined action of gravity and the centrif force generated by the rotation, and begin to move in a complex manner. When one side of the cylinder rises, the materials slide down due to gravity, while theugal force causes them to spread out towards the cylinder wall; after the cylinder is flipped, the materials are thrown into the other side of the cylinder, continuing to roll and down and interweave repeatedly. In this process, materials of different batches and properties are constantly interchanging positions, mixing and blending with each other, and finally uniform mixing, completing the efficient mixing operation.

Product features

1. High uniformity of mixing: The unique V-shaped cavity rotates, ensuring thorough mixing and intermingling of materials with different, resulting in a stable product quality.

2. Fast mixing efficiency: The motor drives the V-shaped cavity to rotate at high speed, and the materials move rapidly under combined action of gravity and centrifugal force, completing the mixing process in a short time and improving production efficiency.

3. Strong adaptability to materials: Whether it is powder, granules, or materials with different viscosities and densities, it can achieve good mixing, making it suitable for a wide range of applications.

4. wear characteristics: There is no complex stirring device inside, and the materials mix naturally during tumbling, greatly reducing mechanical wear on the materials, which is suitable for materials high requirements for particle integrity.

5. Simple and compact structure: The V-shaped cavity is composed of two cylinders, and the overall structure is simple and concise with a drive, occupying a small space and facilitating installation and maintenance.

6. Simple and easy-to-control operation: The mixing process can be started by turning on the motor, the mixing degree can be precisely regulated by controlling the motor speed and running time, with a simple and easy-to-understand operation process.

7. Convenient cleaning and maintenance There are no complicated internal parts, and the V-shaped cavity is easy to clean, reducing equipment maintenance costs and time, ensuring equipment hygiene, and meeting the production of various industries.

Product Parameters
