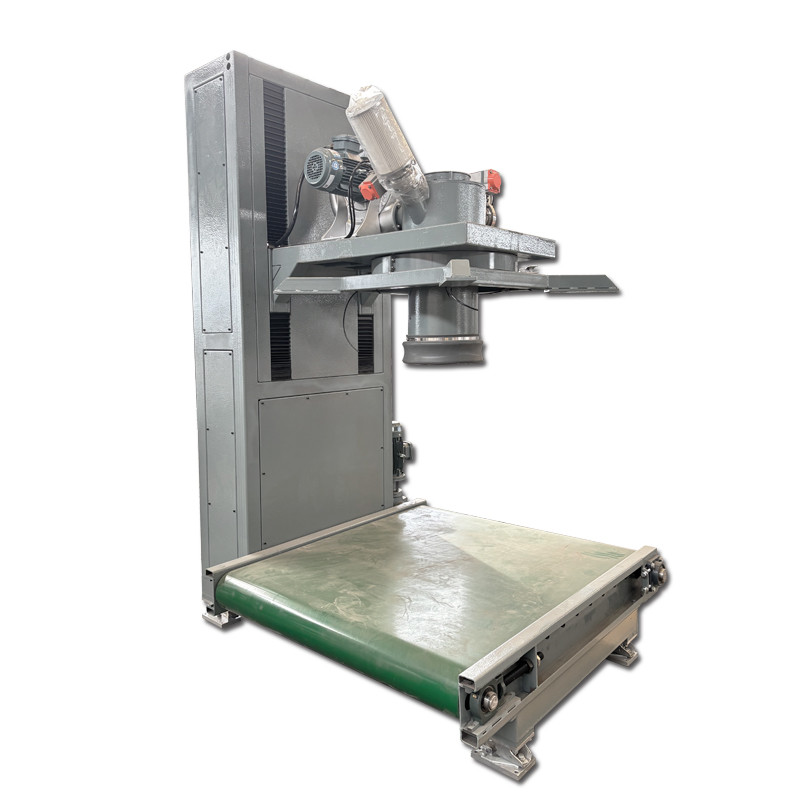

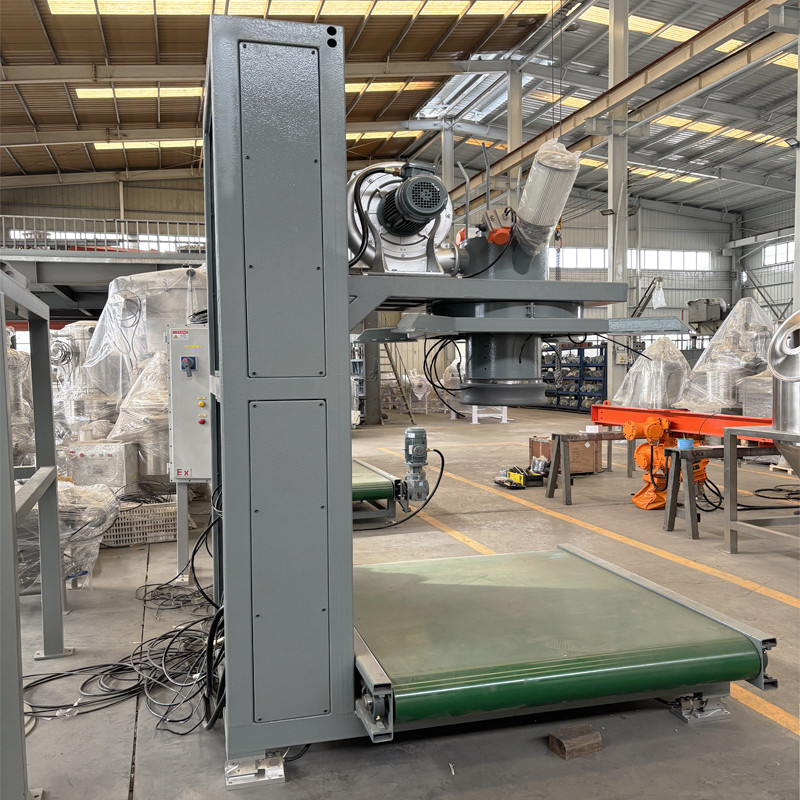

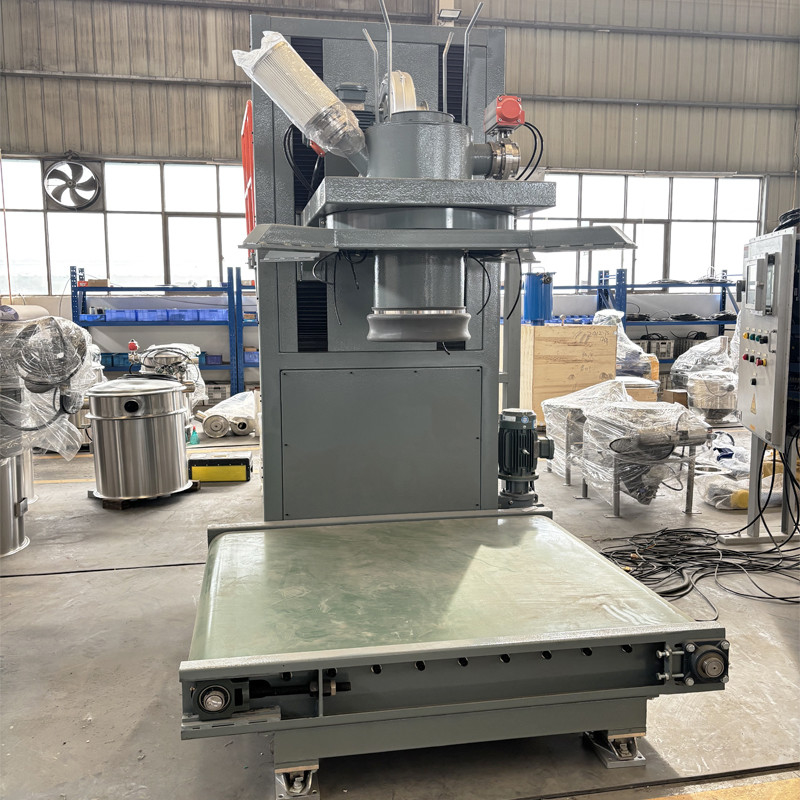

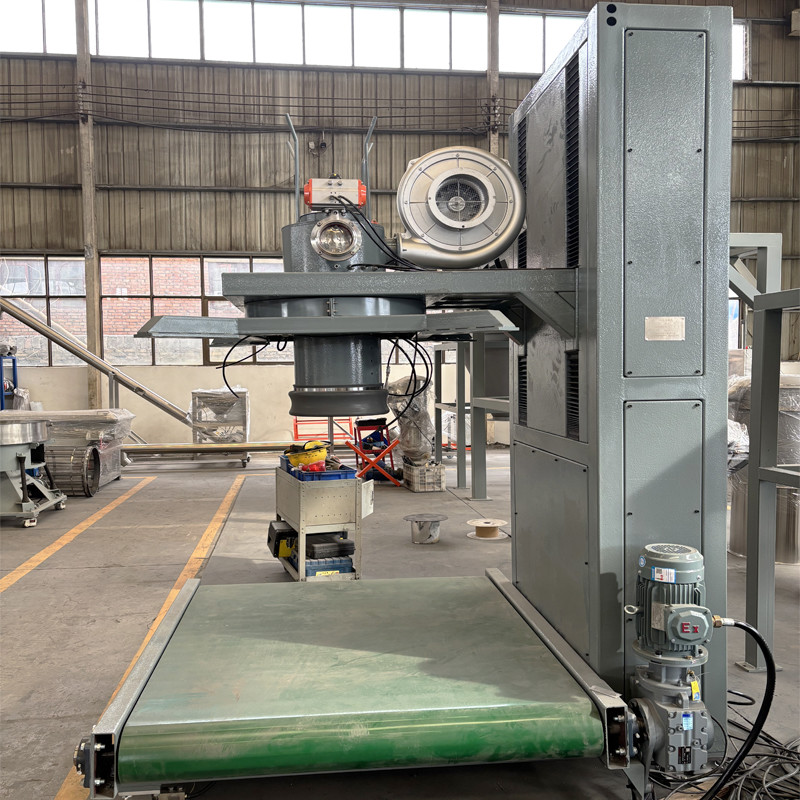

Dry Powder Sand Soil Sand Stone Ton Bag Packaging Machine Customized Stainless Steel Large Bag Filling Machine

The ton bag packaging machine is an automated packaging equipment that
integrates material conveying, metering, filling, and sealing. It can accurately and
efficiently package bulk such as minerals and chemicals into ton bags, and has
the advantages of flexible speed control, reliable electrical control, and dust
prevention and removal.


The materials are transported from the storage bin or the previous process to the
metering hopper of the ton bag packaging machine through conveying equipment
as screw conveyors and belt conveyors. The weighing device, such as a load
sensor, is installed under the metering hopper to weigh the materials entering
theing hopper in real time. When the weight of the materials reaches the preset
value, the conveying equipment automatically stops feeding to ensure the accuracy
of the weight of each of materials. The empty ton bag is placed on the bag mouth
clamping device of the packaging machine, which automatically clamps the bag
mouth, and then the bag is closed by sewing or heat sealing to prevent material
leakage. The materials in the metering hopper are slowly and evenly filled into the
ton bag through the filling device avoid material impact and overflow, ensuring the
stability and accuracy of the filling process. After filling, the packaging machine
automatically outputs the ton bag to the designated position, such the palletizing
area or the transport vehicle, through the conveying device, which is convenient for
subsequent handling and storage.



1. Customized design: Design according to the respective characteristics of powder
materials and the different requirements of the using manufacturers. The equipment
is in technology, durable, and has few consumable parts.

2. Speed control function: The feeding and packaging adopt stepless speed control,
the equipment performance is stable the packaging accuracy is high, the speed is
fast, and it can be flexibly adjusted according to the actual production needs.

3. Reliable electrical control: The programm electrical control system has a highly
reliable control process, which can achieve automatic tare, automatic zero calibration,
automatic drop correction and other functions, reduce manual intervention,
and packaging efficiency and quality.

4. Dust prevention and removal: The advanced dust prevention and removal design is
equipped with dust removal fan, suction hood and other devices, can reduce dust
pollution in the working environment and improve working conditions.

5. High-precision weighing: The weighing system uses electronic scale platform scale
metering, full panel adjustment and parameter setting, high sensitivity, strong
anti-interference ability, and the instrument is also equipped with a communication
interface, which is convenient for online networking, and be used for real-time monitoring
and network management of the packaging machine.


Powder: Quantitative packaging of medicines, chemicals, pesticides, rubber, non-metallic
materials, coatings, ceramics, etc. Such as ceramic, calcium carbonate, wettable powder,
carbon black, rubber powder, food additives, pigments, dyes, zinc oxide, medicines, etc.
Granules Medicines, fine chemical particles, plastic particles, PET polyester, rice, feed,
compound fertilizer, etc.
